On Automating Image Compression

Figma's png export defaults are too heavy

This website is heavy. It's a personal portfolio of my work and shows big images because I want to show off a lot of detail in each piece. Over the years it's added up and some of the pages are not as fast as they should be. We're talking 100+ images that add up to well over 50MB total. It's not the end of the world, but it isn't great.

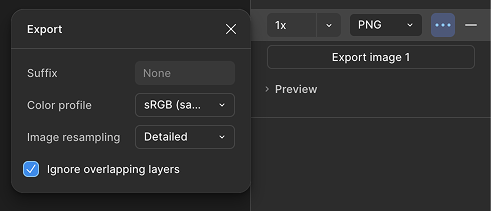

Part of the problem is that when you export images from Figma (my main design tool), the PNG compression that they use by default is not great. Figma gives you two options:

Not great.

Historically, I've then manually imported the exported images into another application and re-exported them so that I can get them down another 50-60%. It's a hassle and sometimes I skip it because the laundry list of to-dos is big and I'm short on time.

The truth is that unless I automate this, I'm going to end up always chasing my tail. So, let's do that.

I recently poked around some command-line tools for compression. There are a lot of options, but the best seem to be pngquant and jpegoptim. They are fairly cross-platform and free. Both big bonuses in my book.

I want to use CLI tools because they:

• Work across entire projects, not one file at a time
• Are easy to automate (CI, build scripts, pre-deploy steps)
• Produce consistent, repeatable results
• Are not GUI tools which means no manual exporting required

Compressed using pngquant - 59,449 bytes

Step 1: Install the Tools

macOS (Homebrew)

brew install pngquant jpegoptim

Linux

Ubuntu / Debian:

sudo apt update
sudo apt install pngquant jpegoptim

Fedora:

sudo dnf install pngquant jpegoptim

Arch:

sudo pacman -S pngquant jpegoptim

You can then verify installation with:

pngquant --version
jpegoptim --version

Step 2: Compress PNGs

Single PNG file compression

pngquant --quality=65-85 --force --ext .png image.png

Recursively compress all PNGs in a project

find ./website-folder -type f -name "*.png" -exec pngquant --skip-if-larger --ext .png --quality=65-85 {} \;

This command recursively finds all PNG files, compresses them in place, preserves filenames, and applies a quality range suitable for most web UI and illustration assets. It will skip the file if larger, meaning that it won't try to recompress files that it has already compressed.

Step 3: Compress JPGs

Single JPG file compression

jpegoptim --strip-all --max=85 image.jpg

Recursively compress all JPGs in a project

find ./website-folder \( -iname "*.jpg" -o -iname "*.jpeg" \) -type f -exec jpegoptim --strip-all --max=85 {} \;

--max=85 applies strong compression with minimal visual loss, while --strip-all removes EXIF and metadata. Files are overwritten in place.

Optional: Parallel Processing!

Parallel execution is especially useful on Linux servers and modern multi-core Macs.

# PNGs
find ./website-folder -type f -name "*.png" -print0 \
  | xargs -0 -P 4 pngquant --force --ext .png --quality=65-85

# JPGs
find ./website-folder \( -iname "*.jpg" -o -iname "*.jpeg" \) -type f -print0 \
  | xargs -0 -P 4 jpegoptim --strip-all --max=85

Increase the -P value based on available CPU cores. These commands are safe for CI runners and build servers.

Optional: Skip Small Images

You can avoid processing files that won’t meaningfully benefit from compression.

# PNGs larger than 50KB
find ./website-folder -type f -name "*.png" -size +50k \
  -exec pngquant --force --ext .png --quality=65-85 {} \;

# JPGs larger than 50KB
find ./website-folder \( -iname "*.jpg" -o -iname "*.jpeg" \) -type f -size +50k \
  -exec jpegoptim --strip-all --max=85 {} \;

Integrating Image Compression into CI/CD

Image compression works best when it is automated. By running optimization in your CI pipeline, you ensure that all images merged into your main branch are consistently compressed without relying on manual developer steps.

Basic CI Strategy

• Install image optimization tools in the CI environment
• Run compression as part of the build or pre-deploy step
• Fail or warn if unoptimized images are detected (optional)

Most Linux-based CI runners (GitHub Actions, GitLab CI, Bitbucket, Netlify) support pngquant and jpegoptim out of the box.

Example: GitHub Actions

name: Optimize Images

on:
  pull_request:
  push:
    branches: [main]

jobs:
  compress-images:
    runs-on: ubuntu-latest

    steps:
      - name: Checkout repository
        uses: actions/checkout@v4

      - name: Install image tools
        run: |
          sudo apt update
          sudo apt install -y pngquant jpegoptim

      - name: Compress PNGs
        run: |
          find ./website-folder -type f -name "*.png" \
            -exec pngquant --force --ext .png --quality=65-85 {} \;

      - name: Compress JPGs
        run: |
          find ./website-folder \( -iname "*.jpg" -o -iname "*.jpeg" \) -type f \
            -exec jpegoptim --strip-all --max=85 {} \;

This workflow ensures that all images committed to the repository are optimized before deployment.

CI Optimization Tips

• Run compression only on changed files to speed up builds
• Pair with version control so diffs clearly show size reductions
• Use parallel execution for large asset directories
• Consider failing the build if images exceed a size threshold

Once integrated into CI, image optimization becomes a default behavior rather than a manual cleanup step, leading to consistently faster builds and better performance in production. Who doesn't want that, right?
