Isotonic and minimally invasive optical clearing media for live cell imaging ex vivo and in vivo

Main

Live biological tissues are dynamic by nature. Thanks to various chemical and genetically encoded fluorescent biosensors, we can image and measure dynamic biological phenomena within the live tissues and organs using fluorescence microscopy. However, the imaging depth is often limited by tissue opacity. It has been a long-standing challenge to make live and healthy biological tissues transparent to facilitate live imaging.

The opacity of the biological tissues is largely due to the inhomogeneity of refractive index within the samples. Two-photon microscopy uses a near-infrared excitation laser instead of visible light to reduce light scattering; however, the imaging depth is limited to a few hundred microns in mammalian tissues in vivo¹. Adaptive optics uses a deformable mirror or spatial light modulator to correct aberrations caused by macroscopic refractive index distortions, but it is not effective for highly scattering samples². For fixed tissues, optical clearing is a powerful approach: light refraction and scattering are minimized by removing high-index components (for example, lipids) and/or by immersing the sample in high-index solutions with refractive indices of 1.43–1.55 (refs. ^{3,4,5,6,7,8,9,10,11,12,13}). However, most of the clearing agents developed for fixed tissues are toxic to live cells. Less toxic chemicals (for example, glycerol, dimethyl sulfoxide and sugars) have been tested for highly fibrous extracellular structures, such as skin and skull in vivo^{14,15,16,17,18,19}; however, these chemicals interfere with cellular functions. A recent study claimed to have achieved optical clearing of the skin in live animals using a strongly absorbing dye, such as tartrazine¹⁸. However, the osmolality of the dye solutions used in the study was several-fold higher than the physiological osmolality condition, precluding its application to live imaging of normal physiological functions. Therefore, live mammalian cells and tissues have not yet been rendered transparent while maintaining intact cellular functions.

Some chemicals have been proposed to be compatible with live cell imaging. Iodinated contrast agents were attractive candidates because of their low osmolarity. One of them, iodixanol, improves the transparency of bacteria and some multicellular organisms^20,21. However, its toxicity to mammalian cells has not been fully evaluated. Another study attempted to improve transparency of the mouse brain by adding glycerol to drinking water²². However, it is unclear whether the marginal change in transparency was due to an increase in the refractive index in the brain, as glycerol should be easily metabolized once absorbed in the gut.

Here we developed SeeDB-Live, a tissue-clearing medium for live mammalian cells and tissues. SeeDB-Live contains bovine serum albumin (BSA), which has exceptionally low osmolarity when dissolved in water and is minimally invasive to live cells. SeeDB-Live improved the imaging depth of spheroids, organoids, acute brain slices and the mouse brain in vivo.

Results

Strategies for minimally invasive optical clearing of live mammalian cells

Light scattering in tissues is caused by refractive index mismatch between the light scatterer and the medium. Previously, simple immersion-based clearing agents (refractive index, 1.46–1.52) have been developed (for example, fructose, iohexol and tartrazine)^8,9,18; however, osmolarity of these clearing agents is extremely high. To make live tissues transparent under isotonic conditions, we would have to use either (i) membrane-permeable or (ii) membrane-impermeable low-osmolarity (that is, high molecular weight) chemicals to reduce the refractive index mismatch (Fig. 1a). For (i) membrane-permeable chemicals, we do not need to change the concentration of the saline; however, when (ii) membrane-impermeable chemicals are added to the medium, we would need to subtract the concentration of the saline to keep the medium isotonic. We have listed membrane-permeable and membrane-impermeable high-molecular-weight chemicals as candidates. Candidate chemicals also need to be highly soluble in water. These chemicals demonstrated a concentration-dependent increase in refractive index when dissolved in water (Extended Data Fig. 1a).

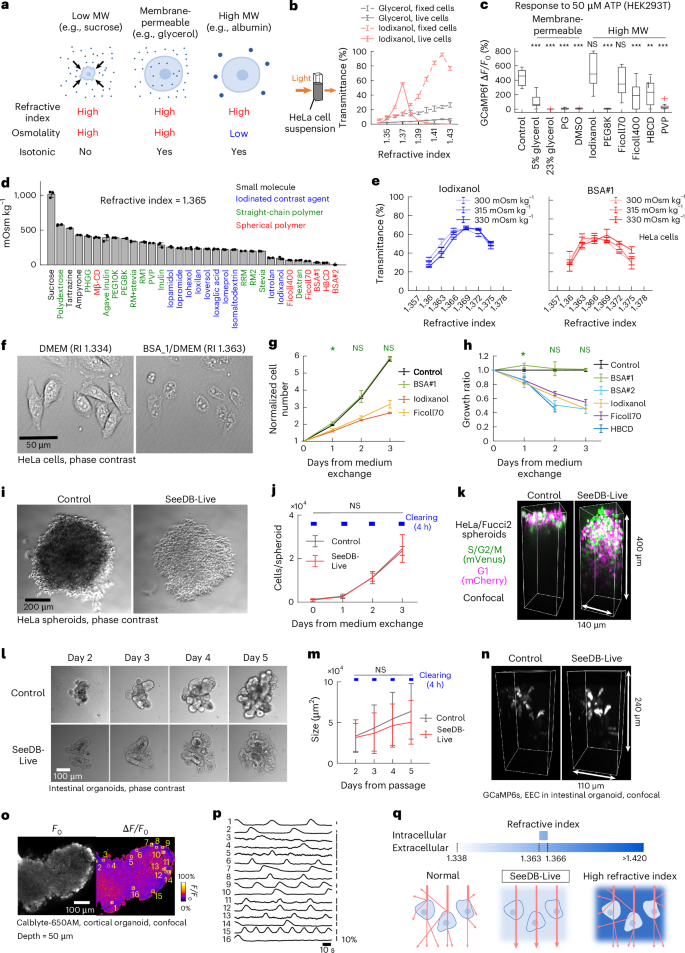

**Fig. 1: Screening for nontoxic optical clearing agents for imaging live mammalian cells and tissues.**

Next, we sought to determine the optimal refractive index for clearing live mammalian cells. For this purpose, we prepared a suspension of live or paraformaldehyde (PFA)-fixed and membrane-permeabilized HeLa cells (4 × 10⁶ cells per ml). The refractive indices of media used to clear fixed tissues are typically 1.43–1.55 (ref. ¹⁰). We tested a membrane-permeable chemical, glycerol, up to a refractive index of 1.43 (~66% wt/vol); however, it was not effective for live mammalian cells (Fig. 1b). We also tested a membrane-impermeable chemical, iodixanol; to keep the osmolarity of the buffer isotonic, we mixed isotonic iodixanol solution (60% wt/vol) and phosphate buffered saline (PBS) to prepare isotonic solutions with different refractive indices. PFA-fixed and membrane-permeabilized HeLa cells were most transparent at a refractive index of ~1.42. Paradoxically, however, we found that the live HeLa cells become most transparent at an extracellular refractive index of ~1.37, much lower than the optimal index for fixed cells (Fig. 1b). Moreover, the optimal range of the refractive index for live cells was relatively narrow; the transparency of live cells became lower at higher refractive indices (>1.38).

We next examined whether intracellular functions remain intact in the presence of candidate chemicals. Using the GCaMP6f calcium indicator, we evaluated the calcium responses of HEK293T cells to 50 μM ATP solution under various clearing media at a refractive index of 1.365 (Fig. 1c and Extended Data Fig. 1b,c). Calcium responses were completely abolished in the presence of membrane-permeable chemicals, glycerol (23% wt/vol), dimethyl sulfoxide (DMSO) and propylene glycol, while a lower concentration of glycerol (5%) showed weak responses. These results indicate that membrane-permeable clearing agents impair cellular functions at a refractive index of 1.365. Among the membrane-impermeable, high-molecular-weight chemicals, straight polymers abolished calcium responses (for example, polyethylene glycol and polyvinyl pyrrolidone). In contrast, intact calcium responses were observed for iodinated contrast agents (for example, iodixanol) and spherical polymers (for example, Ficoll70). These results indicate that some of the membrane-impermeable, high-molecular-weight chemicals could be useful for index matching of the extracellular medium without compromising cellular functions.

Screening and optimization of low-osmolarity and nontoxic clearing agents

Membrane-impermeable chemicals will not directly interfere with intracellular functions but may increase osmolarity. To keep the clearing medium isotonic, we would have to reduce the concentration of the saline; however, the extracellular ionic conditions would affect membrane properties. Therefore, the ideal chemical should have a low osmolarity when dissolved in water to achieve the optimal refractive index. The increase in osmolarity can be minimized if we use high-molecular-weight chemicals (>1 kDa); however, extremely large particles (>10-nm scale) will cause Rayleigh scattering.

We measured the osmolality of the candidate media prepared at a refractive index of 1.365. Straight-chain polymers had prohibitively high osmolalities, much higher than the theoretical values based on molar concentrations²³; the higher osmolality may explain why straight-chain polymers showed cellular toxicity (Fig. 1c and Extended Data Fig. 1c). In contrast, we found that spherical polymers (polymers with highly branched and/or higher-order structures) have much lower osmolalities (Fig. 1d). Among them, low-salt BSA (BSA#2) demonstrated exceptionally low osmolality of only 2.7 mOsm kg⁻¹, consistent with its molar concentration (2.3 mM; Fig. 1d and Extended Data Fig. 1d). Slightly higher osmolarity for another BSA product (BSA#1) was due to residual salts in the product (Extended Data Fig. 1e), suggesting that BSA itself has very low osmolality.

The osmolarity of the human serum is typically 280–290 mOsm l⁻¹. The osmolarity of the saline buffers and culture media for mammalian cells is 230–340 mOsm l⁻¹, but is typically 300–330 mOsm l⁻¹. For both iodixanol (control) and BSA, we further refined the optimal refractive index for this range. We prepared PBS at 300 mOsm kg⁻¹, 315 mOsm kg⁻¹ and 330 mOsm kg⁻¹ with refractive indices of 1.360–1.375 using iodixanol or BSA. The highest transparency was found at refractive indices of 1.363–1.369 when prepared at 300–330 mOsm kg⁻¹ (Fig. 1e and Extended Data Fig. 1f). The best refractive index was higher at higher extracellular osmolarity, likely because the cytosol is more condensed. When live HeLa cells were incubated with BSA-containing medium (refractive index, 1.363), the plasma membrane was almost invisible under the phase contrast microscopy (Fig. 1f).

Using index-optimized isotonic culture medium, we evaluated long-term toxicity using HeLa cells. Cell growth was monitored for up to 3 days. Cell growth was comparable to the control DMEM for one of the BSA products (BSA#1; Fig. 1g,h and Extended Data Fig. 1g,h,m,n). However, cell growth was lower for iodixanol, highly branched cyclic dextrin, Ficoll70 and some of the BSA products (Fig. 1g,h and Extended Data Fig. 1g,i).

BSA is also preferable in terms of lower viscosity (Extended Data Fig. 1j,k) and specific gravity (Extended Data Fig. 1l). Culture with iodixanol is difficult because the specific gravity of the cell is lower than that of the iodixanol solution, and cells easily detach and float in the medium²⁰. Other proteins may be similarly useful; however, BSA has exceptional water solubility and is one of the most affordable proteins available. In addition, albumin is the most abundant protein in the serum (4–5% wt/vol) and has been widely used for mammalian cell culture, suggesting that BSA is minimally adverse to the mammalian cells.

Albumin buffers divalent cations (for example, Ca²⁺ and Mg²⁺)^24,25. We, therefore, optimized the total concentration of Ca²⁺ and Mg²⁺ in the media to keep the concentrations of free Ca²⁺ and Mg²⁺ physiological; the optimal total concentration was 1.5–3-fold higher than in the conventional artificial cerebrospinal fluid (ACSF) based on the evaluation in neurons (Extended Data Fig. 2a,b). Earlier biochemical studies indicated that a half of Ca²⁺ and Mg²⁺ binds to BSA in this condition, consistent with our results^24,26. Because BSA substantially contributes to the negative charge of the buffer, we also evaluated the acceptable range of Na⁺ and Cl⁻ concentrations (Extended Data Fig. 2c–e). Primary cultures of mouse cardiomyocytes (Extended Data Fig. 3a–c) and hippocampal neurons (Extended Data Fig. 3d–g) were maintained in the BSA-containing culture medium for at least 3 days without any obvious signs of toxicity.

In this way, we established BSA-containing clearing media (15–17% wt/vol) for live mammalian cells, named SeeDB-Live, with optimal refractive index (1.363–1.366), osmolality (230–340 mOsm kg⁻¹) and total Ca²⁺ and Mg²⁺ concentrations (4–6 mM and 1.5–2.5 mM, respectively) with saline or culture medium (Supplementary Tables 1 and 2). The concentration of BSA in SeeDB-Live is only twice as high as the total protein concentration in the serum (typically 6–8% wt/vol).

Recently, strongly absorbing dyes (for example, tartrazine and ampyrone) have been shown to clear the mouse skin^18,27, but they work only under prohibitively high osmolality conditions. Under physiological osmolality conditions (~300 mOsm kg⁻¹), they have lower refractive indices and cannot effectively clear live cells (Fig. 1d and Extended Data Fig. 3h–k). Another recent study increased refractive index of the extracellular media by only 0.01 using polymer solutions (6% polyethylene glycol (PEG) and 4% dextran)²⁸; however, the refractive index of 1.34–1.35 was far below the optimal range for live mammalian cells (Fig. 1b and Extended Data Fig. 3k). Thus, SeeDB-Live is currently the only method that achieves optical transparency of live, healthy mammalian cells.

Fluorescence imaging of live spheroids and organoids with SeeDB-Live

We examined whether SeeDB-Live is useful for fluorescence imaging of multicellular structures. We cleared cultured HeLa/Fucci2 cell spheroids²⁹ with SeeDB-Live; the spheroids became quickly transparent without apparent shrinkage or expansion under SeeDB-Live (Fig. 1i and Supplementary Video 1). Growth of HeLa/Fucci2 spheroids was slightly slower when continuously cultured in SeeDB-Live, possibly due to lower circulation of oxygen (Extended Data Fig. 4a)³⁰. However, daily clearing with SeeDB-Live for 4 h per day did not affect the growth of the spheroid culture (Fig. 1j). In the confocal microscopy, mVenus and mCherry signals were visible up to ~100 μm in depth in the control medium; in contrast, signals were visible up to ~250 μm in the SeeDB-Live medium (Fig. 1k, Extended Data Fig. 4b–d and Supplementary Video 2). The brightness of the signals was improved particularly in the deeper area of the spheroids (Extended Data Fig. 4d).

Next, we tested SeeDB-Live for imaging intestinal organoids cultured in Matrigel. Intestinal organoids were developed from ePet-Cre; Ai162 mice, in which enteroendocrine cells (EECs) express a calcium indicator, GCaMP6s. The intestinal organoids became transparent after the incubation in SeeDB-Live (Fig. 1l), and the organoid growth was not affected by daily 4-h clearing with SeeDB-Live (Fig. 1m). The luminal cavity of the organoid was less transparent, suggesting that BSA does not efficiently penetrate the tight junctions formed by the epithelial tissues. Nonetheless, the GCaMP6s-positive EECs were visible in deeper areas under SeeDB-Live using confocal microscopy (Fig. 1n and Extended Data Fig. 4e). Calcium imaging demonstrated robust responses to high potassium stimulation, indicating that their physiological functions are maintained (Extended Data Fig. 4f). We also tested SeeDB-Live for confocal calcium imaging of the neuroepithelial and cortical organoids induced from mouse embryonic stem cells (Fig. 1o,p and Extended Data Fig. 4g–j)³¹. Thus, SeeDB-Live will be useful for functional assays of organoids.

Together, our results indicate that the light scattering in live cells can be greatly reduced by index matching between the cytosol (1.363–1.366) and the extracellular medium. Index matching of the extracellular medium with isotonic medium with BSA (SeeDB-Live) is minimally invasive and powerful for optical clearing of live mammalian tissue (Fig. 1q).

Clearing acute brain slices with SeeDB-Live

Volume imaging is in high demand for neuroscience applications. Perfusion with SeeDB-Live/ACSF cleared acute brain slices within 30 min (Fig. 2a–c and Supplementary Video 3). We evaluated the performance of SeeDB-Live using acute brain slices from Thy1-YFP-H mice. After the recovery of acute brain slices in oxygenated ACSF, confocal and two-photon images were acquired. The brain slices containing the cerebral cortex were then perfused with SeeDB-Live/ACSF for 1 h and imaged again under the same conditions. The imaging depth was increased ~2-fold for both confocal and two-photon microscopy under SeeDB-Live (Fig. 2d,e and Supplementary Videos 4 and 5). Similar results were obtained for the hippocampus (Extended Data Fig. 5a–c and Supplementary Videos 6 and 7). The optimal refractive index of SeeDB-Live was ~1.363 in acute brain slices (Extended Data Fig. 5d), consistent with our results for cultured cell data (Fig. 1h). We did not observe improved transparency with 5% glycerol ex vivo, contrary to a previous report in vivo (Extended Data Fig. 5f, g)²².

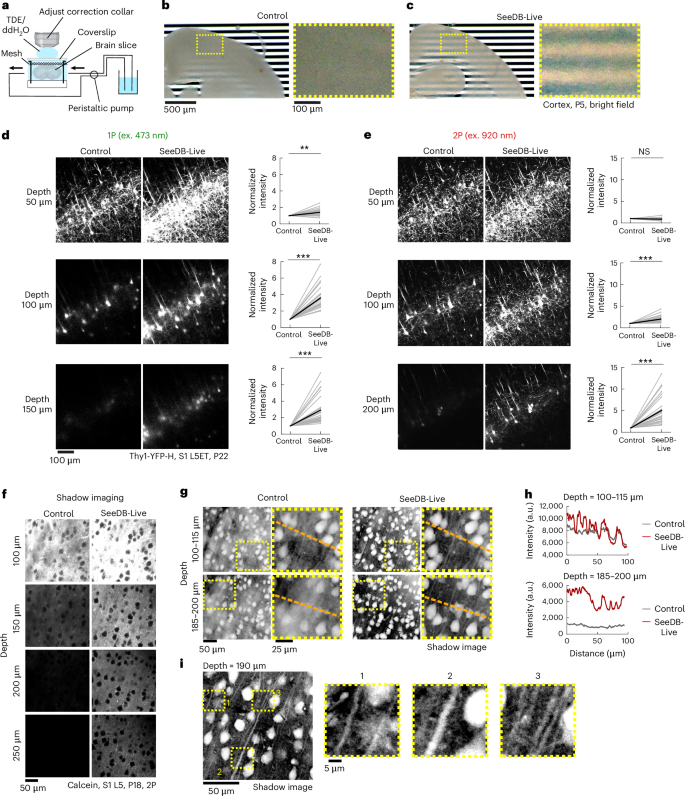

**Fig. 2: Improved morphological imaging of acute brain slices with SeeDB-Live.**

Previously, shadow imaging of organotypic brain slice cultures with super-resolution, confocal and two-photon microscopy have been proposed for comprehensive structural imaging of the brain, including dense connectomics applications^32,33,34; in these techniques, the extracellular space of the brain slices is labeled with a dye solution (for example, calcein). The shadow images visualize the structure of all components in the tissue, allowing for comprehensive structural profiling. Previously, these techniques can only access the surface of the brain slices due to the light scattering. However, the surface of the brain slices (~50 μm) is often mechanically damaged during slice preparation (Extended Data Fig. 5e), making it difficult to image ‘acute’ brain slices that represent native in vivo structure. Using SeeDB-Live, the imaging depth possible for the shadow imaging was much improved with two-photon microscopy (Fig. 2f and Supplementary Video 8). Inverse look-up table images demonstrated morphology of all the cells at higher signal-to-noise ratio under SeeDB-Live (Fig. 2g–i). Thus, SeeDB-Live facilitates comprehensive structural imaging of acute brain slices.

Electrophysiological properties of neurons cleared with SeeDB-Live

For comprehensive recording of neuronal activity with SeeDB-Live, it is important to ensure that neuronal functions remain intact. Using acute mouse brain slices (age, P15–18), we examined membrane properties of layer 5 extratelencephalic-projecting (L5ET) neurons using patch-clamp recording (Fig. 3a and Extended Data Fig. 6a–e). We found that liquid junction potentials are different between ACSF (13.04 mV ± 0.20 mV) and SeeDB-Live/ACSF (9.19 mV ± 0.09 mV; Extended Data Fig. 6a). After calibration for the liquid junction potentials, there was no significant difference in the resting membrane potential of L5ET neurons (−76.3 mV ± 2.9 mV for the ACSF and −75.2 mV ± 3.1 mV for SeeDB-Live/ACSF; mean ± s.d.; P = 0.33, Wilcoxon rank-sum test; Fig. 3b). Some of the electrophysiological parameters were slightly affected (Fig. 3b and Extended Data Fig. 6e). However, the firing properties in the frequency–current curve were not affected, possibly because differences in some factors counteracted each other (Fig. 3c). We obtained consistent results in older animals (Extended Data Fig. 6f,g) and for fast-spiking interneurons (Extended Data Fig. 6h–l).

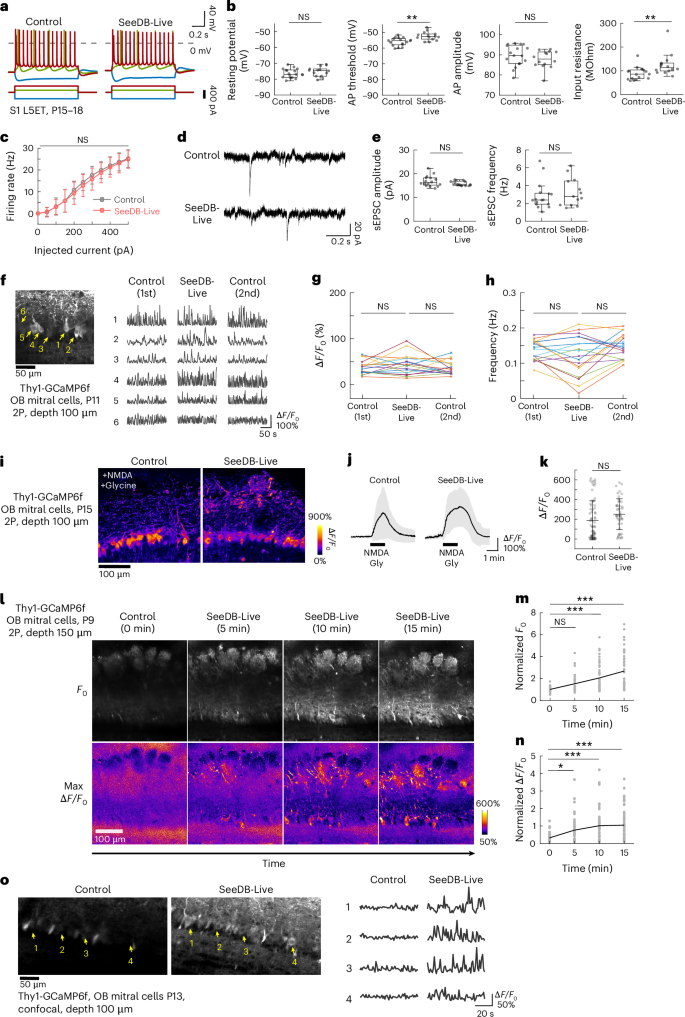

**Fig. 3: Electrophysiological recording and calcium imaging of neurons in acute brain slices.**

Patch-clamp recording under SeeDB-Live was extremely difficult because brain slices were almost transparent. We cannot exclude the possibility that unintentional sampling bias has contributed to the difference. It should also be noted that the ionic composition of SeeDB-Live is not identical to that of the control ACSF. The total amount of Ca²⁺ and Mg²⁺ is adjusted higher (Extended Data Fig. 2a,b). Cl⁻ concentration is slightly lower because BSA substantially contributed to the net negative charge (Extended Data Fig. 2c,d). BSA may also show the Donnan effect. These factors potentially affect the electrophysiological properties, and further optimization might be needed for more specific experiments.

Calcium imaging of brain slices with SeeDB-Live

We next evaluated population-level properties of neurons using slice calcium imaging. We used olfactory bulb slices (P11–15), in which mitral/tufted cells show spontaneous activity³⁵. We used Thy1-GCaMP6f mice, in which mitral/tufted cells express GCaMP6f. We imaged mitral cells with two-photon microscopy at a depth of ~100 μm. The frequencies of spontaneous activity were not significantly different between control and SeeDB-Live when Ca²⁺/Mg²⁺ concentrations were optimized (Fig. 3f–h, Supplementary Tables 3 and 4 and Supplementary Video 9; but see also Extended Data Fig. 2a,b for non-optimized conditions). In contrast, spontaneous activity was no longer maintained in the glycerol or iodixanol-containing ACSF (Extended Data Fig. 6m–q). Evoked responses (to 100 μM N-methyl-D-aspartate (NMDA) and 40 μM glycine) of mitral cells were also comparable between control and SeeDB-Live (Fig. 3i–k). Time-lapse imaging of a deeper area (150-μm depth) demonstrated a significant improvement in brightness and ΔF/F₀ by SeeDB-Live/ACSF treatment (Fig. 3l,m, Supplementary Tables 3 and 4 and Supplementary Video 10).

Notably, spontaneous activity of mitral cells was clearly visible with one-photon confocal microscopy at a depth of 100 μm under SeeDB-Live, but not with control ACSF (Fig. 3o and Supplementary Videos 11 and 12). It should be noted that the superficial ~50 μm of acute brain slices is typically damaged during sample preparation, and intact neuronal activity is only visible in deeper areas, where only two-photon microscopy can access under the normal ACSF. Thus, SeeDB-Live enables calcium imaging of healthy neuronal activity in acute brain slices using conventional confocal microscopy, without using two-photon microscopy systems.

Optical clearing of cerebral cortex in vivo

SeeDB-Live is based on index matching with a membrane-impermeable molecule, BSA. Therefore, the performance of clearing is limited by the accessibility of BSA to the tissues. To clear the mouse brain in vivo in live animals, we performed a craniotomy at the primary somatosensory cortex (S1) and removed the dura mater (durotomy) under anesthesia. We then exposed the brain surface to SeeDB-Live/ACSF with gentle perfusion, allowing BSA to permeate into the CSF of the brain (Fig. 4a). We confirmed that fluorescently tagged BSA was infused to a depth of ~500 μm from the surface of the cerebral cortex (Fig. 4b,c). We used a transgenic line, Thy-YFP-H, in which L5ET neurons are labeled with EYFP. Under two-photon microscopy, overall brightness of EYFP signals was increased in the deeper area after incubation with SeeDB-Live for 1 h (Fig. 4d–f and Supplementary Video 13). Their basal dendrites, including dendritic spines, were better visualized with SeeDB-Live (Fig. 4g,h). The brightness of L5ET somata, located at a depth of 600–800 μm, was increased ~3-fold by SeeDB-Live treatment (Fig. 4i,j and Supplementary Video 14). The cleared part returned opaque once SeeDB-Live is diluted by the CSF circulation and/or by active washout with ACSF (Fig. 4k). Thus, SeeDB-Live is a powerful tool for in vivo imaging of live neurons in the brain.

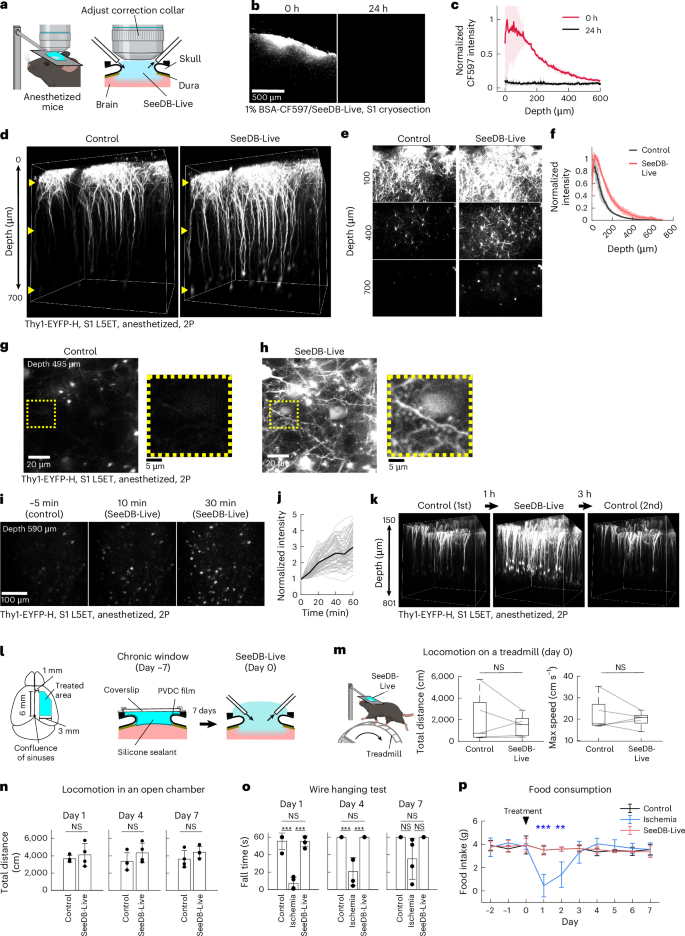

**Fig. 4: Optical clearing of the mouse brain in vivo with minimal toxicity.**

We examined possible toxicity of SeeDB-Live in vivo using a large cranial window on the right cortical surface (Fig. 4l). Acute SeeDB-Live treatment of the right cortex, including motor cortices, in awake animals did not affect locomotor activity on a treadmill (Fig. 4m). Moreover, SeeDB-Live treatment did not affect locomotor activity, motor function (wire hanging test) and food intake on consecutive days (Fig. 4n–p). We observed no obvious sign of the inflammatory responses in the brain (for example, the number and morphology of neurons and microglia) after clearing with SeeDB-Live (Extended Data Fig. 7). Thus, SeeDB-Live treatment does not induce acute or chronic toxicity in animals.

In vivo functional imaging of neurons with SeeDB-Live and two-photon microscopy

Next, we investigated whether sensory responses are preserved after SeeDB-Live treatment in vivo. We performed a durotomy in the primary visual cortex (V1) and compared the visual responses of layer 4 neurons before and after SeeDB-Live treatment (Fig. 5a), assuming that layer 4 is adequately infused with SeeDB-Live (Fig. 4b,c). Using calcium indicators jGCaMP8m and Cal-520, we recorded the calcium responses of the same sets of neurons to visual grating stimuli of different orientations under anesthesia (Fig. 5a–e and Extended Data Fig. 8a–e). We found that the preferred orientation, response amplitude (ΔF/F₀), orientation selective index (OSI) and tuning width of layer 4 neurons were largely preserved (Fig. 5c–e). Thus, SeeDB-Live preserves physiological sensory responses.

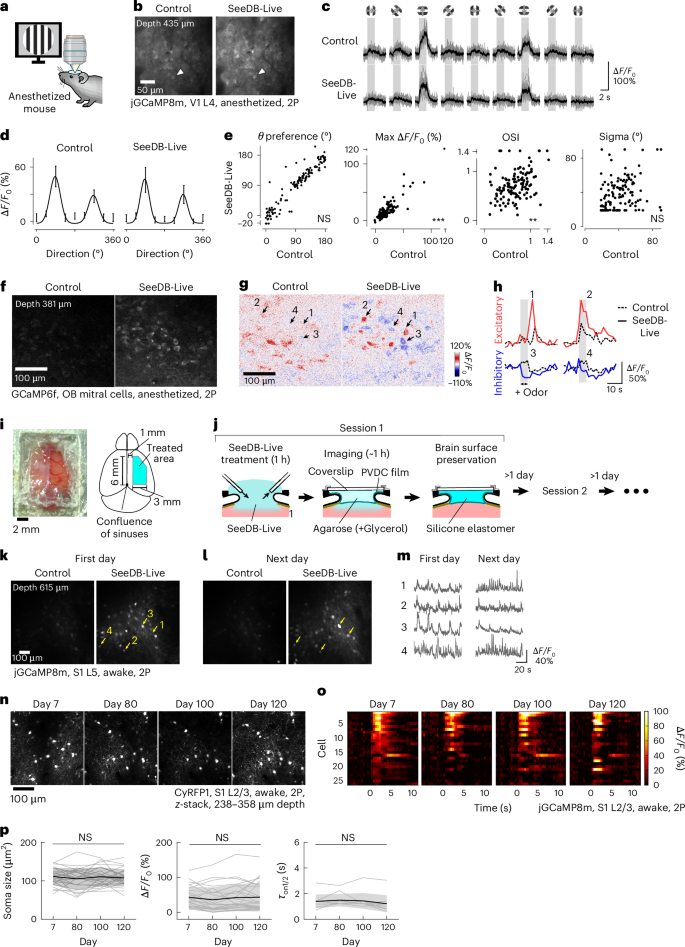

**Fig. 5: Improved in vivo imaging of neuronal activity with SeeDB-Live.**

In the olfactory bulb, we were able to better visualize odor responses in mitral cell somata located at a depth of ~400 μm using GCaMP6f (Fig. 5f). Due to the improved brightness, inhibitory responses, represented by a reduction in basal GCaMP6f fluorescence, were better detected using SeeDB-Live (Fig. 5g,h and Supplementary Video 15).

Voltage imaging is more challenging than calcium imaging in vivo due to the lower signal-to-noise ratio of the signals. However, using SeeDB-Live, we were able to reliably detect action potentials from the somata of layer 5 pyramidal neurons located at a depth of ~560 μm using JEDI-2P indicator (Extended Data Fig. 8f–i)³⁶.

Optical clearing with SeeDB-Live is transient in vivo (~1 h) as BSA is gradually washed out (Fig. 4k). To perform chronic calcium imaging with SeeDB-Live in awake animals, we used easily removable plastic films for the cranial window (Fig. 5i,j). A large cranial window (6 × 3 mm²) was made in one hemisphere and SeeDB-Live was applied for 1 h. A polyvinylidene chloride (PVDC) wrapping film was attached onto the window³⁷. Refractive index–matched agarose was placed between the PVDC film and a coverslip for imaging. We obtained stable responses of GCaMP8m in S1 (615-μm depth). Since the window is easily detached, we could repeat the same procedures on consecutive days without compromising the quality of the window (Fig. 5k–m). We did not find any changes in cytoarchitecture and sensory responses (amplitude and frequency) over 4 months, suggesting that normal neuronal functions are maintained during repeated clearing (Fig. 5n–p and Extended Data Fig. 7a). Moreover, we observed minimal inflammatory responses after repeated clearing (Extended Data Fig. 7l). This approach could be powerful for chronic imaging of deep cortical regions.

Epifluorescence voltage imaging of acute brain slices with SeeDB-Live

Genetically encoded voltage indicators with high signal-to-noise ratios have been developed in recent years. To image fast voltage changes, high-speed epifluorescence imaging is advantageous over point-scanning two-photon microscopy. Here we cleared acute olfactory bulb slices with SeeDB-Live and imaged calcium and voltage signals using GCaMP6f and a fast and sensitive chemigenetic voltage indicator, Voltron2, sparsely introduced to mitral/tufted cells by in utero electroporation (Fig. 6a)³⁸; Voltron2 was visualized with JF₅₄₉–HaloTag ligand applied to the medium (Voltron2₅₄₉). After the clearing with SeeDB-Live, the epifluorescence signals of Voltron2₅₄₉ were clearly visualized at a depth of >150 μm (Fig. 6b). Using a high-speed CMOS camera (2 kHz), we recorded voltage changes in different compartments of mitral cell dendrites. We could visualize the backpropagation of action potentials from somata to dendritic tips in single-shot imaging, without averaging (Fig. 6c–f, Extended Data Fig. 9a–c and Supplementary Video 16). We observed a ~1.5-ms delay in responses at the tip of the primary dendrites (Fig. 6f). Thus, the combination of SeeDB-Live and epifluorescence imaging will be a powerful tool for studying subcellular dynamics of voltage signals in acute brain slices.

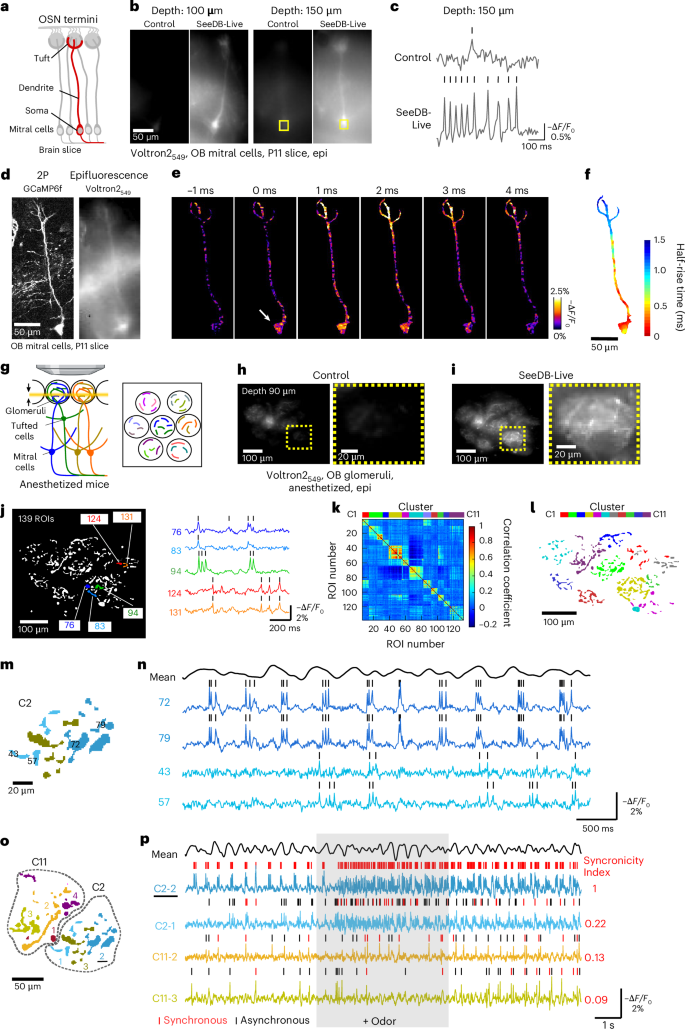

**Fig. 6: Epifluorescence voltage imaging with SeeDB-Live ex vivo and in vivo.**

Epifluorescence voltage imaging of backpropagating action potentials in vivo

Previously, it has been challenging to image genetically encoded voltage indicator signals at deeper parts of the brain using epifluorescence imaging in vivo^38,39,40. We expressed Voltron2-ST specifically in layer 2/3 (L2/3) pyramidal neurons in S1 using in utero electroporation, visualized with JF₅₄₉–HaloTag ligand. After the clearing with SeeDB-Live, L2/3 neurons located at a depth of 120–150 μm were better visualized, allowing for reliable detection of spontaneous action potentials in their somata (Extended Data Fig. 9d–f). We also detected backpropagating action potentials from dendrites of Voltron2-expressing L2/3 neurons in awake mice (Extended Data Fig. 9g–i).

Next, we performed voltage imaging of mitral/tufted cells in vivo. In the mitral/tufted cells, the odor information is encoded not only by the spike frequencies, but also by the timing⁴¹. Epifluorescence voltage imaging has been performed in the olfactory bulb, but not at the single-neuron resolution^42,43.

We expressed Voltron2 specifically and sparsely in mitral/tufted cells using the Pcdh21-Cre driver and a Cre-dependent adeno-associated virus (AAV) vector, labeled with JF₅₄₉–HaloTag ligand (Voltron2₅₄₉). Voltron2₅₄₉ signals were found not only in somata, but also in dendrites (Fig. 6g–i). As a result, we were able to detect backpropagating action potentials from ~140 neurites (regions of interest or ROIs) at a depth of ~90 μm using SeeDB-Live and epifluorescence imaging (Fig. 6j). In this imaging setup, the theoretical focal depth was ~1.36 μm (Fig. 6g). Of course, out-of-focus signals will contribute substantially to the total fluorescence, F₀. However, as the fluorescence changes caused by the spikes were all-or-none and up to 2–3% ΔF/F₀ (much smaller than calcium imaging), it is unlikely that scattered out-of-focus signals interfere with or contaminate spike detection (that is, −ΔF/F₀) in each of the ROIs.

Correlation of the voltage traces across ROIs revealed ~11 discrete clusters (Fig. 6k). The ROIs within each cluster (11 clusters by k-means) were also spatially clustered (Fig. 6l), demonstrating that neurites within the same glomerulus have similar voltage dynamics (including subthreshold changes; Fig. 6j). This makes sense because neurons connecting to the same glomerulus (‘sister’ mitral/tufted cells) receive similar synaptic inputs and are electrically coupled within the glomerulus⁴⁴. When we looked at individual ROIs within the same glomerulus, some pairs, but not all, demonstrated highly correlated backpropagating action potentials, suggesting that these dendritic branches originated from the same neuron (Fig. 6m,n). We, therefore, grouped ROIs with highly synchronized backpropagating action potentials into a subcluster. In this way, we obtained 21 subclusters, each of which most likely represents a single neuron (Extended Data Fig. 10a,b). Subclusters that belong to the same glomerulus (‘sister’ mitral/tufted cells) tend to show more synchronized events than those in different glomeruli (Fig. 6o,p)⁴⁴. We also observed odor-evoked phase shifts in action potentials relative to the sniff-coupled theta oscillations (Extended Data Fig. 10c,d), consistent with previous studies^45,46. Thus, epifluorescence imaging of dendrites combined with SeeDB-Live provides a powerful approach for studying population voltage dynamics in vivo.

Discussion

To date, several studies have achieved optical clearing of live tissues, but only under unhealthy conditions for live cells. In this study, we identified the optimal refractive index and achieved optical clearing of live tissues without affecting osmolarity using BSA. Furthermore, the extracellular ionic condition was largely preserved, which is critical for studying the normal physiology of neurons. This is an advantage of SeeDB-Live over existing methods (Supplementary Table 5). Notably, the SeeDB-Live treatment demonstrated an undetectable level of toxicity to neuronal physiology and animal behavior, providing a powerful new option for imaging-based neurophysiology. Combined with wider field-of-view two-photon microscopy^47,48,49,50, targeted one-photon imaging approaches^39,40,51 and red-shifted indicators⁵², SeeDB-Live expands the imaging scale for biological phenomena at the tissue and organ scale both ex vivo and in vivo.

In this study, we demonstrated that SeeDB-Live is particularly useful for epifluorescence voltage imaging. Previously, large-scale imaging of voltage changes has been difficult due to the slow scanning speed of two-photon microscopy and light scattering with one-photon microscopy. Epifluorescence imaging of dendritic voltage changes with SeeDB-Live could be a powerful strategy for studying subcellular and/or population-scale voltage dynamics both ex vivo and in vivo.

We have demonstrated the utility of SeeDB-Live for acute functional assays of organoids. However, some of the induction experiments (for example, optic cup formation³¹) were unsuccessful for unknown reasons. For the improved culture of organoids, microfluidic culture systems may be useful to improve circulation and/or to exchange the medium³⁰. For the in vivo applications, accessibility of BSA to the target tissues may be the major issue. For the chronic in vivo imaging of the mouse brain, we demonstrate the utility of easily removable cranial windows³⁷. In the future, BSA-permeable membrane may be more useful for the optical window. Alternatively, infusion into the CSF circulation system may be useful for efficient permeation of SeeDB-Live for more extensive clearing of the entire brain in the future studies⁵³. Other organs may be more difficult to clear, and future in vivo applications would require strategies to overcome the accessibility issue.

The improved transparency with SeeDB-Live also expands the modality of the imaging methods. With SeeDB-Live, we can now use confocal microscopy for deep imaging, enabling high-resolution multicolor imaging. The combination of fluorescence imaging and photostimulation will be easier with one-photon and SeeDB-Live than with a multi-photon setup. As optical aberration is minimized, SeeDB-Live should also be very useful for super-resolution imaging of large volume in live tissues^9,54. While we have demonstrated shadow imaging with two-photon microscopy, STED microscopy in combination with SeeDB-Live may enable saturated connectomics in acute brain slices, rather than in cultured brain slices^33,34. For the best performance, it should be important to use objective lenses optimized for SeeDB-Live (refractive index, ~1.363). Together with ongoing efforts to develop microscopy techniques, our live tissue-clearing approach facilitates our understanding of the tissue-scale and organ-scale dynamics of biological phenomena.

Methods

Mice

All animal experiments were approved by the Institutional Animal Care and Use Committee (IACUC) of Kyushu University, Kagoshima University and Yamanashi University. Thy1-GCaMP6f (line GP5.11; JAX, 024339)⁵⁷, Thy1-YFP-H (JAX, 003782)⁵⁸ and Pcdh21-Cre (RIKEN BRC, RBRC02189)⁵⁹ mice have been described previously. ICR and C57BL/6N mice were purchased from Japan SLC. Thy1-GCaMP6f (line GP5.11; hemizygotes), Thy1-YFP-H (homozygotes) and Pcdh21-Cre (hemizygotes) mice were on the C57BL/6N background. Both males and females were used for our experiments. Mice were kept under a consistent 12-h light–12-h dark cycle (lights on at 8:00 and off at 20:00), with an ambient temperature of 20–26 °C and humidity of 40–70%.

Plasmids

To construct pCAG-GCaMP6f, GCaMP6f gene was PCR amplified from pGP-CMV-GCaMP6f (Addgene, 40755) with Q5 High-Fidelity 2X Master Mix (M0492S, NEB). The cDNA was flanked by EcoRI and NotI sites. The GCaMP6f cDNA was subcloned into pCAG vector with a ligation kit (6023, Takara). To make pAAV-CAG-jGCaMP8f-WPRE, jGCaMP8f gene was amplified from pGP-AAV-syn-jGCaMP8f-WPRE (Addgene, 162376) with Q5 High-Fidelity 2X Master Mix. The cDNA contained an extra 20–30-bp overlap regions with pAAV-CAG-tdTomato (Addgene, 59462). The tdTomato was removed from pAAV-CAG-tdTomato by digestion with KpnI and HindIII, and jGCaMP8f cDNA with the extra sequence was subcloned into the vector with NEBuilder HiFi DNA Assembly (E2621S, NEB). pCAG-GCaMP6f plasmid has been deposited to Addgene (no. 249680).

Preparation of SeeDB-Live

Control ACSF comprised 125 mM NaCl, 3 mM KCl, 1.25 mM NaH₂PO₄, 2 mM CaCl₂, 1 mM MgCl₂, 25 mM NaHCO₃ and 25 mM glucose. In some experiments, we used ACSF-HEPES (145 mM NaCl, 5 mM KCl, 2 mM CaCl₂, 1 mM MgCl₂, 10 mM HEPES, pH 7.3).

To prepare SeeDB-Live/ACSF, crystallized BSA from bioWORLD (22070004; BSA#1) was used. BSA was dissolved with gentle shaking at 15.6% wt/vol. We found that BSA#1 contained residual salts (~30 mM Na⁺ and ~1 mM Ca²⁺ when dissolved at 15% wt/vol; Extended Data Fig. 1e), and this was taken into account. pH was adjusted with sodium hydroxide. BSA is known to chelate Ca²⁺ and Mg²⁺. To maintain the free Ca²⁺ and Mg²⁺ concentrations the same as ACSF, additional CaCl₂ (2 mM) and MgCl₂ (1 mM) were supplemented after BSA was fully dissolved in the medium (except for Fig. 1a–h and Extended Data Fig. 1). SeeDB-Live/ACSF contained 151.0 mM Na⁺, 111.3 mM Cl⁻, 3.0 mM K⁺, 1.0 mM H₂PO₄, 6.1 mM Ca²⁺, 2.9 mM Mg²⁺, 20.1 mM HCO₃⁻ and 15 mM glucose (pH 7.4 under 5% CO₂; refractive index, 1.363; Supplementary Table 2). SeeDB-Live/ACSF-HEPES contained 157.4 mM Na⁺, 131.9 mM Cl⁻, 4.0 mM K⁺, 6.1 mM Ca²⁺, 2.5 mM Mg²⁺ and 7.8 mM HEPES (pH 7.3; refractive index, 1.363). To oxygenate SeeDB-Live/ACSF and SeeDB-Live/ACSF-HEPES, 95% O₂/5% CO₂ gas was filled in the bottle containing the medium for ~2 h before the experiments. Saturation of O₂ was checked with an O₂ sensor (9521, Horiba). Bubbling is not recommended because it produces a lot of foam, and BSA may be denatured. As for the culture medium, BSA#1 was dissolved in ×0.8 culture medium to adjust the osmolarity and CaCl₂ (2 mM) and MgCl₂ (1 mM) were supplemented. In this way, the concentrations of salts and osmolality of the BSA-containing medium/saline were adjusted to be the same as that of the original medium/saline (Supplementary Table 1). The osmolarity of the BSA solution was measured with a vapor pressure osmometer (VAPRO 5600, Xylem ELITech). The refractive index was measured with an Abbe refractometer (ER-2S, Erma) with a white LED light source.

We tested the following BSA products: BSA#1, BSA crystal (22070004, bioWORLD); BSA#2, BSA Low Salt (015-15125, Fujifilm), BSA#3, BSA crystal (012-15093, Fujifilm); BSA#4, BSA pH 5.2 (017-21273, Fujifilm); BSA#5, BSA pH 7.0 (019-27051, Fujifilm); BSA#6, BSA Globulin Free (016-15111, Fujifilm); and BSA#7, BSA Protease Free (019-28391, Fujifilm). Salts contained in BSA powder were analyzed using Inductively Coupled Plasma Mass Spectrometry (Agilent Technologies, ICP-MS 7700x). See Extended Data Fig. 1e for the data.

We tested the following chemicals during the screening process: glycerol (17018-25, Nacalai), DMSO (043-07216, Fujifilm), propylene glycol (164-04996, Fujifilm), iodixanol (VISIPAQUE 320 INJECTION 50 ml, GE HealthCare), iodixanol (D1556-250ML, Optiprep), iotrolan (Isovist Injection 300, Bayer Pharma Japan), iopamidol (OYPALOMIN, FujiPharma), iopromide (iopromide 370 Injection (FRI), Fujifilm), iohexol (OMNIPAQUE350 INJECTION, GE healthcare Pharma), ioxilan (Imagenil350 Injection, Guerbet Japan), ioversol (Optiray350 Injection, Mallinckrodt), ioxagilic acid (Hexabrix320 Injection, Guerbet Japan), iomeprol (Iomeron400 Bracco-Eisai), Ficoll70 (17031050, Cytiva), Ficoll400 (17030010, Cytiva), HBCD (307-84601, Glico), PVP (P0471, TCI), sucrose (193-00025, Fujifilm), tartrazine (T0388, Sigma-Aldrich), ampyron (017-02272, Fujifilm), polydextrose (polydex300, Nichiga), partially hydrolyzed guar gum (2021092403, Nichiga), methyl-β-cyclodextrin (M1356, TCI), agave inulin (agabe500, Nichiga), PEG8000 (V3011, Promega), PEG10000 (81280, Sigma-Aldrich), RM + stevia (dex-5-500m, Nichiga), resistant maltodextrin from corn (RM1, MK-H108-6T6I, Nichiga), resistant maltodextrin from wheat (RM2, dekisutorin-komugi-400, Nichiga), inulin (inurinn500, Nichiga), isomaltodextrin (Fibryxa, Hayashibara), reduced resistant maltodextrin (kg-nandeki-400, Nichiga), dextran (D1662, Sigma-Aldrich) and stevia (sutebiasw5-150m, Nichiga).

See Supplementary Tables 1 and 2 for more detailed composition of SeeDB-Live and other clearing media. A step-by-step protocol and technical tips are available at SeeDB Resources (https://sites.google.com/site/seedbresources/).

Transmittance measurement in cell suspension

HeLa S3 cells (JCRB9010, JCRB) were cultured in Dulbecco’s Modified Eagle Medium (DMEM high glucose; 043-300085, Fujifilm) supplemented with 1% penicillin–streptomycin and 10% fetal bovine serum (FBS) at 37 °C, 5% CO₂. After trypsinization, cells were collected at 2 × 10⁵ cells per tube. After centrifugation, the medium was replaced with 50 μl of index-adjusted PBS. Transmittance of the cell suspension in 400–1,100 nm was measured with a ratio beam spectrophotometer (U-5100, Hitachi High-Tech). This measurement was performed quickly because unhealthy cells have a nonoptimal refractive index, which results in reduced transmittance.

Ca²⁺ measurement in cultured cells

HEK293T cells (AAVpro 293T, 632273, Takara) were cultured in DMEM (high glucose) supplemented with 1% penicillin–streptomycin and 10% FBS at 37 °C and 5% CO₂. Cells seeded in 35-mm glass-bottom dishes (60% confluent) were transfected with pGP-CMV-GCaMP6f (Addgene, 40755) using PEI Max (Polysciences, 24765-1). Twenty-four hours after transfection, the medium was replaced with an index-adjusted medium (refractive index, 1.365). The osmolality of the medium was not adjusted to isotonicity. Two hours after the medium exchange, cells were imaged with an inverted microscope (DMI600B, Leica) equipped with a ×10 NA 0.4 dry objective lens and controlled by LAS AF software (Leica). A final concentration of 50 μM ATP was added to the medium during imaging. The maximum values after stimulation were used for the data analysis. For the calcium measurement with a plate reader (TriStar LB941, Berthold), GCaMP6f-expressing HEK293T cells were transferred to a 96-well plate at 4 × 10⁵ cells per ml per well. A total of 50 μM ATP was added to the medium during the time-series measurement. Mean values during 1–10 s after stimulation were analyzed.

Viscosity measurement

To measure the viscosity of the solutions, we measured the time taken for 20 ml of solutions to flow out from a 50-ml syringe (TERMO, SS-50ESZ) with an internal tip diameter of ~2 mm. The point at which the solution flow was stopped was considered as the end of the flow. The viscosity of sucrose solutions at room temperature (21 °C)⁶⁰ was used as the standard. The plots were fitted by single-exponential fitting. The viscosity of the solutions was calculated based on the calibration curve.

Cell growth measurement

HeLa/Fucci2 cells were seeded on a clear-bottom 384-well plate at 700 cells per well. The cells were cultured in DMEM (high glucose), without phenol red, and glutamine (040-30095, Fujifilm) supplemented with 1% penicillin–streptomycin, 10% FBS and 1% glutamine at 37 °C and 5% CO₂. Twenty-four hours after seeding, the medium was replaced with an index-adjusted medium (refractive index, 1.363; 310–320 mOsm kg⁻¹). Fucci2 fluorescence (mVenus and mCherry) was imaged with an inverted fluorescence microscope (DMI600B, Leica) equipped with a ×5 NA 0.1 dry objective lens and controlled by LAS AF software (Leica). Cells were counted based on the nucleus images of Fucci2 fluorescence with ImageJ software (https://imagej.net/ij/). First, the green and red channels were summed. The speckle noise was removed with ‘Despeckle’. The overlapped nuclei were separated with ‘Watershed’. The intensity threshold was determined manually. Finally, the cell number in each well was counted with ‘Analyze particles’. For manual counting, the cells were seeded on 35-mm dishes at 1 × 10⁵ cells per dish. Twenty-four hours after plating, the medium was replaced with an index-adjusted medium (refractive index, 1.363; 320 mOsm kg⁻¹). After trypsinization, the cell number was counted with a hemocytometer.

For spheroid formation, HeLa/Fucci2 cells were seeded on an ultralow-attachment 96-well plate (7007, Corning) at 1,000 cells per well. At 24–48 h after plating, the spheroid was incubated in an index-adjusted medium (SeeDB-Live; refractive index, 1.366; 320 mOsm kg⁻¹) for 4 h per day or for all the time. The half volume of the culture medium was replaced with the fresh one every day in Fig. 1i–k. For manual counting, the cells were incubated in a mixture of 50 μl DMEM and 200 μl Trypsin-EDTA for 30 min. The suspension was then centrifuged at 1,000 rpm for 5 min. The pellet was resuspended with the culture medium for cell counting with a hemocytometer.

Spheroid imaging

The HeLa/Fucci2 spheroid was incubated in SeeDB-Live (refractive index, 1.366; 320 mOsm kg⁻¹) for 1 h. Then, the spheroid was mounted on a glass slide and sealed with a 1-mm-thickness silicone rubber spacer (Togawa rubber) and a coverslip (Matsunami). Imaging was performed using an FV1000MPE microscope (Olympus/Evident) with Fluoview FV10-ASW software (Olympus/Evident, RRID: SCR_014215) and a ×25 NA 1.05 objective lens (Olympus/Evident, XLPLN25XWMP). Immersion was performed with water and 17.2% (vol/vol) TDE/ddH₂O (refractive index 1.366) for control and SeeDB-Live samples, respectively. The correction collar was turned to the appropriate position. For the confocal imaging, 473-nm and 569-nm lasers were used to excite mVenus and mCherry, respectively. For the two-photon imaging, a femtosecond laser (Insight DeepSee, SpectraPhysics) was tuned to 920 nm for mVenus excitation. A 1,040-nm laser was used for mCherry excitation.

For cell detection, flat areas of the images were cropped. The green and red channels were merged to make reference images. A median filter was applied (2 × 2 pixels). ROIs for each cell in a spheroid were created with Cellpose^61,62. Cell numbers and the fluorescence intensity were calculated based on the ROIs using MATLAB (MathWorks). 3D-rendered images were made by Imaris Viewer (Oxford Instruments).

Imaging of intestinal organoids

Intestinal organoids were created following the manufacturer’s protocol (VERITAS). Briefly, ePET-Cre; Ai162 mice were euthanized with an overdose of pentobarbital (intraperitoneal (i.p.) injection, 100–150 mg per kg body weight). A small intestine was taken out and cut to expose the lumen side. The lumen was gently washed with cold PBS (−) several times. The small intestine was cut into 2-mm pieces in 10 ml of cold PBS (−). After pipetting three times, the supernatant was replaced with new cold PBS (−). This procedure was repeated >15 times until the supernatant became clear. The supernatant was replaced with 25 ml of Gentle Cell Dissociation Reagent (ST-100-0485, STEMCELL Technologies). The pieces were gently shaken for 15 min at room temperature. The supernatant was replaced with 10 ml of cold 0.1% BSA/PBS. After pipetting three times, the suspension was passed through a 70-µm cell strainer (352350, Corning). This step was repeated to obtain the fraction containing more crypts. After centrifugation at 300g for 5 min at 4 °C, the supernatant was replaced with 10 ml of cold 0.1% BSA/PBS. After centrifugation at 200g for 3 min at 4 °C, the supernatant was replaced with 10 ml of DMEM/F-12 (11039-021, Thermo Fisher). After centrifugation at 200g, for 5 min at 4 °C, the supernatant was replaced with 150 µl of IntestiCult Organoid Growth Medium (ST-06005, STEMCELL Technologies). Matrigel (150 µl; 356237, Corning) was added to the suspension. After pipetting ten times, 50 µl of the mixture was mounted on the well of a 24-well plate. The plate was incubated for 10 min at 37 °C to gelatinize Matrigel. IntestiCult Organoid Growth Medium (750 µl) was added to the wells carefully.

For imaging, the organoids were dissociated from a gel by pipetting with Gentle Cell Dissociation Reagent and transferred to a 15-ml tube. The tube was gently shaken for 10 min at room temperature. After centrifugation at 300g for 5 min at 4 °C, the supernatant was replaced with 10 ml of cold DMEM-F-12. After centrifugation at 300g for 5 min at 4 °C, the supernatant was replaced with 150 µl of IntestiCult Organoid Growth Medium (osmolality, 270 mOsm kg⁻¹). Matrigel (150 µl) was added to the suspension, and 50 µl of the mixture was mounted and spread on the glass region of a 35-mm glass-bottom dish. The mixture was gelatinized by incubation for 10 min at 37 °C. IntestiCult Organoid Growth Medium (1 ml) was added to the dish carefully. For clearing, the culture medium was replaced with SeeDB-Live/IntestiCult Organoid Growth Medium (refractive index, 1.363) 2–3 h before imaging. Phase contrast images were taken with an inverted microscope (DMI600B, Leica) equipped with a ×10 NA 0.4 dry objective lens and controlled by LAS AF software (Leica). Fluorescence of EECs in an organoid was imaged with an inverted confocal microscopy (TCS SP8, Leica) equipped with ×20 NA 0.75 multi-immersion lens and LASX software (Leica Microsystems). Immersion was performed using water and 17.2% (vol/vol) TDE/ddH₂O (refractive index, 1.366) for controls and SeeDB-Live samples, respectively. The correction collar was turned to the appropriate position. A 488-nm laser was used to excite GCaMP6s expressed in EECs. To measure the Ca²⁺ responses of EECs, KCl (+30 mM at final concentrations) was added to the medium during imaging.

Imaging of embryonic stem cell-derived organoids

Mouse embryonic stem cells were maintained as described in the previous study³¹. The cell line used in this study is a subline of the mouse embryonic stem cell line EB5 (129/Ola), in which the GFP gene was knocked in under the Rax promoter and Lifeact-mCherry gene was knocked in to the Rosa26 locus. The cell line was provided by M. Eiraku at Kyoto University.

Cells were maintained as described in the previous study³¹. For maintenance, cells were cultured in a gelatin-coated 100-mm dish. The dish contained maintenance medium, to which 20 µl of 10⁶ units per ml leukemia inhibitory factor (Sigma-Aldrich) and 20 µl of 10 mg ml⁻¹ blasticidin (14499, Cayman) were added. Cells were incubated at 37 °C in 5% CO₂. The maintenance medium consisted of Glasgow’s Modified Eagle Medium (G-MEM; 078-05525, Wako) supplemented with 10% Knockout Serum Replacement (KSR; 10828028-028, GIBCO), 1% FBS (GIBCO), 1% Non-essential Amino Acids (NEAA; 139-15651, Wako), 1 mM pyruvate (190-14881, Wako) and 0.1 mM 2-mercaptoethanol (2-ME; M6250, Sigma-Aldrich). The solution was filtered through a 0.2-μm filter bottle, stored at 4 °C, used within 1 month.

For organoid induction, the serum-free floating culture of embryoid body-like aggregates with quick reaggregation (SFEBq) culture method was performed as described in a previous study³¹. In this method, 3,000 cells were suspended in 100 µl of differentiation medium in each well of a 96-well plate on day 0. On day 1, Matrigel (354230, Corning) was mixed with the differentiation medium and added to each well to reach a final concentration of 2.0%. This plate was incubated at 37 °C in a 5% CO₂ environment. The differentiation medium consisted of G-MEM supplemented with 1.5% KSR, 1% NEAA, 1% pyruvate and 0.1% 0.1 M 2-ME. This solution was filtered through a 0.2-μm filter bottle, stored at 4 °C and used within 1 month.

For imaging, Matrigel surrounding the organoids was reduced by pipetting gently in advance. Then the organoids were transferred from the 96-well plate to a 35-mm glass-bottom dish (D11130H, Matsunami) coated with 0.1% (wt/vol) poly-L-lysine solution in H₂O (P8920, Sigma-Aldrich) and 2.5 mg ml⁻¹ Cell-Tak (354240, Corning). The organoids were attached to the bottom by removing the medium as much as possible and incubating for 20 min at 37 °C in a 5% CO₂ environment. Images were captured using an LSM 800 (Zeiss) equipped with a ×25 NA 0.8 multi-immersion lens and controlled by Zen software (Zeiss, RRID: SCR_013672). Immersion was performed with water and 17.2% (vol/vol) TDE/ddH₂O (refractive index, 1.366) for controls and SeeDB-Live samples, respectively. On day 9 in SFEBq culture, 145 images were taken for each organoid at different z-positions with 3-µm intervals within 432 µm. Organoids were incubated for 2 h in SeeDB-Live medium adjusted at 270 mOsm kg⁻¹. Small incisions were made in the organoid by randomly inserting a glass capillary five times to facilitate penetration of SeeDB-Live into the internal vesicle.

Cultures for cortical organoid induction were performed as described in the study⁶³. In this method, the cortical organoid differentiation medium consisted of G-MEM supplemented with 10% KSR, 1% NEAA, 1% pyruvate and 0.1% 0.1 M 2-ME. The solution was filtered through a 0.2-μm filter bottle, stored at 4 °C and used within 1 month. On day 0, 3,000 cells were suspended in 100 µl of differentiation medium and placed in each well of a 96-well plate. The plates were incubated at 37 °C in a 5% CO₂ environment. On day 7, the aggregates were transferred to a 35-mm bacterial-grade dish containing DMEM/F-12 with Glutamax (10565, Invitrogen) supplemented with N2 (17502-048, Invitrogen) and incubated in a 5% CO₂, 40% O₂ environment at 37 °C. The medium was changed every 3 days. For Ca²⁺ imaging, the organoids were incubated with 5 µM Calbryte 630 (20721, AAT Bioquest) for 1 h, transferred to a 35-mm glass-bottom dish and covered with cover glass (Matsunami). Images were captured using an LSM 800 (Zeiss) equipped with a ×25 NA 0.8 multi-immersion lens and controlled by Zen software (Zeiss, RRID: SCR_013672). Immersion was performed using water and 15.6% (vol/vol) TDE/ddH₂O (refractive index, 1.363) for controls and SeeDB-Live samples, respectively. On day 36 in SFEBq culture, 145 images were taken for each organoid at different z-positions with 3-µm intervals within 432 µm. Organoids were incubated for 1 h in SeeDB-Live medium.

Production of AAV

AAV-DJ-syn-jGCaMP8m-WPRE vector was generated using pGP-AAV-syn-jGCaMP8m-WPRE (Addgene, 162375), pHelper (AAVpro Helper-free system, Takara), pAAV-DJ (Cell Biolabs) and the AAVpro 293T cell line (632273, Takara) following the manufacturers’ instructions. Transfection was performed with PEI Max (24765-1, PSI). AAV vectors were purified using the AAVpro Purification Kit All Serotypes (6666, Takara). AAV.PHP.S-CAG-jGCaMP8f-WPRE vector was generated using pAAV-CAG-jGCaMP8f-WPRE, pHelper, pUCmini-iCAP-PHP.S (Addgene, 103006) and the AAVpro 293T cell line as described previously⁶⁴. Briefly, the conditioned medium containing AAV vectors was filtered with a syringe filter to remove cell debris at 6 days after transfection. The filtered medium was concentrated and formulated with D-PBS (−) using the Vivaspin 20 column pretreated with 1% BSA in PBS. Viral titers were measured using AAVpro Titration Kit (6233, Takara) or THUNDERBIRD SYBR qPCR Mix (QPS-201, TOYOBO) with StepOnePlus system (Thermo Fisher) or QuantStudio3 real-time PCR system (Applied Biosystems).

Imaging of primary cardiomyocytes

Primary cultures of cardiomyocytes were prepared from P0 ICR mice as previously described⁶⁵. The pups were anesthetized on ice and decapitated. The hearts were dissected and washed in PBS (−) containing 20 mM 2,3-butanedione monoxime (B0753, Sigma). The hearts were cut into 0.50–1-mm pieces in Hanks’ Balanced Salt solution (HBSS (−); 084-08345, Fujifilm) containing 0.08% Trypsin-EDTA and 20 mM 2,3-butanedione monoxime and shaking at 4 °C for 2 h. L15 medium (128-06075, Fujifilm) containing 1.5 mg ml⁻¹ collagenase/Dispase mix (10269638001, Roche) and 20 mM 2,3-butanedione monoxime was added. Thirty minutes after shaking at 37 °C, the suspension was filtered through a 70-μm cell strainer. The trapped heart tissues were transferred to an L15 medium containing 1.5 mg ml⁻¹ collagenase/Dispase mix and 20 mM 2,3-butanedione monoxime and incubated for 10 min at 37 °C. The suspension was filtered through the cell strainer again. After centrifugation at 100g for 5 min, the pellet was resuspended with DMEM (high glucose) supplemented with 1% penicillin–streptomycin and 10% FBS. The suspension was mounted on a cell culture dish for 2 h. This helped the removal of highly adhesive cells. After gentle pipetting, the suspension was collected and plated on 35-mm dishes at 1.2 × 10⁵ cells per cm². The cells were cultured in DMEM (high glucose), without phenol red and glutamine (040-30095, Fujifilm) supplemented with 1% penicillin–streptomycin, 10% FBS and 1% glutamine at 37 °C, 5% CO₂. On day 1 in vitro (DIV-1), AAV.PHP.S-CAG-jGCaMP8f-WPRE was added at 2 × 10¹⁰ genome copies (GCs) per ml. On DIV-2, the culture medium was exchanged. The spontaneous activity of cardiomyocyte aggregates was measured with a Leica TCS SP8 equipped with a ×20 NA 0.75 multi-immersion lens and LASX software (Leica Microsystems) at DIV-3 to DIV-5. Phase contrast images were taken with an inverted microscope (DMI600B, Leica) equipped with a ×10 NA 0.4 objective lens and controlled by LAS AF software (Leica).

Imaging of primary hippocampal neuron culture

Primary cultures of hippocampal neurons were prepared from embryonic day 16 ICR mice. The embryos were taken from the uterus and decapitated in cold HBSS (−). The brain was extracted and put into a cold dissection medium consisting of HBSS (−) supplemented with 20 mM HEPES and 1% penicillin–streptomycin solution. The hippocampus was extracted from the brain and transferred to the dissection medium in a 15-ml tube. Papain (2 mg ml⁻¹; LS003119, Worthington)/HBSS (−) was activated for 5 min at 37 °C. After filtration, the hippocampi were transferred to papain/HBSS (−) and incubated for 20 min at 37 °C. A total of 1 ml of 150 mg ml⁻¹ DNase I (11284932001, Roche)/HBSS (−) was added to the papain/HBSS (−) containing the hippocampi. The hippocampi were incubated for 5 min at 37 °C. The hippocampi were washed twice with 2 ml of HBSS (−). The supernatant was replaced with 2 ml of Neurobasal medium (21103-049, Thermo Fisher) supplemented with 2% B27 (17504-044, Thermo Fisher), 1% GlutaMax (35050-061, Thermo Fisher) and 1% penicillin–streptomycin solution. The cells were dissociated with gentle pipetting using a Pasteur pipette (Iwaki). The cells were then plated on a 35-mm glass-bottom dish coated with poly-D-lysine (P7886, Sigma) at 1.5 × 10⁵ cells on a 12-mm-diameter coverslip and cultured in 5% CO₂ at 37 °C. On DIV-2, AAV-DJ-hsyn-jGCaMP8m-WPRE was added at 7 × 10¹⁰ GCs per ml after half of the culture medium in the dishes was transferred to a 50-ml tube. Twenty-four hours after infection, the medium in the dishes was replaced with the culture medium kept in the 50-ml tube together with the same amount of fresh medium. On DIV-7, half of the culture medium was transferred to a 50-ml tube. SeeDB-Live (refractive index, 1.363) was made from this culture medium together with the same amount of fresh medium. The culture medium in the dishes was then replaced with SeeDB-Live. The spontaneous activity was measured with a Leica TCS SP8 equipped with a ×20 NA 0.75 multi-immersion lens and LASX software (Leica Microsystems) on DIV-8 to DIV-10. Phase contrast images were taken with an inverted microscope (DMI600B, Leica) equipped with a ×20 NA 0.7 objective lens and controlled by LAS AF software (Leica).

Transmission imaging of acute brain slices

ICR mice (P5) were anesthetized on ice and euthanized by decapitation. The brain was immediately taken and placed in cold and O₂-saturated ACSF (125 mM NaCl, 3 mM KCl, 1.25 mM NaH₂PO₄, 2 mM CaCl₂, 1 mM MgCl₂, 25 mM NaHCO₃ and 25 mM glucose). The brain was mounted on a silicone rubber block (Togawa Rubber) and sliced at 300-μm thickness using a microslicer (Dosaka EM). The slices were placed on a line target (Thorlabs, R1L3S6P), enclosed in a 1-mm-thick rectangular silicone chamber, and secured with a slice anchor. Slices were recovered in O₂-saturated ACSF for 1 h at room temperature and then cleared with SeeDB-Live. An upright microscope (Leica, S9E) equipped with a USB camera (Swift, EC5R) was used for image acquisition.

Confocal and two-photon imaging of acute brain slices

Thy1-GCaMP6f mice (P11–15) were used for Ca²⁺ imaging of the acute olfactory bulb slices. Thy1-YFP-H mice (P17–22) were used for morphological analyses. Mice were euthanized with an overdose of pentobarbital (i.p. injection, 100–150 mg per kg body weight) and decapitated. The brain was immediately dissected and placed in cold and O₂-saturated ACSF (125 mM NaCl, 3 mM KCl, 1.25 mM NaH₂PO₄, 2 mM CaCl2, 1 mM MgCl₂, 25 mM NaHCO₃ and 25 mM glucose). The brain was mounted on a silicone rubber block (Togawa rubber) and sliced using a microslicer (Dosaka EM) at 300-μm thickness. The slices were placed on a custom-made silicone chamber for imaging using an upright microscope as previously described^35,66. The slices were recovered under the perfusion of O₂-saturated ACSF for 1 h at room temperature. For clearing, the brain slices were perfused with SeeDB-Live for 1 h. To remove SeeDB-Live from tissue, ACSF was perfused for >1.5 h. We could record spontaneous activity of the olfactory bulb up to 5 h.

The custom-made silicone chamber was set under an FV1000MPE microscope (Olympus/EVIDENT) with Fluoview FV10-ASW software (Olympus/Evident, RRID: SCR_014215) and a ×25 NA 1.05 water-immersion objective lens (Olympus/Evident, XLPLN25XWMP). FV5000 (Evident) with a ×25 NA 0.85 multi-immersion objective lens (EVIDENT, LUPLAPO25XS) was used only for Supplementary Video 12 and controlled by FLUOVIEW Smart software (Evident). A perfusion chamber (Warner Instruments, JG-23W/HP, PM-1, SHD-26GH/10) was used for inverted imaging. Immersion was performed using water and 15.6% (vol/vol) TDE/ddH₂O (refractive index, 1.363) for controls and SeeDB-Live samples, respectively. The correction collar was turned to the appropriate positions (refractive index ~1.34 for control and ~1.363 for SeeDB-Live). For one-photon confocal imaging, a 473-nm laser was used. For two-photon imaging, a femtosecond laser (InSight DeepSee, SpectraPhysics) was tuned to 920 nm. For stimulation, 100 μM NMDA (Nacalai, 22034-1) and 40 μM glycine (Sigma, G7126-100G) in ACSF or SeeDB-Live/ACSF was applied during Ca²⁺ imaging. Imaging data were analyzed with ImageJ. Briefly, small drifts were corrected by the Image Stabilizer plugin for ImageJ (https://imagej.net/plugins/image-stabilizer) when necessary. ROIs were created manually. After fluorescence intensity was obtained, the data were analyzed with MATLAB software (MathWorks). The F₀ was calculated by temporal median filtering (ten-frame window). After the signal was filtered with temporal median filtering (three-frame window), the ‘findpeaks’ function was applied for peak detection.

Two-photon shadow imaging of acute brain slices

Acute brain slices were prepared from wild-type C57BL/6N mice (P18, male and female). The slice was mounted on a custom-made silicone chamber for imaging using an upright microscope as previously described^35,66. The slice was perfused with ACSF at room temperature for 30 min for recovery. Calcein (40 μM) was added to the ACSF. The slice was perfused with ACSF containing 40 μM calcein for 1 h. For clearing, the slice was perfused with SeeDB-Live containing 40 μM calcein for 1 h. For imaging, two-photon microscopy (MM201, Thorlabs) equipped with a 25x NA 1.05 water-immersion objective lens (Olympus/Evident, XLPLN25XWMP) and ThorImageLS software (Thorlabs) was used. A 920-nm femtosecond laser (ALCOR 920-4 Xsight, SPARK LASERS) was used. The images were averaged five times during the imaging.

Electrophysiology

Liquid junction potential (LJP) was determined for ACSF and SeeDB-Live/ACSF as described previously (Extended Data Fig. 6a)⁶⁷. We filled the recording electrode with internal solution and the reference electrode with 3 M KCl. The two electrodes were sequentially inserted into internal solution, ACSF and SeeDB-Live/ACSF while recording under current-clamp mode to measure potentials in each solution (V_IN, V_control-ACSF, V_{SeeDB-Live/ACSF}). Potential differences between internal solution and each external solution (V_IN – V_control-ACSF and V_IN – V_{SeeDB-Live/ACSF}) were measured 12 times, and their average values were taken as LJPs for control ACSF and SeeDB-Live/ACSF.

C57BL/6J mice (male and female) were purchased from Japan SLC. Recordings were performed at P14–18 (L5ET neurons and fast-spiking interneurons) and P28–29 (L5ET neurons). Mice were deeply anesthetized with isoflurane. For P14–18 mice, brains were quickly removed from mice and put into ice-cold ACSF bubbled with 95% O₂ and 5% CO₂. For P28–29 mice, 15 ml of ice-cold cutting solution (210 mM sucrose, 2.5 mM KCl, 1.25 mM NaH₂PO₄, 8 mM MgCl₂, 1 mM CaCl₂, 25 mM NaHCO₃ and 25 mM glucose) bubbled with 95% O₂ and 5% CO₂ were intracardially perfused, and the brains were dissected and put into the ice-cold cutting solution⁶⁸. Acute coronal slices (300-µm thick) containing S1 were prepared using a vibratome (VT1200S, Leica). The slices were recovered in ACSF for at least 1 h at room temperature (23–24 °C) before recording for the control condition. For the SeeDB-Live condition, following the recovery in ACSF for 1 h, the slices were transferred into SeeDB-Live solution saturated with 95% O₂ and 5% CO₂ for 1 h at room temperature. For the P15–18 L5ET neurons, all the recordings were performed within 6 h after recovery (4 h after clearing). To minimize the sampling bias, recording was first performed under the control ACSF for the half of the experiments; for the remaining half, the recording was first performed under the SeeDB-Live/ACSF. For the P14–18 fast-spiking interneurons and P28–29 L5ET neurons, all the recordings were performed within 6 h after recovery. Recording was extremely difficult when cleared with SeeDB-Live, even using infrared differential interference contrast. We tried to minimize the sampling bias by limiting the recording period after sample preparation. Consistent sampling (for example, cell type and depth) was confirmed.

The slices were perfused with ACSF or SeeDB-Live at room temperature during the recording. Neurons were visualized by an infrared differential interference contrast video microscope with a ×60, NA 1.0 water-immersion lens. Patch pipettes (3.9–9.9 MΩ) were filled with 130 mM potassium gluconate, 8 mM KCl, 1 mM MgCl₂, 0.6 mM EGTA, 10 mM HEPES, 3 mM Na₂ATP, 0.5 mM Na₂GTP, 10 mM Tris₂-phosphocreatine and 0.2% biocytin (pH was adjusted to 7.35 with KOH and osmolality was adjusted to 295 mOsm kg⁻¹). Whole-cell recording was performed in S1. L5ET neurons (thick-tufted L5 neurons with large cell bodies) and L5 fast-spiking interneurons with high-frequency spiking and little adaptation were analyzed. Neurons whose cell bodies were located deeper than 35 µm from the slice surface were recorded. Neurons were almost invisible under SeeDB-Live. Therefore, we ejected the internal solution with the lower refractive index from the pipette to better visualize target neurons. Recordings were performed using MultiClamp700B amplifiers (Molecular Devices), filtered at 10 kHz using a Bessel filter and digitized at 20 kHz with Digidata 1440 A digitizer (Molecular Devices), and stored using pClamp10 (Molecular Devices). Membrane potentials were corrected for LJPs (13.04 mV for ACSF and 9.19 mV for SeeDB-Live experiments; Extended Data Fig. 6a). A series resistance compensation was not used for recordings. When the series resistance exceeded 35 MΩ, the data were discarded. Data were analyzed using MATLAB.

To characterize firing properties, hyperpolarizing and depolarizing square current pulses were injected under current-clamp mode (+50-pA increment, 1 s). In characterizing membrane properties, the membrane potential was clamped at −60 mV, and square pulses (−5 mV, 50 ms) were applied in voltage-clamp mode. sEPSCs were recorded at the holding potential of −60 mV. Transient negative current responses with a peak amplitude of <−10 pA were detected as sEPSCs. The morphologies of the recorded neurons were visualized by staining biocytin with streptavidin-Cy3 (1:1,000 dilution, S6402; Sigma-Aldrich) after recording. Fluorescence images were obtained using confocal microscopy (LSM900, Zeiss) equipped with a ×10 objective lens and controlled by Zen software (Zeiss, RRID: SCR_013672).

In utero electroporation

In utero electroporation was performed as described previously³⁵. To label mitral cells at embryonic day 12 (E12), 1 μg each of pCAG-GCaMP6f and pGP-pcDNA3.1 Puro-CAG-Voltron2 (Addgene, 172909) plasmids were injected into the lateral ventricle. Electric pulses (a single 10-ms poration pulse at 72 V, followed by five 50-ms driving pulses at 40 V with 950-ms intervals) were delivered along the anterior–posterior axis of the brain with forceps-type electrodes (3-mm diameter, LF650P3, BEX) and a CUY21EX electroporator (BEX).

For imaging of the soma of L2/3 neurons in S1, 1 μg of pCAG-GCaMP6f and pGP-pcDNA3.1 Puro-CAG-Voltron2-ST (Addgene, 172910) plasmids were injected into the lateral ventricle at E15. For imaging of the dendrite of L2/3 neurons in S1, 0.2 μg of pCAG-tTA2, 0.5 μg of pBS-TRE-mTQ2 and 1 μg of pGP-CAG-Voltron2 plasmids were injected. Electric pulses (a single 10-ms poration pulse at 72 V, followed by five 50-ms driving pulses at 42 V with 950-ms intervals) were delivered toward the mediolateral axis of the brain with forceps-type electrodes (5-mm diameter, LF650P5, BEX) and an electroporator (CUY21EX, BEX).

Voltage imaging of acute brain slices

Voltage imaging with Voltron2 was performed in acute brain slices of P4–11 ICR mice (male and female) subjected to in utero electroporation at E12. Mice were anesthetized in ice and decapitated. The brain was immediately collected and placed in cold and O₂-saturated ACSF. The brain was mounted on a silicone rubber block (Togawa rubber) and sliced using a microslicer (Dosaka EM) at 300-μm thickness. The slices were incubated in O₂-saturated ACSF containing 50 nM Janelia Fluor HaloTag Ligand 549 (GA1110, Promega) at room temperature for 1 h. After placing on a custom-made silicone chamber, the slices were then washed under the perfusion of O₂-saturated ACSF for 1 h (2 h for control experiment) at room temperature. For clearing, the brain slices were perfused with SeeDB-Live for 1 h.

The chamber was set under an FV1000MPE microscope (Olympus/Evident) with Fluoview FV10-ASW software (Olympus/Evident, RRID: SCR_014215) and a ×25 NA 1.05 water-immersion objective lens (Olympus/Evident, XLPLN25XWMP). Immersion was performed with water and 15.6% (vol/vol) TDE/ddH₂O (refractive index 1.363) for controls and SeeDB-Live samples, respectively. The correction collar was turned to the appropriate position. For epifluorescence imaging, a mercury arc lamp was used. GFP (U-MNIBA3: Ex 470–495 nm, Di 505 nm, Em 510–550 nm) and RFP filter set (U-MWIG3: Ex 530–550 nm, Di 570 nm, Em > 575 nm) were used for GCaMP and Voltron2₅₄₉, respectively. Epifluorescence was imaged with a high-speed CCD camera (MiCAM02-HR or MC03-N256, BrainVision) at 0.3–7 ms per frame. For two-photon imaging of GCaMP6f, a femtosecond laser (InSight DeepSee, SpectraPhysics) was tuned to 920 nm. Image data were analyzed with ImageJ. Small drifts were corrected by the Image Stabilizer plugin. ROIs were created manually. After fluorescence intensity was obtained, the data were analyzed with MATLAB software (MathWorks). The F₀ was calculated as temporal median filtering (100-frame window). For peak detection, the ‘findpeaks’ function was applied. The threshold was set as the mean plus three times the standard deviation. Voltage changes within a mitral cell (single-trial data) were visualized with BV Workbench (BrainVision). A two-dimensional mean filter (3 × 3 pixels), drift removal (polyfit, degree 3) and a Savitzky–Golay filter (32 points, window size of five frames) were applied. For the spike-triggered averaged video, 65 events of backpropagating action potentials were averaged based on the spike timing at the soma.

Evaluation of BSA permeability in the brain in vivo

C57BL/6N mice (2- to 4-month-old, male and female) were used. Surgery and imaging were performed using ketamine (Daiichi-Sankyo) and xylazine (Bayer; 80 mg per kg body weight and 16 mg per kg body weight, respectively) anesthesia. During surgery, the depth of anesthesia was assessed by the toe-pinch reflexes, and supplemental doses were added when necessary. A head holder for mice (SGM-4, Narishige) was used for surgery. Body temperature was maintained with a heating pad (Akizuki, M-08908). For the imaging, a craniotomy (~5 mm in diameter) was made over S1 using a dental drill with a 0.5-mm drill tip. A silicone sealant, Kwik-Sil (KWIK-SIL, WPI), was mounted surrounding the craniotomy. The dura matter was carefully removed by a micro hook (durotomy; 10065-15, Muromachi Kikai). ACSF-HEPES (145 mM NaCl, 5 mM KCl, 2 mM CaCl₂, 1 mM MgCl₂, 10 mM HEPES, pH 7.3) was used to prepare the control and SeeDB-Live/ACSF-HEPES (refractive index 1.366). BSA-CF594 (1 mg; 20290, biotium) was dissolved in 100 μl SeeDB-Live/ACSF-HEPES. SeeDB-Live/ACSF-HEPES (50–100 μl; 1% BSA-CF594) was mounted onto the brain surface. The solution was stirred for 1 h using a gelatin sponge (Spongel, LTL Pharma). Mice were euthanized with an overdose of pentobarbital (100–150 mg per kg body weight, i.p.) and decapitated. The brain was embedded in OTC compound (4583, Sakura Finetek) and frozen with liquid nitrogen. The frozen sections were made with a cryostat (CM3050S, Leica) and immediately imaged with an inverted microscope (DMI600B, Leica) equipped with a ×5 NA 0.1 dry objective lens and controlled by LAS AF software (Leica).

In vivo imaging of the mouse brain

Adult Thy1-YFP-H mice (1- to 6-month-old, male and female) were anesthetized with a mixture of ketamine (Daiichi-Sankyo; 80 mg kg⁻¹ body weight) and xylazine (Bayer; 16 mg kg⁻¹ body weight); 15% mannitol solution (3 ml per 100 g body weight; Sigma-Aldrich, M4125) was then administered intraperitoneally. We made a 3 × 6-mm² cranial window with a dental drill over the right cortical hemisphere. After the durotomy, bleeding was stopped with a gelatin sponge (LTL Pharma, Spongel). The brain surface was perfused with ACSF-HEPES, then switched to SeeDB-Live/ACSF-HEPES and perfused for 1 h at a flow rate of 1.5 ml min⁻¹. The fluorescence of L5ET neurons was imaged using a two-photon microscope (MM201, Thorlabs) equipped with a ×25 NA 1.05 water-immersion objective lens (Olympus/Evident, XLPLN25XWMP) and ThorImageLS software (Thorlabs). The correction collar was turned to the appropriate positions (refractive index ~1.34 for control and ~1.363 for SeeDB-Live). A 920-nm femtosecond laser (ALCOR 920-4 Xsight, SPARK LASERS) was used.

In vivo calcium imaging from mouse V1

Anesthetized adult C57BL6/J mice (~7-week-old, male and female) were used for in vivo calcium imaging of V1. Under isoflurane anesthesia (2%) together with calprofen (10 mg per kg body weight), atropine (0.3 mg per kg body weight) and dexamethasone (2 mg per kg body weight), a craniotomy and durotomy was performed over the V1 (2.2-mm square). Half of the exposed cortex was covered with a piece of square coverslip (2 × 1 mm), and the other half was directly in contact with an extracellular solution for a subsequent pipette insertion and SeeDB-Live/ACSF-HEPES application. Anesthesia was continued at a lower concentration of isoflurane (0.125–0.5%), supplemented with chlorprothixene (1 mg per kg body weight, Sigma)⁶⁹. Body temperature was maintained at 37 °C using a feedback-controlled heating pad. Then, the mice were placed under a two-photon microscope (Bermago II, Thorlabs).

For in vivo two-photon calcium imaging, we used jGCaMP8m or a synthetic calcium sensor Cal-520 AM. jGCaMP8m expression was achieved by AAV-DJ-Syn-jGCaMP8m-WPRE (4.1 × 10¹⁴ GCs per ml, 150 nl at a depth of 350 μm, three sites 200 μm apart), and jGCaMP8m was excited at 980 nm (MaiTai DeepSee eHP, SpectraPhysics). Cal-520 was introduced by bolus loading⁷⁰. Cal-520 AM (AAT Bioquest) was dissolved in 4 μl DMSO containing 20% pluronic-127, and was diluted with HEPES-based ACSF (145 mM NaCl, 5 mM KCl, 2 mM CaCl₂, 1 mM MgCl₂, 10 mM HEPES) to a final concentration of 570 μM. The Cal-520 AM solution also included 50 μM Alexa Fluor 594 (Sigma) to visualize dye-loading pipettes (at 1,070 nm excitation by Fidelity-2, Coherent). The pipette was inserted and advanced obliquely under the two-photon microscope, to target the depth of ~420 μm under the coverslip. The same pipettes were also used to record visual response of local field potential at multiple sites along the pipette track, to ensure that the retinotopic position of the dye-loading site was in the monocular zone of V1 (ref. ⁶⁹). Cal-520 AM solution was pressure injected (150 mbar, 2 min), and after an incubation time of 1 h, two-photon imaging experiments were performed. Two-photon excitation of Cal-520 was at 920 nm (MaiTai DeepSee eHP, SpectraPhysics). A water-immersion objective lens without a collar was used for V1 imaging.

Visual stimulation was presented at an LCD monitor (iPad 3/4 Retina Display, Adafruit, refresh rate of 60 Hz, gamma corrected), which was placed contralateral to the craniotomy side, covering an angle of 100° horizontal and 80° vertical in the visual hemifield. The monitor was moved and placed at a position that could evoke maximal full-field calcium response. The stimulation was controlled by MATLAB programs originally developed by Cortex Lab at University College London⁶⁹. Full-screen sinusoidal drifting gratings were presented randomly at one of the eight directions (0–315°, 45° step) together with a blank condition.

After obtaining a visual response to the drifting gratings in the control condition of ACSF-HEPES (more than 15 repeats), solution under the objective lens (~1 ml) was replaced with SeeDB-Live/ACSF-HEPES. After an additional 1-h incubation, we confirmed that baseline brightness was increased for jGCaMP8m and visual response to the same set of drifting gratings was obtained in the presence of SeeDB-Live/ACSF-HEPES.

Calcium traces for each cell were computed offline using a Python version of Suite2p⁶². ROIs were drawn over cells, and fluorescence signal for each ROI was extracted. Neuropil contamination was not corrected, considering correction factor could be different in the presence and absence of SeeDB-Live. Baseline fluorescence (F₀) was defined as the 25% percentile of the fluorescence signals in the sliding window of 30–0 s before each specific time point.

Visual response for each cell was further analyzed using MATLAB. First, visual responsiveness was evaluated by Kruskal–Wallis test using calcium response across eight directions plus the blank conditions. Orientation selectivity was judged by Kruskal–Wallis test using the response at eight-direction conditions.

For orientation selective cells, preferred orientation, OSI and tuning width were computed as follows. Orientation response was fitted with the sum of two Gaussian curves. The preferred direction was defined as an angle that has the peak of the fitted Gaussian curve. The OSI was defined as the depth of modulation from the preferred orientation to its orthogonal orientation⁷¹.

$${\theta }_{{\text{ortho}}}\,={\theta }_{{\text{pref}}}\,+\,\pi /2,\,{\text{as}}\,({R}_{{\text{pref}}}\,\mbox{--}{R}_{\,{\text{ortho}}})/\,({R}_{{\text{pref}}}\,+{R}_{{\text{ortho}}})$$

The tuning width was measured as full width at half maximum height of the fitted curve. The maximum response was average calcium signal at an orientation closest to the preferred orientation.

Surgery for the mouse olfactory bulb

AAV1-Syn-FLEX-Volton2-ST-WPRE (Addgene, 172907-AAV1) was injected into 2-month-old Pcdh21-Cre mice (male and female) for in vivo voltage imaging. Surgery was performed under ketamine (Daiichi-Sankyo) and xylazine (Bayer; 80 mg and 16 mg per kg body weight, respectively) anesthesia. A small circle (~1 mm in diameter) was made with a dental drill over the right olfactory bulb. The AAV1 vector was injected into the center of the dorsal olfactory bulb (200-µm depth), over a 12-min period, using a Nanoject III injector (Drummond Scientific Company). The total volume of the AAV solution was 120 nl. A custom-made headpost was attached with dental cement (GC Dental Products Corporation, UNIFAST II).

Before imaging, mice were subjected to surgery under ketamine and xylazine (80 mg and 16 mg per kg body weight, respectively) anesthesia. After a craniotomy and durotomy over the right olfactory bulb, a silicone sealant rim was created around the window to maintain fluid over the brain surface. Around 50–100 μl of ACSF-HEPES or SeeDB-Live/ACSF-HEPES was applied onto the brain surface for 1 h. After removing a silicone sealant rim, a circular coverslip (2-mm diameter) was mounted on the brain surface and fixed with a superglue and silicone sealant.

In vivo calcium imaging in the mouse olfactory bulb

Anesthetized adult Thy1-GCaMP6f mice (2- to 4-month-old, male and female) were used for imaging. The fluorescence of mitral cells was imaged using an FV1000MPE microscope (Olympus/Evident) with Fluoview FV10-ASW software (Olympus/Evident, RRID: SCR_014215) and a ×25 NA 1.05 objective lens (Olympus/Evident, XLPLN25XWMP). Immersion was performed using water or 15.6% (vol/vol) TDE/ddH₂O (refractive index 1.363) for control or SeeDB-Live samples, respectively. The correction collar was turned to the appropriate positions (refractive index ~1.33 for control and ~1.363 for SeeDB-Live). Small drifts were corrected by the Image Stabilizer plugin. ROIs were created manually. After fluorescence intensity was obtained, the data were analyzed with MATLAB software (MathWorks). The ΔF was normalized to the mean intensity for 10 s before stimulus onset (F₀), and the response amplitude was defined as the averaged ΔF/F₀ during the first 10 s after stimulus onset.

In vivo voltage imaging in the mouse olfactory bulb

AAV1-Syn-FLEX-Volton2-ST-WPRE (Addgene, 172907-AAV1) was injected into the olfactory bulb of Pcdh21-Cre mice before the imaging experiments. The surface of the olfactory bulb was immersed with ACSF-HEPES containing 50 nM Janelia Fluor HaloTag Ligand 549 to label Voltron2 for 1 h, followed by a 1-h washout in normal ACSF-HEPES. SeeDB-Live treatment was then performed for 1 h. Mice were placed on an FV1000MPE microscope (Olympus/Evident) and a ×25 NA 1.05 water-immersion objective lens (Olympus/Evident, XLPLN25XWMP). Immersion was performed using water and 15.6% (vol/vol) TDE/ddH₂O (refractive index, 1.363) for controls and SeeDB-Live samples, respectively. The correction collar was turned to the appropriate position. For excitation, a mercury arc lamp was used. RFP filter set (U-MWIG3: Ex = 530–550 nm, Di = 570 nm, Em > 575 nm) was used for Voltron2₅₄₉-ST, respectively. Epifluorescence was imaged with a high-speed CCD camera (MC03-N256, BrainVision) at 1–7 ms per frame.

Imaging data were analyzed using ImageJ. Small drifts were corrected using the Image Stabilizer plugin. ROIs were generated using a machine learning-based image segmentation tool (ilastik)⁷². Further analysis was performed using MATLAB software (MathWorks). ROIs smaller than five pixels and/or outside the glomeruli were excluded. F₀ was calculated by temporal median filtering (25 frames window). The cross-correlation matrix was made from the time courses of each ROI. k-means clustering was applied with k = 11 (the number of glomeruli). To define subclusters, the spike synchronicity index between ROIs was calculated. Spikes were detected using the findpeaks function. Thresholds were set at mean + 1.5 times the s.d. and mean + 3 times the s.d. for the clustering and final spike detection, respectively. A synchronous event was defined when the spike in one ROI was detected within ±7 ms (21-ms window) of the spike in another ROI. The synchronicity index was calculated by dividing the number of synchrony events by half of the total number of spikes in two ROIs. Hierarchical clustering was used to define subclusters. The threshold was set at 10% of the maximum distance in the dendrogram. To make a reference for the phase analysis, the averaged ΔF/F₀ was calculated from all glomeruli. The ROIs for the glomeruli were created manually.

Olfactometry

Odor stimulation using an olfactometer was described previously⁴⁶. The olfactometer consists of an air pump (AS ONE, 1-7482-11), activated charcoal filter (Advantec, TCC-A1-S0C0 and 1TS-B) and flowmeters (Kofloc, RK-1250). Valeraldehyde (TCI, V0001) and amyl acetate (FUJIFILM-Wako, 018-03623) were diluted at 1% (vol/vol) in 1 ml mineral oil in a 50-ml centrifuge tube. Saturated odor vapor in the centrifuge tube was delivered to a mouse nose with a Teflon tube. The tip of the Teflon tube was located 2 cm from the nose of the animals. Diluted odors were delivered for 5 s at 1 l min⁻¹.

In vivo chronic imaging through a large cranial window

We made a large cranial window with a PVDC wrapping film, silicone plug and a coverslip as described previously³⁷. We created a 3 × 6-mm² cranial window over the right cortex using a dental drill. After durotomy, bleeding was stopped with a gelatin sponge (Spongel, LTL Pharma). The brain surface was perfused with ACSF-HEPES, then switched to SeeDB-Live/ACSF-HEPES for 1 h at 1.5 ml min⁻¹. A commercially available PVDC wrapping film (Asahi Kasei, Asahi Wrap or Saran Wrap, ~11-μm thick) with a ~1-mm margin was applied to the cranial window and firmly attached to the skull with superglue. Agarose (1.5% wt/vol) with or without 19.3% wt/vol glycerol (refractive index, 1.363) was filled between the film and a glass coverslip (Matsunami 18 × 18 no.1). After imaging, the agarose was replaced with a transparent silicone elastomer (GC, Exaclear) and a glass coverslip was applied on top. The coverslip was then sealed with waterproof film. To minimize inflammation after the surgery, dexamethasone sodium phosphate (4 mg ml⁻¹) was administered intramuscularly into the quadriceps muscle at a dose of 2 µg per gram of body weight immediately before surgery. Additionally, carprofen (0.50 mg ml⁻¹) was administered via subcutaneous injection at a dosage of 5 mg per kg body weight once daily for 3 consecutive days following the surgery to manage postoperative pain and inflammation. jGCaMP8m was introduced by the combination of the injection of 300 nl AAV-DJ-CAG-FLEX-jGCaMP8m-P2A-CyRFP (1.8 × 10¹¹ GCs per ml) to S1 and intravenous injection of 100 μl AAV.PHPeB-mscRE4-minBGpromoter-iCre-WPRE-hGHpA (7.4 × 10¹⁰ GCs per ml; Addgene, 163476)⁷³ to the retro-orbital venous sinus. A two-photon microscope (MM201, Thorlabs) equipped with a ×25 NA 1.05 water-immersion objective lens (Olympus/Evident, XLPLN25XWMP) and a 920-nm femtosecond laser (ALCOR 920-4 Xsight, SPARK LASERS) was used. Immersion was performed using ddH₂O for control and 15.6% (vol/vol) TDE/ddH₂O (refractive index, 1.363) for SeeDB-Live/ACSF-HEPES. The correction collar was turned to the appropriate position. The cranial window with a plastic wrap was carefully removed with a scalpel for repeated clearing experiments. Whisker stimulation was performed with air puffs produced by Picospritzer (Parker). Inflammation should be minimized during the procedure as this can potentially trigger the immune response to BSA. Image data were analyzed with MATLAB (MathWorks). Small drifts were corrected by the rigid motion-correction program (https://github.com/flatironinstitute/NoRMCorre/). ROIs were created manually. The median image was used to calculate the F₀.

In vivo epifluorescence voltage imaging from the mouse S1

For voltage imaging of L2/3 neuron somata from P17–30 ICR mice (male and female) subjected to in utero electroporation at E15, surgery and imaging were performed under urethane (Sigma, U2500) anesthesia (1.9 g per kg body weight). For imaging of the dendrites from the 2-month-old ICR mice, surgery was performed under isoflurane anesthesia (2.5% for induction, 1–1.3% for surgery, flow rate of 0.3–0.6 l min⁻¹). A custom-made headpost was attached with a dental cement (GC Dental Products Corporation, UNIFAST II). After a craniotomy and durotomy (3–5 mm in diameter) over S1, a silicone sealant rim was created around the window to maintain fluid over the brain surface. In total, 50–100 μl of ACSF-HEPES containing 50 nM Janelia Fluor HaloTag Ligand 549 (GA1110, Promega) was applied onto the brain surface for 1 h. After removing the mounted solution, 50–100 μl of ACSF-HEPES was mounted for 1 h (2 h for control experiment). For clearing, SeeDB-Live/ACSF-HEPES was applied onto the brain surface for 1 h. After removing a silicone sealant rim, a circular coverslip (3 mm in diameter, thickness of 0.17 mm for P17–30, 0.34 mm for 2-month-old mice) was fixed with superglue.

The mice were placed on an FV1000MPE microscope (Olympus/Evident) and a 25x NA 1.05 water-immersion objective lens (Olympus/Evident, XLPLN25XWMP). Immersion was performed using water and 15.6% (vol/vol) TDE/ddH₂O (refractive index, 1.363) for controls and SeeDB-Live samples, respectively. The correction collar was turned to the appropriate position. For excitation, a mercury arc lamp was used. An RFP filter set (U-MWIG3: Ex 530–550 nm, Di 570 nm, Em >575 nm) was used for Voltron2₅₄₉. Epifluorescence was conducted with a high-speed CCD camera (MC03-N256, BrainVision) at 1–3 ms per frame. Image data were analyzed with MATLAB (MathWorks). Small drifts were corrected by the rigid motion-correction program (https://github.com/flatironinstitute/NoRMCorre/). ROIs were created manually. The F₀ was calculated by temporal median filtering (100-frame window). For video, a 3D median filter (1 pixel radius) was applied.

In vivo two-photon voltage imaging from the mouse S1

AAV1:pAAV-EF1a-DIO-JEDI-2P-Kv-WPRE (Addgene viral prep no. 179459-AAV1) and AAV1:pENN.AAV.CamKII 0.4.Cre.SV40 (Addgene viral prep no. 105558-AAV1) were injected at a 3:1 ratio into 2-month-old C57BL/6N mice (male and female). Surgery was performed under ketamine (Daiichi-Sankyo) and xylazine (Bayer; 80 mg and 16 mg per kg body weight, respectively) anesthesia. A small circle (~1 mm in diameter) was made with a dental drill over the right S1. The AAV1 vectors were injected into the right S1 (3 mm lateral to the midline, 1 mm caudal to bregma at a depth of 300 μm), over a 12-min period, using a Nanoject III injector (Drummond Scientific Company). The total volume of the AAV solution was 200 nl. A custom-made headpost was attached with a dental cement (GC Dental Products Corporation, UNIFAST II).

Before imaging, mice were subjected to surgery under isoflurane anesthesia (2.5% for induction, 1–1.3% for surgery, flow rate of 0.3–0.6 l min⁻¹). After a craniotomy and durotomy over the right S1, 50–100 μl of SeeDB-Live/ACSF-HEPES was applied onto the brain surface for 1–2 h. A circular coverslip (3 mm in diameter, thickness of 0.34 for 2-month-old ICR mice) was mounted on the brain surface and fixed with a superglue.

The mice were placed under a resonant two-photon microscope (MM201, Thorlabs) equipped with a ×25 NA 1.05 water-immersion objective lens (Olympus/Evident, XLPLN25XWMP) and ThorImageLS software (Thorlabs). Immersion was performed using 15.6% (vol/vol) TDE/ddH₂O (refractive index, 1.363). The correction collar was turned to the appropriate positions (refractive index ~1.33 for control and ~1.363 for SeeDB-Live). A 920-nm femtosecond laser (ALCOR 920-4 Xsight, SPARK LASERS) was used. The frame rate was >113 Hz. Image data were analyzed with MATLAB (MathWorks). Small drifts were corrected by the rigid motion-correction program (https://github.com/flatironinstitute/NoRMCorre/). ROIs were created manually. The F₀ was calculated by temporal median filtering (15-frame window).

Behavioral assays

Behavioral experiments were performed to evaluate the acute and chronic toxicity of SeeDB-Live treatment. C57BL/6N mice (2-month-old, male and female) were used. We made a large cranial window with a plastic film window (3 × 6 mm²) for the optical clearing of the right cortex as described above. At ≥3 days after surgery, mice were anesthetized with isoflurane (2% for induction, 0.7–1.0% during surgery) and injected with 15% mannitol solution (3 ml per 100 g body weight; Sigma-Aldrich, M4135). The plastic film and silicone were carefully removed. Then, SeeDB-Live/ACSF-HEPES or ACSF-HEPES was perfused onto the brain surface at a rate of 1.5 ml min⁻¹ for 1 h.

For acute behavioral experiments, head-fixed mice were placed on a custom-built treadmill 1 h after recovery from anesthesia. The treadmill consisted of a freely rotating roller with eight embedded magnets, which were detected by a sensor to monitor locomotion. Locomotion was recorded at 10 kHz for 10 min using PowerLab (AD Instruments). After the experiment, the film was reapplied to the cranial window and firmly secured to the skull with superglue. A transparent silicone elastomer (GC, Exaclear) and a glass coverslip (Matsunami 18 × 18 no.1) were then applied on top of the film.

For long-term behavioral experiments, the film was reapplied to the cranial window and firmly secured to the skull with superglue after the application of SeeDB-Live/ACSF-HEPES or ACSF-HEPES for 1 h. A transparent silicone elastomer (GC, Exaclear) and a glass coverslip (Matsunami, 18 × 18 mm, no. 1) were then placed on top of the wrap. A cortical ischemia model was used for control experiments. Photosensitive dye (150 μg per gram of body weight; Rose Bengal) was i.p. injected, and the right cortical surface was irradiated through the skull with a white LED (Leica, KL300LED, 50 W) for 10 min.

For locomotion measurements, mouse locomotion in an open chamber (30 × 25 cm) was recorded for 10 min using a USB camera (eMeet, SmartCam C960). The camera was placed above the chamber. Locomotion was tracked and analyzed with ezTrack⁷⁴ under uniform ambient lighting.

To assess changes in motor function, a wire hanging test was performed as described⁵⁵. Mice were placed on a wire mesh (1-mm diameter wire, 10 × 10-mm grid) and allowed to grip the mesh. The wire mesh was then flipped, and the hanging time (the time of the fall) was measured up to 60 s. A soft bedding was placed under the wire mesh. The test was recorded with a video camera, and the hanging time was analyzed from the footage. After the test, the mice were returned to their home cages. Wire hanging requires motor cortex but does not require pretraining.

To monitor the food intake, mice were individually housed in cages with ad libitum access to food and water. A pre-weighed portion of standard chow was provided at the start of the test, and the remaining food was weighed every 24 h to determine the amount consumed using a feeder box (MF-1, SHINFACTORY). Mice were kept under a 12-h light–dark cycle.

Immunohistochemistry

Immunohistochemistry was performed to evaluate the inflammatory response to SeeDB-Live treatment in vivo. C57BL/6N mice (2-month-old to 4-month-old, male and female) were used. In addition, a 10-month-old mouse was used for the long-term SeeDB-Live treatment experiment. In this mouse, jGCaMP8m was introduced by a 300-nl injection of AAV-DJ-CAG-FLEX-jGCaMP8m-P2A-CyRFP (1.8 × 10¹¹ GCs per ml) into S1 and an intravenous retro-orbital injection of 100 μl AAV. PHPeB-mscRE4-minBGpromoter-iCre-WPRE-hGHpA (7.4 × 10¹⁰ GCs per ml; Addgene, 163476). We made a large cranial window with a plastic film window (3 × 6 mm²) on the right cortex as described above. Ten days after the surgery, mice were anesthetized with isoflurane (2% for induction, 0.7–1.0% during surgery) and injected with 15% mannitol solution (3 ml per 100 g body weight; Sigma-Aldrich, M4135). The film and silicone were carefully removed. Then, either SeeDB-Live/ACSF-HEPES or ACSF-HEPES was perfused onto the brain surface at a rate of 1.5 ml min⁻¹ for 1 h. Then, the cranial window was sealed with plastic film, silicone and the coverslip, as described above until the next day. The timeline was determined based on the standard chronic imaging protocol with open skull surgery⁷⁵. In the mouse with repeated SeeDB-Live treatments, the treatment was initiated immediately after the window surgery and was repeatedly performed over a period of 7 months (day 0, 3, 7, 80, 100, 120 and 218).

Mice were deeply anesthetized by an overdose of pentobarbital (i.p. injection; Dainippon Sumitomo Pharma). Anesthetized mice were perfused with 4% PFA in PBS. Excised brain samples were then fixed with 4% PFA in PBS at 4 °C overnight. The samples were cryoprotected with 30% sucrose at 4 °C overnight and embedded in OCT compound (Sakura).

Frozen brains were cut into 16-μm-thick coronal sections using a cryostat (Leica). Sections were blocked with 10% normal donkey serum or 1% BSA in PBS for 1 h and then incubated with primary antibodies in 10% normal donkey serum or 1% BSA in PBS at 4 °C overnight. After washing three times in PBS with 0.05% Tween20, sections were incubated with secondary antibodies for 2 h at room temperature. Rabbit anti-Iba1 (1:500 dilution; Wako, 019-19741), mouse anti-NeuN (1:500 dilution; Millipore, MAB377), rabbit anti-Sox9 (1:500 dilution; MilliporeSigma, AB5535), rat anti-CD16/32 (1:250 dilution; BD Pharmingen, 553142), mouse anti-glial fibrillary acidic protein (1:500 dilution; MilliporeSigma, G3893) and rabbit cleaved Caspase-3 (1:250 dilution; Cell Signaling Technology, 9664S) were used as primary antibodies. Alexa Fluor 488-conjugated donkey anti-mouse IgG (1:500 dilution; Thermo Fisher, A21202), Alexa Fluor 647-conjugated donkey anti-rabbit IgG (1:500 dilution; Thermo Fisher, A31573) and Alexa Fluor 647-conjugated donkey anti-rat IgG (1:500 dilution; Thermo Fisher, A48272) were used as secondary antibodies. Nuclei were stained with 0.1% DAPI. Images were acquired using a spinning disk confocal microscope (Andor, Dragonfly 200) mounted on an inverted microscope (Nikon, Eclipse Ti2) and controlled by Fusion software (Andor).

Microglia in the S1 region were analyzed. The cells were manually counted to calculate the density. Microglia morphology was manually traced, and 3D analysis (soma volume, soma roundness, branch number, maximum branch length and total branch length) was performed using Neurolucida software (MBF Bioscience). Roundness was defined as (4 × a / π) / b², where a is the soma area and b is the maximum diameter of the soma in each optical section. Roundness values were calculated at all z-levels per cell, and the median was used for analysis. Cells were selected from the S1 L2/3 region in a blinded manner.

Statistical analysis

MATLAB (2023b) was used for statistical analysis. Sample sizes were not predetermined. The number of animals is indicated in figure legends. All statistical tests were performed using two-sided tests. Welch’s t-test was used in Fig. 3k. Wilcoxon’s rank-sum test was used in Figs. 3b,c,e and 4n and Extended Data Figs. 3f,g, 6e–g,k,l,p,q and 7e. Wilcoxon’s signed-rank test was used in Figs. 2d,e, 4m and 5e and Extended Data Figs. 5f,g, 7d and 8e. Wilcoxon’s rank-sum test combined with Holm–Bonferroni correction was used in Fig. 1j,m and Extended Data Fig. 1h. A multiple-comparison test with Bonferroni correction was used in Fig. 3g,h and Extended Data Figs. 2c,d and 6m,n. Dunnett’s multiple-comparison test was used in Fig. 1c,g,h and Extended Data Figs. 1b,i and 2a,b. A Tukey–Kramer multiple-comparison test was used in Figs. 3m,n and 4o,p and Extended Data Fig. 7g–k. Repeated-measures analysis of variance was used in Fig. 5p. In the box plots, the middle bands indicate the median; boxes indicate the first and third quartiles; and the whiskers indicate the minimum and maximum values. Data inclusion/exclusion criteria are described in figure legends. Numerical data are summarized in Supplementary Table 3. Due to space limitations of the figures and figure legends, all the statistical details (sample size, P values and statistical tests used) are summarized in Supplementary Table 4.

Materials availability

A new plasmid generated in this study (pCAG-GCaMP6f) has been deposited to Addgene (no. 249680).

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Data availability

Raw image data used in this study has been deposited to the SSBD:repository (https://doi.org/10.24631/ssbd.repos.2025.11.484)⁷⁶. Detailed protocols and technical tips are described in SeeDB Resources (https://sites.google.com/site/seedbresources/). Requests for additional program codes and data generated and/or analyzed during the current study should be directed to and will be fulfilled upon reasonable request by the corresponding author.

References

Helmchen, F. & Denk, W. Deep tissue two-photon microscopy. Nat. Methods 2, 932–940 (2005).
Article CAS PubMed Google Scholar
Ji, N. Adaptive optical fluorescence microscopy. Nat. Methods 14, 374–380 (2017).
Article CAS PubMed Google Scholar
Chung, K. et al. Structural and molecular interrogation of intact biological systems. Nature 497, 332–337 (2013).
Article CAS PubMed PubMed Central Google Scholar
Dodt, H. U. et al. Ultramicroscopy: three-dimensional visualization of neuronal networks in the whole mouse brain. Nat. Methods 4, 331–336 (2007).
Article CAS PubMed Google Scholar
Erturk, A. et al. Three-dimensional imaging of solvent-cleared organs using 3DISCO. Nat. Protoc. 7, 1983–1995 (2012).
Article CAS PubMed Google Scholar
Hama, H. et al. ScaleS: an optical clearing palette for biological imaging. Nat. Neurosci. 18, 1518–1529 (2015).
Article CAS PubMed Google Scholar
Hama, H. et al. Scale: a chemical approach for fluorescence imaging and reconstruction of transparent mouse brain. Nat. Neurosci. 14, 1481–1488 (2011).
Article CAS PubMed Google Scholar
Ke, M. T., Fujimoto, S. & Imai, T. SeeDB: a simple and morphology-preserving optical clearing agent for neuronal circuit reconstruction. Nat. Neurosci. 16, 1154–1161 (2013).
Article CAS PubMed Google Scholar
Ke, M. T. et al. Super-resolution mapping of neuronal circuitry with an index-optimized clearing agent. Cell Rep. 14, 2718–2732 (2016).
Article CAS PubMed Google Scholar
Richardson, D. S. & Lichtman, J. W. Clarifying tissue clearing. Cell 162, 246–257 (2015).
Article CAS PubMed PubMed Central Google Scholar
Susaki, E. A. et al. Whole-brain imaging with single-cell resolution using chemical cocktails and computational analysis. Cell 157, 726–739 (2014).
Article CAS PubMed Google Scholar
Richardson, D. S. & Lichtman, J. W. SnapShot: tissue clearing. Cell 171, 496 (2017).
Article CAS PubMed Google Scholar
Ueda, H. R. et al. Tissue clearing and its applications in neuroscience. Nat. Rev. Neurosci. 21, 61–79 (2020).
Article CAS PubMed PubMed Central Google Scholar
Wen, X., Mao, Z. Z., Han, Z. Z., Tuchin, V. V. & Zhu, D. Skin optical clearing by glycerol solutions: mechanism. J. Biophotonics 3, 252–252 (2010).
Article CAS Google Scholar
Cicchi, R., Pavone, F. S., Massi, D. & Sampson, D. D. Contrast and depth enhancement in two-photon microscopy of human skin by use of optical clearing agents. Opt. Express 13, 2337–2344 (2005).
Article CAS PubMed Google Scholar
Wang, J., Zhang, Y., Xu, T. H., Luo, Q. M. & Zhu, D. An innovative transparent cranial window based on skull optical clearing. Laser Phys. Lett. 9, 469–473 (2012).
Article CAS Google Scholar
Zhu, D., Larin, K. V., Luo, Q. M. & Tuchin, V. V. Recent progress in tissue optical clearing. Laser Photon. Rev. 7, 732–757 (2013).
Article CAS PubMed PubMed Central Google Scholar
Ou, Z. et al. Achieving optical transparency in live animals with absorbing molecules. Science 385, eadm6869 (2024).
Article CAS PubMed PubMed Central Google Scholar
Feng, W., Liu, C. J., Wang, L. S. & Zhang, C. An optical clearing imaging window: realization of mouse brain imaging and manipulation through scalp and skull. J. Cereb. Blood Flow Metab. 43, 2105–2119 (2023).
Article PubMed PubMed Central Google Scholar
Boothe, T. et al. A tunable refractive index matching medium for live imaging cells, tissues and model organisms. eLife 6, e27240 (2017).
Article PubMed PubMed Central Google Scholar
Sugimoto, S. & Kinjo, Y. Instantaneous Clearing of Biofilm (iCBiofilm): an optical approach to revisit bacterial and fungal biofilm imaging. Commun. Biol. 6, 38 (2023).
Iijima, K., Oshima, T., Kawakami, R. & Nemoto, T. Optical clearing of living brains with MAGICAL to extend imaging. iScience 24, 101888 (2021).
Arbelaez-Camargo, D. et al. Osmolality predictive models of different polymers as tools in parenteral and ophthalmic formulation development. Int. J. Pharm. 543, 190–200 (2018).
Article CAS PubMed Google Scholar
Besarab, A., DeGuzman, A. & Swanson, J. W. Effect of albumin and free calcium concentrations on calcium binding in vitro. J. Clin. Pathol. 34, 1361–1367 (1981).
Article CAS PubMed PubMed Central Google Scholar
Majorek, K. A. et al. Structural and immunologic characterization of bovine, horse, and rabbit serum albumins. Mol. Immunol. 52, 174–182 (2012).
Article CAS PubMed PubMed Central Google Scholar
Frye, R. M., Lees, H. & Rechnitz, G. A. Magnesium-albumin binding measurements using ion-selective membrane electrodes. Clin. Biochem. 7, 258–270 (1974).
Article CAS PubMed Google Scholar
Keck, C. H. C. et al. Color-neutral and reversible tissue transparency enables longitudinal deep-tissue imaging in live mice. Proc. Natl Acad. Sci. USA 122, e2504264122 (2025).
Article CAS PubMed PubMed Central Google Scholar
Franzesi, G. T. et al. In vivo optical clearing of mammalian brain. Preprint at bioRxiv https://doi.org/10.1101/2024.09.05.611421 (2024).
Sakaue-Sawano, A., Kobayashi, T., Ohtawa, K. & Miyawaki, A. Drug-induced cell cycle modulation leading to cell-cycle arrest, nuclear mis-segregation, or endoreplication. BMC Cell Biol. 12, 2 (2011).
Tan, J. et al. Limited oxygen in standard cell culture alters metabolism and function of differentiated cells. Embo. J. 43, 2127–2165 (2024).
Eiraku, M. et al. Self-organizing optic-cup morphogenesis in three-dimensional culture. Nature 472, 51–56 (2011).
Article CAS PubMed Google Scholar
Dembitskaya, Y. et al. Shadow imaging for panoptical visualization of brain tissue in vivo. Nat. Commun. 14, 6411 (2023).
Article CAS PubMed PubMed Central Google Scholar
Tonnesen, J., Inavalli, V. V. G. K. & Nägerl, U. V. Super-resolution imaging of the extracellular space in living brain tissue. Cell 172, 1108–1121 (2018).
Article PubMed Google Scholar
Velicky, P. et al. Dense 4D nanoscale reconstruction of living brain tissue. Nat. Methods 20, 1256–125 (2023).
Article CAS PubMed PubMed Central Google Scholar
Fujimoto, S. et al. Activity-dependent local protection and lateral inhibition control synaptic competition in developing mitral cells in mice. Dev. Cell 58, 1221–1136 (2023).
Article CAS PubMed Google Scholar
Liu, Z. H. et al. Sustained deep-tissue voltage recording using a fast indicator evolved for two-photon microscopy. Cell 185, 3408–3425 (2022).
Article CAS PubMed PubMed Central Google Scholar
Manita, S., Shigetomi, E., Bito, H., Koizumi, S. & Kitamura, K. In vivo wide-field and two-photon calcium imaging from a mouse using a large cranial window. J. Vis. Exp. https://doi.org/10.3791/64224 (2022).
Abdelfattah, A. S. et al. Sensitivity optimization of a rhodopsin-based fluorescent voltage indicator. Neuron 111, 1547–1563 (2023).
Article CAS PubMed PubMed Central Google Scholar
Weber, T. D., Moya, M. V., Kilic, K., Mertz, J. & Economo, M. N. High-speed multiplane confocal microscopy for voltage imaging in densely labeled neuronal populations. Nat. Neurosci. 26, 1642–1650 (2023).
Article CAS PubMed PubMed Central Google Scholar
Xiao, S. et al. Large-scale deep tissue voltage imaging with targeted-illumination confocal microscopy. Nat. Methods 21, 1094–1102 (2024).
Chong, E. et al. Manipulating synthetic optogenetic odors reveals the coding logic of olfactory perception. Science 368, eaba2357 (2020).
Article CAS PubMed PubMed Central Google Scholar
Spors, H. & Grinvald, A. Spatio-temporal dynamics of odor representations in the mammalian olfactory bulb. Neuron 34, 301–315 (2002).
Article CAS PubMed Google Scholar
Storace, D. A. & Cohen, L. B. Measuring the olfactory bulb input-output transformation reveals a contribution to the perception of odorant concentration invariance. Nat. Commun. 8, 81 (2017).
Schoppa, N. E. & Westbrook, G. L. Glomerulus-specific synchronization of mitral cells in the olfactory bulb. Neuron 31, 639–651 (2001).
Article CAS PubMed Google Scholar
Shusterman, R., Smear, M. C., Koulakov, A. A. & Rinberg, D. Precise olfactory responses tile the sniff cycle. Nat. Neurosci. 14, 1039–U1136 (2011).
Article CAS PubMed Google Scholar
Iwata, R., Kiyonari, H. & Imai, T. Mechanosensory-based phase coding of odor identity in the olfactory bulb. Neuron 96, 1139–1152 (2017).
Article CAS PubMed Google Scholar
Demas, J. et al. High-speed, cortex-wide volumetric recording of neuroactivity at cellular resolution using light beads microscopy. Nat. Methods 18, 1552–1552 (2021).
Article CAS PubMed Google Scholar
Ota, K. et al. Fast, cell-resolution, contiguous-wide two-photon imaging to reveal functional network architectures across multi-modal cortical areas. Neuron 109, 1810–1824 (2021).
Article CAS PubMed Google Scholar
Yu, C. H., Stirman, J. N., Yu, Y. Y., Hira, R. & Smith, S. L. Diesel2p mesoscope with dual independent scan engines for flexible capture of dynamics in distributed neural circuitry. Nat. Commun. 12, 6639 (2021).
Sofroniew, N. J., Flickinger, D., King, J. & Svoboda, K. A large field of view two-photon mesoscope with subcellular resolution for in vivo imaging. eLife 5, e14472 (2016).
Article PubMed PubMed Central Google Scholar
Lim, D., Chu, K. K. & Mertz, J. Wide-field fluorescence sectioning with hybrid speckle and uniform-illumination microscopy. Opt. Lett. 33, 1819–1821 (2008).
Article PubMed Google Scholar
Yokoyama, T. et al. A multicolor suite for deciphering population coding of calcium and cAMP in vivo. Nat. Methods 21, 897–907 (2024).
Article CAS PubMed PubMed Central Google Scholar
Wichmann, T. O., Damkier, H. H. & Pedersen, M. A brief overview of the cerebrospinal fluid system and its implications for brain and spinal cord diseases. Front. Hum. Neurosci. 15, 737217 (2022).
Article PubMed PubMed Central Google Scholar
Staudt, T., Lang, M. C., Medda, R., Engelhardt, J. & Hell, S. W. 2,2′-Thiodiethanol: a new water soluble mounting medium for high resolution optical microscopy. Microsc. Res. Tech. 70, 1–9 (2007).
Article CAS PubMed Google Scholar
Sampson, T., Krout I. N. & White, A. Wire hang assessment. https://doi.org/10.17504/protocols.io.3byl4qy9zvo5/v1 (2024).
Wang, B. S., Sarnaik, R. & Cang, J. H. Critical period plasticity matches binocular orientation preference in the visual cortex. Neuron 65, 246–256 (2010).
Article CAS PubMed PubMed Central Google Scholar
Dana, H. et al. Thy1-GCaMP6 transgenic mice for neuronal population in vivo. PLoS ONE 9, e108697 (2014).
Feng, G. P. et al. Imaging neuronal subsets in transgenic mice expressing multiple spectral variants of GFP. Neuron 28, 41–51 (2000).
Article CAS PubMed Google Scholar
Nagai, Y., Sano, H. & Yokoi, M. Transgenic expression of Cre recombinase in mitral/tufted cells of the olfactory bulb. Genesis 43, 12–16 (2005).
Article CAS PubMed Google Scholar
Swindells, J. F., Snyder, C., Hardy, R. C. & Golden, P. Viscosities of Sucrose Solutions at Various Temperatures: Tables of Recalculated Values, Vol. 440 (US Government Printing Office, 1958).
Stringer, C., Wang, T., Michaelos, M. & Pachitariu, M. Cellpose: a generalist algorithm for cellular segmentation. Nat. Methods 18, 100–106 (2021).
Article CAS PubMed Google Scholar
Pachitariu, M. & Stringer, C. Cellpose 2.0: how to train your own model. Nat. Methods 19, 1634–163 (2022).
Article CAS PubMed PubMed Central Google Scholar
Eiraku, M. et al. Self-organized formation of polarized cortical tissues from ESCs and its active manipulation by extrinsic signals. Cell Stem Cell 3, 519–532 (2008).
Article CAS PubMed Google Scholar
Konno, A. & Hirai, H. Efficient whole brain transduction by systemic infusion of minimally purified AAV-PHP.eB. J. Neurosci. Methods 346, 108914 (2020).
Ehler, E., Moore-Morris, T. & Lange, S. Isolation and culture of neonatal mouse cardiomyocytes. J. Vis. Exp. 6, 50154 (2013).
Aihara, S., Fujimoto, S., Sakaguchi, R. & Imai, T. BMPR-2 gates activity-dependent stabilization of primary dendrites during mitral cell remodeling. Cell Rep. 35, 109276 (2021).
Article CAS PubMed Google Scholar
Neher, E. Correction for liquid junction potentials in patch clamp experiments. Methods Enzymol. 207, 123–131 (1992).
Article CAS PubMed Google Scholar
Sun, X. C. et al. Functionally distinct neuronal ensembles within the memory engram. Cell 181, 410–423 (2020).
Article CAS PubMed PubMed Central Google Scholar
Sato, T. K., Haider, B., Häusser, M. & Carandini, M. An excitatory basis for divisive normalization in visual cortex. Nat. Neurosci. 19, 568–570 (2016).
Article CAS PubMed PubMed Central Google Scholar
Tischbirek, C. H. et al. Functional mapping of a cortical column at single-neuron resolution. Cell Rep. 27, 1319–1326 (2019).
Article CAS PubMed Google Scholar
Niell, C. M. & Stryker, M. P. Highly selective receptive fields in mouse visual cortex. J. Neurosci. 28, 7520–7536 (2008).
Article CAS PubMed PubMed Central Google Scholar
Berg, S. et al. ilastik: interactive machine learning for (bio) image analysis. Nat. Methods 16, 1226–1232 (2019).
Article CAS PubMed Google Scholar
Graybuck, L. T. et al. Enhancer viruses for combinatorial cell-subclass-specific labeling. Neuron 109, 1449–1464 (2021).
Article CAS PubMed PubMed Central Google Scholar
Pennington, Z. T. et al. ezTrack: an open-source video analysis pipeline for the investigation of animal behavior. Sci. Rep. 9, 19979 (2019).
Article CAS PubMed PubMed Central Google Scholar
Trachtenberg, J. T. et al. Long-term imaging of experience-dependent synaptic plasticity in adult cortex. Nature 420, 788–794 (2002).
Article CAS PubMed Google Scholar
Inagaki, S. et al. Imaging data in the paper “Isotonic and minimally invasive optical clearing media for live cell imaging ex vivo and in vivo” https://doi.org/10.24631/ssbd.repos.2025.11.484 (2025).
Pertoft, H. & Laurent, T. C. Isopycnic separation of cells and cell organelles by centrifugation in modified colloidal silica gradients. in Methods of Cell Separation (ed. N. Catsimpoolas) 25–65 (Springer, 1977).
Sdobnov, A., Darvin, M. E., Lademann, J. & Tuchin, V. A comparative study of skin optical clearing using two-photon microscopy. J. Biophotonics 10, 1115–1123 (2017).
Article CAS PubMed Google Scholar
Bashkatov, A. et al. In vivo and in vitro study of control of rat skin optical properties by action of osmotical liquid. In Proc. SPIE - The International Society for Optical Engineering Vol. 4224 (SPIE, 2000); https://doi.org/10.1117/12.403935
Bashkatov, A. et al. In vivo and in vitro study of control of rat skin optical properties by action of 40%-glucose solution. In Proc. SPIE - The International Society for Optical Engineering Vol. 4241 (SPIE, 2001); https://doi.org/10.1117/12.431524
Zhu, D., Wang, J., Zhi, Z. W., Wen, X. & Luo, Q. M. Imaging dermal blood flow through the intact rat skin with an optical clearing method. J. Biomed. Opt. 15, 026008 (2010).
Xu, H. T., Pan, F., Yang, G. & Gan, W. B. Choice of cranial window type for imaging affects dendritic spine turnover in the cortex. Nat. Neurosci. 10, 549–551 (2007).
Article CAS PubMed Google Scholar

Download references

Acknowledgements

We thank H. Zeng (Allen Institute, Ai162), J. Sanes (Harvard University, Thy1-YFP-H), K. Svoboda (Allen Institute, Thy1-GCaMP6f) and E. Deneris (Case Western Reserve University, ePet-Cre) for mouse strains; A. Miyawaki (RIKEN) for cell lines (HeLa/Fucci2); M. Eiraku (Kyoto University) for embryonic stem cell lines (EB5); D. Kim & GENIE Project (Janelia Research Campus) for pGP-CMV-GCaMP6f (Addgene plasmid no. 40755); F. St-Pierre (Baylor College of Medicine) for pAAV-EF1a-DIO-JEDI-2P-Kv-WPRE (Addgene viral prep no. 179459-AAV1); J. Wilson (University of Pennsylvania) for pENN.AAV.CamKII 0.4.Cre.SV40 (Addgene viral prep no. 105558-AAV1) and AAV1-hSyn-Cre.WPRE.hGH (Addgene viral prep no. 105553-AAV1); GENIE Project (Janelia Research Campus) for pGP-AAV-syn-jGCaMP8m-WPRE, pGP-AAV-syn-jGCaMP8f-WPRE, pGP-pcDNA3.1 Puro-CAG-Voltron2 and pGP-pcDNA3.1 Puro-CAG-Voltron2-ST, pGP-AAV-syn-FLEX-Volton2-ST-WPRE (Addgene plasmid nos. 162375, 162376, 172909, 172910 and 172907 and viral prep no. 172907-AAV1); V. Gradinaru (California Institute of Technology) for pUCmini-iCAP-PHP.S (Addgene plasmid no. 103006); B Tasic (Allen Institute) for AiP1010-pAAV-mscRE4-minBGpromoter-iCre-WPRE-hGHpA (Addgene plasmid no. 163476); M -T. Ke and M. Morimoto (RIKEN) for evaluating our earlier versions of the clearing medium; S. Uchida and K. Miyamichi (RIKEN) for sharing reagents; M. Nishihara, E. Nozoe, S. Hamatake, K. Yashiro and S. -H. Chou for technical assistance. We also thank The Research Support Center, Research Center for Human Disease Modeling, Kyushu University Graduate School of Medical Sciences, which was in part supported by Mitsuaki Shiraishi Fund for Basic Medical Research. We are grateful to EVIDENT for generously providing a chance to test the FV5000 system. This work was supported by grants from CREST program (JPMJCR2021 to T.I.), FOREST Program (JPMJFR230P to S.I.) of the Japan Science and Technology Agency (JST), AMED (JP23wm0525012 to T.I., JP25wm0625128 to T.I. and S.I., JP19dm0207080 to K.K., JP19dm0207079 to S.M., JP23gm6510022 and JP24wm0625119 to M.S.), the JSPS KAKENHI (JP21H00205, JP21H05696, JP23H02577, JP23H04236, JP23K18165, JP24H02308 and JP24H02312 to T.I., JP21H02140, JP22K18373 and JP24K01702 to S.I., JP19K06886 and JP24K02132 to S.F., JP22K06446, JP22H05094, JP24H01289 and JP25K02560 to N.N.-T., JP22H05161, JP22H00460 and JP23K18161 to K.K., JP22H02718 to S.M., JP24K18240 and JP25H02500 to T.Y., JP23K06151 to Y.K., JP20K23378 to T.K.S., JP24H00861 and JP25K21772 to M.S., JP25KJ1906 to H.T.), Kagoshima University Megumikai Medical Research Promotion Fund (to Y.T.), World Premier International Research Center Initiative (WPI-PRIMe; to K.H.), the Mochida Memorial Foundation for Medical and Pharmaceutical Research and the Uehara Memorial Foundation (to T.I.).

Author information

Authors and Affiliations

Department of Developmental Neurophysiology, Graduate School of Medical Sciences, Kyushu University, Higashi-ku, Fukuoka, Japan
Shigenori Inagaki, Satoshi Fujimoto, Takahiro Noda, Hikari Takeshima, Koki Ishikawa & Takeshi Imai
FOREST, Japan Science and Technology Agency, Saitama, Japan
Shigenori Inagaki & Tatsuo K. Sato
Department of Physiology, Graduate School of Medical and Dental Sciences, Kagoshima University, Kagoshima, Japan
Nao Nakagawa-Tamagawa & Yoshiaki Tagawa
Department of Pharmacology, Graduate School of Medical and Dental Sciences, Kagoshima University, Kagoshima, Japan
Nathan Zechen Huynh, Yuki Kambe & Tatsuo K. Sato
Nano Life Science Institute, Kanazawa University, Kanazawa, Japan
Rei Yagasaki, Misato Mori, Aki Teranishi & Satoru Okuda
Department of Neurophysiology, Faculty of Medicine, University of Yamanashi, Chuo, Japan
Satoshi Manita & Kazuo Kitamura
Department of Stem Cell Biology and Medicine, Graduate School of Medical Sciences, Kyushu University, Higashi-ku, Fukuoka, Japan
Yuki Naitou & Katsuhiko Hayashi
Department of Optical Neural and Molecular Physiology, Graduate School of Biostudies, Kyoto University, Kyoto, Japan
Tatsushi Yokoyama & Masayuki Sakamoto
Laboratory of Optical Biomedical Science, Institute for Life and Medical Sciences, Kyoto University, Kyoto, Japan
Tatsushi Yokoyama
Center for Living Systems Information Science, Graduate School of Biostudies, Kyoto University, Kyoto, Japan
Masayuki Sakamoto
Department of Genome Biology, Graduate School of Medicine, Osaka University, Suita, Japan
Katsuhiko Hayashi
Division of Reproductive Systems, Premium Research Institute for Human Metaverse Medicine (WPI-PRIMe), Osaka University, Suita, Japan
Katsuhiko Hayashi
CREST, Japan Science and Technology Agency, Saitama, Japan
Satoru Okuda & Takeshi Imai

Authors

Shigenori Inagaki
Nao Nakagawa-Tamagawa
Nathan Zechen Huynh
Yuki Kambe
Rei Yagasaki
Satoshi Manita
Satoshi Fujimoto
Takahiro Noda
Misato Mori
Aki Teranishi
Hikari Takeshima
Koki Ishikawa
Yuki Naitou
Tatsushi Yokoyama
Masayuki Sakamoto
Katsuhiko Hayashi
Kazuo Kitamura
Yoshiaki Tagawa
Satoru Okuda
Tatsuo K. Sato
Takeshi Imai

Contributions

T.I. conceived the project. S.I. and T.I. designed the experiments. S.I. performed all the experiments for screening and optimizing SeeDB-Live. N.N.-T. and Y.T. performed electrophysiology experiments. N.Z.H., Y.K., S.I., T.N., H.T., T.Y., M.S. and T.K.S. performed in vivo imaging. S.I., S.M. and K.K. performed chronic awake in vivo imaging. S.F. performed in utero electroporation. S.I., R.Y., M.M., A.T., Y.N., K.H. and S.O. performed organoid experiments. S.I. and T.N. performed behavioral assays. H.T., K.I. and S.I. performed immunohistochemistry experiments. T.I. supervised the project. S.I. and T.I. wrote the paper with input and feedback from all the authors.

Corresponding authors

Correspondence to Shigenori Inagaki or Takeshi Imai.

Ethics declarations

Competing interests

S.I. and T.I. have filed a patent application related to SeeDB-Live. The other authors declare no competing interests.

Peer review

Peer review information

Nature Methods thanks the anonymous reviewers for their contribution to the peer review of this work. Peer reviewer reports are available. Primary Handling Editor: Nina Vogt, in collaboration with the Nature Methods team.

Additional information

Publisher’s note Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Extended data

Extended Data Fig. 1 Evaluation of candidate chemicals.

(a) Concentration-dependent increase in refractive indices of candidate chemicals in water. (b) Calcium responses of GCaMP6f-expressing HEK293T cells to 50 μM ATP, measured using a plate reader. The refractive index was adjusted to 1.365 except for 5% glycerol (refractive index 1.348). Osmolarity was not adjusted to isotonicity (hypertonic, 300-700 mOsm/kg see also c) in this experiment. After incubation with the clearing media for 4 hours, GCaMP6f responses were measured. n = 8 wells each. ***p < 0.001; **p < 0.01; *p < 0.05; n.s., not significant (p ≥ 0.05) (two-sided Dunnett’s multiple comparison test). (c) Calcium responses of GCaMP6f-expressing HEK293T cells to 50 μM ATP in the media with variable osmolality (300-700 mOsm /kg). The osmolality was adjusted with 10x PBS. The osmolalities of high MW media are also indicated. n = 8 wells each. (d) The osmolality of different BSA products in aqueous solution (refractive index 1.365, in ddH₂O). n = 3 each. There are several products of BSA with different grades of purity are available from different companies. The osmolality was slightly different among these products, suggesting that salts remain in some of the products. (e) Residual salts contained in BSA products #1 and #2. The amounts of Na⁺, K⁺, Ca²⁺ and Mg²⁺ in BSA powder were measured using Inductively Coupled Plasma Mass Spectrometry (ICP-MS). The Cl⁻ amount was obtained from the product’s certificate of analysis, which was measured by ion chromatography. Ionic concentrations of BSA solution at a refractive index of 1.365 (17% w/v) are shown. In the preparation of SeeDB-Live, residual salts contained in the BSA powder were taken into account. (f) Transmittance of live HeLa cell suspension (4 × 10⁶ cells/mL, transmittance at 600 nm) in isotonic BSA#1/PBS at refractive index 1.365-1.375. n = 3 each. (g) Growth ratio of HeLa/Fucci2 cells in refractive index-optimized (refractive index 1.363, 320 mOsm/kg) medium of different BSA products. Cell numbers were counted based on the cell nuclei in the fluorescence images, and the number was normalized by the control data at each stage (n = 5 wells). Purification methods are not disclosed for most BSA products. (h) Growth curve of HeLa cells cultured in a 35 mm dish. Cell numbers in suspension was measured with a hemocytometer after trypsinization. The medium was isotonic, and their refractive indices were adjusted to 1.363. n = 3 dishes each. n.s.; not significant (p ≥ 0.05) (Wilcoxon rank sum test corrected with Holm-Bonferroni correction). (i) Growth curve of HeLa/Fucci2 cells cultured in the inverted culture in 384-well plates. Cell number was counted based on fluorescence images of the nuclei. n = 5 wells. ***p < 0.001 (two-sided Dunnett’s multiple comparison test). (j) Standard curve for the viscosity measurement using sucrose solution. Flow speed was determined using 50 mL syringes. Plot was fitted with a single-exponential curve. n = 5 each. The viscosity of sucrose solution was obtained from the previous literature⁶⁰. Created in BioRender. Imai, T. (2026) https://BioRender.com/gyynf4j. (k) Viscosity of candidate solutions (in ddH₂O). The viscosity was calculated based on the flow rate in (j). n = 5 each. (l) Specific gravity of the candidate solutions in PBS. The refractive indices of iodixanol and BSA#1 were 1.366. Specific gravity of cells are cited from previous studies⁷⁷. (m, n) Some of the BSA products have autofluorescence signals of unknown origin, especially for UV to blue range; therefore, we carefully selected low autofluorescence and low toxicity products from multiple suppliers. Absorbance (m) and fluorescence (n) of fetal bovine albumin (FBS), iodixanol, and BSA from different manufacturers are shown. Except for FBS, they are adjusted to 15% (w/v) in ddH₂O. FBS was non-diluted. Data with error bars indicate mean ± SD. See Supplementary Table 4 for detailed statistical data. PG: propylene glycol, BSA#1: BSA crystal (bioWORLD), BSA#2: BSA Low Salt (Fujifilm), BSA#3: BSA crystal (Fujifilm), BSA#4: BSA pH 5.2 (Fujifilm), BSA#5: BSA pH 7.0 (Fujifilm), BSA#6: BSA Globulin Free (Fujifilm), BSA#7: BSA Protease Free (Fujifilm).

Extended Data Fig. 2 Optimization of ionic composition of SeeDB-Live/ACSF.

(a, b) Spontaneous activity of mitral cells in the olfactory bulb was measured under different concentrations of divalent cations ex vivo. Amplitude (a) and frequency (b) were analyzed. Thy1-GCaMP6f mice (age, P11-14) were used for two-photon imaging of acute olfactory bulb slices. The ratio of added Ca²⁺ and Mg²⁺ was 2:1, following the formula of the ACSF (2 mM Ca²⁺ and 1 mM Mg²⁺). Note that the amounts of Ca²⁺ and Mg²⁺ derived from BSA products are also considered. n = 95, 43, 40, 76, 65, 64, 63 and 40 cells from 3 mice. ***p < 0.001; **p < 0.01; n.s., non-significant (p ≥ 0.05) (two-sided Dunnett’s multiple comparison test). (c, d) Spontaneous activity of mitral cells in the olfactory bulb was measured under different concentrations of Na⁺ and Cl⁻ ex vivo. Amplitude (c) and frequency (d) were analyzed. Thy1-GCaMP6f mice (age, P9-11) were used for two-photon imaging of acute olfactory bulb slices. A NaCl stock solution was added to adjust the concentration of Na⁺ and Cl⁻. Note that the amounts of Na⁺ and Cl⁻ derived from BSA products are also considered. There are no statistical differences in the amplitude or frequency across all conditions. However, abnormal firing (putative cortical spreading depression) was found at higher Na⁺ conditions (174 mM) in one trial, where the Cl⁻ concentration was matched to ACSF (134 mM). This slice was excluded in the analysis. Therefore, the isotonic condition (that is, lower Cl⁻ condition) may be preferable. n = 31 cells from 3 mice. n.s., non-significant (p ≥ 0.05) (Bonferroni-corrected pairwise comparisons).The formulation of the ACSF and the isotonic SeeDB-Live/ACSF (in mM) is as follows. ACSF: 151.3 Na⁺, 134.0 Cl⁻, 3.0 K⁺, 1.3 H₂PO₄⁻, 2.0 Ca²⁺, 1.0 Mg²⁺, 25.0 HCO₃⁻, 25.0 glucose, 310 mOsm/kg, pH 7.4, refractive index 1.338. SeeDB-Live/ACSF: 151.0 Na⁺, 111.3 Cl⁻, 3.0 K⁺, 1.0 H₂PO₄⁻, 6.1 Ca²⁺, 2.9 Mg²⁺, 20.1 HCO₃⁻, 15.0 glucose, 310 mOsm/kg, pH 7.4, refractive index 1.363. Note that the amount ions derived from the BSA products are also considered. See Supplementary Table 4 for detailed statistical data.

Extended Data Fig. 3 Long-term culture and comparison with other clearing media.

(a-g) Long-term culture in SeeDB-Live. (a) Primary culture of cardiomyocytes. Phase contrast image of cardiomyocytes at DIV5 (top) and the timeline of the culture (bottom). AAV.PHP.S-CAG-jGCaMP8f-WPRE (2 × 10¹⁰ gc/mL) was introduced at DIV1 and the medium was replaced at DIV2. Cells were cultured in SeeDB-Live medium (refractive index 1.366, 320 mOsm/kg) from DIV2 to DIV5. (b) Primary culture of cardiomyocytes before and after incubation in SeeDB-Live medium. Confocal image (top) and spontaneous calcium signals (bottom) at DIV2. (c) jGCaMP8f signals of cultured cardiomyocytes at DIV3 and DIV5. (d) Primary culture of hippocampal neurons. Phase contrast image (left) and the timeline of the culture (right). AAV-DJ-hSyn-jGCaMP8m-WPRE (7 × 10¹⁰ gc/mL) was introduced at DIV2. Neurons were cultured in SeeDB-Live medium (refractive index 1.363, 230 mOsm/kg) from DIV7 to 10. (e) jGCaMP8m signals of cultured hippocampal neurons before and after incubation in SeeDB-Live medium. (f, g) Amplitude and frequency of spontaneous calcium signals for the control (black) and SeeDB-Live (red). n = 3 dishes each. n.s., non-significant (two-sided Wilcoxon rank sum test). (h-k) Comparison with other methods. (h) Transmittance of live HeLa cell suspension (4 × 10⁶ cells/mL) at different wavelengths was compared among PBS, SeeDB-Live/PBS, and 0.6 M tartrazine/PBS¹⁸. Due to high absorption of tartrazine, we could not compare transmission below 550 nm. (i) Phase contrast and fluorescence images of GFP-expressing HEK293T cells. The cells were immersed in Control (PBS), SeeDB-Live/PBS (refractive index 1.363, 296 mOsm/kg), and then in 0.6 M tartrazine/PBS (refractive index 1.43, 1407 mOsm/kg). Scale bar, 50 μm. (j) Phase contrast image of HeLa cells before and after immersion in 0.1 M tartrazine solution (RI 1.351), adjusted to isotonic condition (310 mOsm/kg). Scale bar, 50 μm. (k) Refractive indices, osmolalities, and transmittances (at 600 nm) were compared among clearing agents reported for live tissue ^18,28. Red indicates ideal ranges for non-invasive optical clearing of live cells. Data with error bars indicate mean ± SD. (a)-(g) show data from representative samples out of 3 trials. (i) and (j) show single-trial data. See Supplementary Table 4 for detailed statistical data.

Extended Data Fig. 4 Clearing live spheroids and organoids with SeeDB-Live.

(a-d) HeLa/Fucci2 spheroids cleared with SeeDB-Live. (a) Growth of HeLa/Fucci2 spheroids cultured continuously in SeeDB-Live medium (refractive index 1.366, 320 mOsm/kg). Cell number in suspension was calculated with a hemocytometer after trypsinization. n = 3 spheroids each. Half of the medium was replaced daily. (b) Schematic diagram of fluorescence imaging of spheroids. 17.2% (v/v) 2,2’-thiodiethanol (TDE) in ddH₂O (refractive index 1.366) was used for immersion to minimize spherical aberration. The correction collar of objective lens was turned to the appropriate position. (c) Three-dimensional fluorescence images of a HeLa/Fucci2 cell spheroid in the control and SeeDB-Live media (4 hour clearing per day as shown in Fig. 1j). (d) Depth-dependent fluorescence intensity of cell nuclei in the central part of the spheroids. Fluorescence intensity indicate the mean intensity of all the cell nuclei in each z plane. n = 3 spheroids. (e, f) Intestinal organoid culture. (e) Schematic diagram of fluorescence imaging of intestinal organoids in Matrigel. 17.2% (v/v) TDE/ddH₂O (refractive index 1.366) was used as immersion. The correction collar was in the optimal position. (f) Responses of enteroendocrine cells to high potassium stimulation (30 mM at final concentrations). GCaMP6s signals are shown for the intestinal organoids derived from ePet-Cre; Ai162 mice (EEC-GCaMP6s). F₀ (left) and ΔF/F₀ (right) images (z stack: 0-186 µm) are shown. Magnified image of the inset is shown on the right. (g-j) ES cell-derived neuroepithelial organoid culture. (g) Schematic diagram of neuroepithelial organoid sample preparations. The epithelial tissue was broken with a glass capillary to facilitate clearing of the organoid with SeeDB-Live medium. 17.2% (v/v) TDE/ddH₂O (refractive index 1.366) was used for immersion. The correction collar was in the optimal position. The organoids were fixed on the glass surface coated with poly-L-lysine and Cell-Tak. (h) ES cell-derived neuroepithelial organoids (day 9). The bright field images before and after SeeDB-Live treatment. (i) 3D rendered fluorescence images of Lifeact-mCherry-expressing neuroepithelial organoid before and after SeeDB-Live treatment. A representative sample out of three with similar results. Normal (left) and SeeDB-Live medium (refractive index 1.363; right). Small incision was made in the organoid before SeeDB-Live treatment. (j) Fluorescence images of the Lifeact-mCherry-expressing neuroepithelial organoid at different depths before and after SeeDB-Live treatment. Data with error bars indicate mean ± SD. Images show representative samples out of 2-3 trials. See Supplementary Table 4 for detailed statistical data. Panels b, e and g created in BioRender. Imai, T. (2026) https://BioRender.com/gyynf4j.

Extended Data Fig. 5 Clearing acute brain slices with SeeDB-Live.

(a-c) Acute hippocampal slices cleared with SeeDB-Live. Confocal (a) and two-photon (b) images (3D rendering) of acute hippocampal slices cleared with SeeDB-Live/ACSF (refractive index 1.363, 310 mOsm/kg in ACSF). Thy1-YFP-H mice (age P6) were used. (c) Fluorescence images of the acute hippocampal slices taken at different depths using confocal (left) and two-photon microscopy (right). (d) Fluorescence images of acute brain slices from the primary somatosensory (S1) cortex at different refractive indices. Thy1-YFP-H mice (age, P22) were used. SeeDB-Live/ACSF at different refractive indices (refractive index 1.338-1.369, 310 mOsm/kg) were tested. The optimal refractive index was 1.363. (e) Two-photon shadow images at the superficial region of an acute brain slice from S1. The slice (S1 L5) was perfused with ACSF containing 40 μM Calcein. Bright signals are somata labeled with Calcein. The fluorescent dye was incorporated into the damaged cells at a depth of ~30 μm. Bright dots (neurites of dead neurons) were still visible at a depth of ~60 μm. (f, g) Fluorescence intensity from cell bodies in x-y fluorescence images of S1 L5ET neurons treated with 5% glycerol/ACSF. Acute brain slices of Thy1-EYFP-H mice (P19-21) were imaged before and after 5% glycerol/ACSF treatment (f). Mean fluorescence in ROIs are shown (g). For confocal imaging, n = 13, 32, and 26 cells from 3 mice for depths of 50, 100, and 150 μm, respectively. For two-photon imaging, n = 14, 33, and 15 cells from 3 mice for depths of 50, 100, and 200 μm, respectively. ***p < 0.0001 (two-tailed Wilcoxon signed-rank test). Images show representative samples out of 2-3 trials. See Supplementary Table 4 for detailed statistical data.

Extended Data Fig. 6 Electrophysiological properties of neurons under SeeDB-Live.

(a) Measurement of liquid junction potential (LJP). We inserted recording electrode filled with internal solution and reference electrode filled with 3 M KCl into internal solution, ACSF, and SeeDB-Live/ACSF sequentially while recording the potential under current-clamp mode. LJPs between internal solution and control ACSF or SeeDB-Live/ACSF were determined by the differences in potentials. LJP was 13.04 ± 0.20 mV for control ACSF and 9.19 ± 0.09 mV for SeeDB-Live/ACSF (n = 12). (b) Infra-red differential interference contrast (IR-DIC) images of representative Layer 5 extratelencephalic-projecting (L5ET) neurons under electrophysiological recording. Age, P15-18. (c) Recorded neurons visualized by biocytin staining. They were all thick-tufted L5ET neurons. (d) Current responses to the test pulse ( − 5 mV, 50 ms). (e) Additional electrophysiological properties of L5ET neurons at P15-18 recorded under ACSF and SeeDB-Live/ACSF. It should be noted that there may be biases in sampling step. For example, we could easily patch sufficient number of neurons under ACSF. However, it took much longer to patch neurons under SeeDB-Live/ACSF, because neurons are invisible and difficult to find. The box plots indicate median ± interquartile range (IQR). n = 17 neurons from 4 mice and 14 neurons from 3 mice for control and SeeDB-Live, respectively. **p < 0.01; n.s., not significant (p ≥ 0.05) (two-sided Wilcoxon rank sum test). (f) AP frequency was plotted against injected current amplitude for the more mature L5ET neurons (age, P28-29). (g) Electrophysiological properties of the more mature L5ET neurons (age, P28-29). Results were compared between ACSF and SeeDB-Live/ACSF. Recorded neurons were then confirmed by biocytin staining post hoc. Data are median ± IQR. *p < 0.05; n.s., non-significant (Wilcoxon rank sum test). n = 13 cells from 2 mice per group (control and SeeDB-Live). (h) IR-DIC images of fast-spiking (FS) interneurons in L5 of S1. (i) Recorded neurons visualized by biocytin staining. They were all non-pyramidal shapes. (j) Changes in membrane potentials in response to square current pulses. Representative FS interneurons are shown. (k) AP frequency was plotted against injected current amplitude for the FS interneurons. (l) Electrophysiological properties of neurons for FS interneurons (age, P14-17). Results were compared between ACSF and SeeDB-Live/ACSF. FS interneurons were identified based on the firing properties ( ~ 100 Hz) upon current injection. Recorded neurons were then confirmed by biocytin staining post hoc. Data are median ± IQR. **p < 0.01; n.s., non-significant (two-tailed Wilcoxon rank sum test). n = 12 neurons from 4 mice and 9 neurons from 3 mice for the control and SeeDB-Live conditions, respectively. (m, n) Amplitude (m) and frequency (n) of spontaneous activity in the same set of mitral cells in ACSF and Iodixanol/ACSF (RI1.366). Olfactory bulb slices of Thy1-GCaMP6f mice were imaged. n = 21 cells from 3 mice. *p < 0.05; **p < 0.01; n.s., non-significant (multiple comparisons with Bonferroni correction). (o-q) (o) Spontaneous activity in the acute olfactory bulb slices was evaluated for glycerol-containing ACSF at a refractive index of 1.366. Thy1-GCaMP6f mice (age, P11) were used. Mean amplitude (p) and frequency (q) of spontaneous activity in individual mitral cells. Data are median ± IQR. n = 24, 33 cells from 3 mice for ACSF and 21% Glycerol/ACSF. ***p < 0.001 (two-tailed Wilcoxon rank sum test). Data with error bars indicate mean ± SD. Images show representative samples out of 2-4 independent trials. Box plots show median ± IQR and whiskers indicate 1.5× IQR. See Supplementary Table 4 for detailed statistical data.

Extended Data Fig. 7 Optical clearing in vivo and chronic imaging with SeeDB-Live.

(a) Layer 5 extratelencephalic-projecting (L5ET) neurons in the primary somatosensory cortex (S1) before and after clearing with SeeDB-Live on day 0 and 7. Preparation is illustrated in Fig. 5i. The S1 of a 4-month-old Thy1-EYFP-H mouse was imaged while the mouse was under anesthesia using two-photon microscopy. The imaging depth was 645 μm. (b-k) Evaluation of inflammatory responses in S1 region after SeeDB-Live treatment. A large cranial window was made 10 days prior to the SeeDB-Live treatment because open skull surgery alone is known to cause transient activation of microglia⁸². SeeDB-Live treatment was performed for 1 hour. Mice were sacrificed 1 day after the treatment. The brain sections were 16 µm thick. (b) Frozen sections of the cerebral cortex were stained with DAPI, anti-NeuN (neuron), anti-Iba1 (microglia), anti-CD16/32 (activated microglia, M1), anti-GFAP (activated astrocyte), anti-Sox9 (astrocyte nucleus), anti-cleaved caspase-3 (apoptosis). (c) Treated and untreated areas of ACSF-HEPES or SeeDB-Live/ACSF-HEPES in the brain. A large cranial window was made only over the treated area in the right cortex. (d, e) Density of Iba1-positive microglia in ACSF-HEPES- and SeeDB-Live/ACSF-HEPES-treated mice. Comparison of the microglial density in untreated and treated areas is shown in (d), and the ratio (treated/untreated) is shown in (e). n = 3 mice each for treatment with ACSF-HEPES and SeeDB-Live/ACSF-HEPES. n.s., not significant (p ≥ 0.05) (two-sided Wilcoxon signed-rank test in (d), two-sided Wilcoxon rank-sum test in (e)). (f) Morphology of microglia after treatment with ACSF-HEPES or SeeDB-Live/ACSF-HEPES. (g) Evaluation of microglial morphology in ACSF-HEPES- and SeeDB-Live/ACSF-HEPES-treated mice. Microglial morphology was manually traced in 3D, and quantitative analyses (soma volume, soma roundness, branch number, maximum branch length, and total branch length) were performed. Cells were selected in the S1 L2/3 region in a blinded manner. The box plots indicate median ± interquartile range (IQR). *p < 0.05; n.s., not significant (p ≥ 0.05) (two-sided Tukey-Kramer multiple comparison test). (h–k) Quantification of inflammatory and cytotoxic markers in untreated and treated areas of the cerebral cortex in ACSF-HEPES- and SeeDB-Live/ACSF-HEPES-treated mice. (h) Fraction of CD16/32-positive area within Iba1-positive regions (microglia activation). (i) Fraction of GFAP-positive area (astrocyte activation). (j) Density of SOX9-positive cells (all astrocytes). (k) Density of cleaved caspase-3-positive cells (apoptosis). Data indicate mean ± standard deviation. n = 3 sections from 3 mice each. ** p < 0.01; n.s., not significant (p ≥ 0.05) (two-sided Tukey–Kramer multiple comparison test). (l) Representative images of the cerebral cortex stained with DAPI, anti-NeuN, anti-Iba, anti-CD16/32, anti-GFAP, anti-SOX9, and anti-cleaved caspase-3 after repeated SeeDB-Live/ACSF-HEPES treatment (day 0, 3, 7, 80, 100, 120, and 218). Representative results from 3 sections of a single mouse are shown. Data with error bars indicate mean ± SD. Images show representative samples out of 2-4 independent trials. Box plots show median ± IQR and whiskers indicate 1.5× IQR. See Supplementary Table 4 for detailed statistical data.

Extended Data Fig. 8 In vivo imaging of calcium and voltage in anesthetized and awake mice.

(a-d) Calcium imaging of L2/3 neurons in the primary visual cortex (V1) before and after clearing with SeeDB-Live/ACSF-HEPES. Anesthetized animals were imaged. (a) Experimental setup. Drifting gratings of various orientations were presented to anesthetized mice. Neurons were labeled with Cal-520-AM and imaged with two-photon microscopy. (b) Basal fluorescence of Cal-520 without visual stimulation. L2/3 neurons at a depth of ~420 μm. (c, d) Responses of a representative L2/3 neuron (indicated by arrowheads in b) to visual grating stimuli before and after clearing with SeeDB-Live. (e) Preferred orientation, maximum responses (ΔF/F₀), orientation selective index (OSI), and tuning width (Sigma) for the same set of L2/3 neurons (45-58 neurons in total) before (x-axis) and after (y-axis) clearing with SeeDB-Live. The comparison was performed as described previously⁵⁶. n.s., non-significant (Wilcoxon signed-rank test). (f-i) Two-photon voltage imaging of JEDI-2P-labelled L2/3 (f) and L5 neurons (h) in S1 of awake mice. The fluorescence image of cell somata at 200 μm and 564 μm depth was shown on the right, respectively. The spikes were detected at the somata of L2/3 (g) and L5 neurons (i) indicated in (f) and (h), respectively. Ticks indicate detected action potentials. Data in (c) and (d) indicate mean ± SD. (b) shows a representative data out of 2 animals; (f-i) show data from single animals. See Supplementary Table 4 for detailed statistical data. Panels a, f and h created in BioRender. Imai, T. (2026) https://BioRender.com/gyynf4j.

Extended Data Fig. 9 Epifluorescence imaging of subcellular voltage dynamics ex vivo and in vivo.

(a-c) Epifluorescence voltage imaging of the olfactory bulb slices. (a) Two-photon image identified a labeled mitral cell (z-stack; left) in acute olfactory bulb slices (P11) also shown in Fig. 6d-f. Epifluorescence of Voltron2₅₄₉ (temporal median) and ROIs are shown on the right. Cell bodies, shafts of a primary dendrite, and tufted structure within a glomerulus were analyzed. Voltron2 and GCaMP6f were introduced to mitral cells by in utero electroporation. (b, c) Time traces of backpropagating action potentials in each ROI indicated in (a). Traces from single shot images (b) and averaged images from 65 events (c) are shown. Ticks indicate the peaks of detected action potentials. Dotted lines indicate the half rise time of the peaks from ROI#4. (d-f) Epifluorescence voltage imaging of L2/3 neuron somata in anesthetized mice. (d) Epifluorescence images (temporal median) of L2/3 neurons in S1 labeled with Voltron2₅₄₉-ST in an anesthetized mouse (P17) before and after clearing with SeeDB-Live (1 hour after clearing). (e, f) Action potentials were detected in a L2/3 neuron indicated by the arrow in (d). A temporal median filter with a 3-frame window was applied. Traces of the voltage changes in L2/3 neurons indicated in (f). Ticks indicate detected action potentials. (g-i) Epifluorescence voltage imaging of L2/3 neuron dendrites in awake mice. (g) Dendrites of a L2/3 neuron in S1 labeled with mTurquoise2 and Voltron2₅₄₉. We imaged an awake mouse (2 months old) after SeeDB-Live treatment. Imaging depth: 90 µm. Created in BioRender. Imai, T. (2026) https://BioRender.com/gyynf4j. (h) Two-photon fluorescence image of mTurquoise2 (left) and epifluorescence image of Voltron2₅₄₉ (right). A representative result is shown. (i) The spikes were detected at the dendrites of an L2/3 neuron in S1 of an awake mouse indicated in (h). The red ticks indicate the synchronous events that coincided among the dendrites. (a-c) is from a representative sample out of 2 slices; (d-f) is a representative sample out of 3 animals; (g-i) is from one sample.

Extended Data Fig. 10 Epifluorescence voltage imaging of mitral/tufted cell dendrites in the olfactory bulb in vivo.

(a) Clusters (encircled by dotted lines) and subclusters (shown in different colors) of ROIs (mostly dendrites) of the mitral/tufted cells in the mouse olfactory bulb. The clusters and subclusters were defined based on voltage traces and spike synchronicity of ROIs, respectively. (b) Voltage traces of all subclusters (−ΔF/F₀). The black trace on the top (Mean) shows the averaged ΔF/F₀ of all glomeruli representing the theta wave in the olfactory bulb. Odor (1% amyl acetate) was delivered to the mice during the gray shaded period. Amyl acetate was diluted at 1% (v/v) in 1 mL mineral oil in a 50 mL centrifuge tube. Saturated odor vapor in the centrifuge tube was delivered to a mouse nose for 5 second at 1 L/min. Ticks indicate the detected action potentials. (c) The spike timing in each sniff/theta cycle. The timing is shown by the phase of the theta cycle. Odor (1% amyl acetate) was delivered to the mice in the gray shaded time. The peaks of the wave (mean) were regarded as 0/2π phase. (d) Spike phase of each cluster against sniff-coupled theta wave before and during odor (1% amyl acetate) stimulation. The peaks of the wave were regarded as 0/2π phase. Data are from a representative sample out of two animals with similar results.

Supplementary information

Reporting Summary (download PDF )

Peer Review File (download PDF )

Supplementary Video 1 (download MP4 )

Time-lapse phase contrast images of HeLa/Fucci2 spheroids cleared with SeeDB-Live. Phase contrast images of HeLa/Fucci2 spheroids cleared with SeeDB-Live.

Supplementary Video 2 (download MP4 )

Confocal images of HeLa/Fucci2 spheroids cleared with SeeDB-Live. HeLa/Fucci2 spheroids (cultured for 3 days) were cleared with SeeDB-Live and imaged with confocal microscopy. Serialx–yimages are shown.

Supplementary Video 3 (download MP4 )

Time-lapse transmission imaging of mouse cerebral cortex cleared with SeeDB-Live. A cortical slice (300-μm thick, P5) was cleared with SeeDB-Live.

Supplementary Video 4 (download MP4 )

Confocal imaging of L5ET neurons in S1 in an acute brain slice prepared from a Thy1-YFP-H mouse. A cortical slice (300-μmthick) from a Thy1-YFP-H mouse (P22) was imaged with confocal microscopy.

Supplementary Video 5 (download MP4 )

Two-photon imaging of S1 L5ET neurons in acute brain slices prepared from a Thy1-YFP-H mouse. A cortical slice (300-μm thick)from a Thy1-YFP-H mouse (P22) was imaged with two-photon microscopy.

Supplementary Video 6 (download MP4 )

Confocal imaging of pyramidal neurons in hippocampal CA1 in acute brain slices prepared from a Thy1-YFP-H mouse. A hippocampal slice (300-μm thick) from a Thy1-YFP-H mouse (P6) was imaged with confocal microscopy.

Supplementary Video 7 (download MP4 )

Two-photon imaging of pyramidal cells in hippocampal CA1 in an acute brain slice prepared from a Thy1-YFP-H mouse. Ahippocampal slice (300-μm thick) from a Thy1-YFP-H mouse (P6) was imaged with two-photon microscopy.

Supplementary Video 8 (download MP4 )

Two-photon shadow imaging of acute brain slices. A cortical slice (300-μm thick) from a wild-type mouse (P18) was perfused with 40 μM calcein solution in ACSF or SeeDB-Live. Layer 5 of S1 was imaged. Images were taken with two-photon microscopy.

Supplementary Video 9 (download MP4 )

Two-photon Ca²⁺ imaging of spontaneous activity of mitral cells in olfactory bulb slices. An olfactory bulb slice (300-μm thick) from a Thy1-GCaMP6f mouse (P11) was imaged with two-photon microscopy. Imaging depth was 100 μm.

Supplementary Video 10 (download MP4 )

Time-lapse two-photon imaging of GCaMP6f in acute olfactory bulb slices cleared with SeeDB-Live. An acute olfactory bulb slice(P11) was imaged with two-photon microscopy at a depth of 150 μm during clearing with SeeDB-Live.

Supplementary Video 11 (download MP4 )

Confocal Ca²⁺ imaging of spontaneous activity of mitral cells in olfactory bulb slices. An olfactory bulb slice (300-μm thick) from a Thy1-GCaMP6f mouse (P13) was imaged with confocal microscopy. Imaging depth was 100 μm.

Supplementary Video 12 (download MP4 )

Confocal Ca²⁺ imaging of spontaneous activity of mitral cells in an olfactory bulb slice at different depths. An olfactory bulbslice (300-μm thick) from a Thy1-GCaMP6f mouse (P5) was imaged with confocal microscopy. Imaging depths were 70 μm, 120 μm and 200 μm.

Supplementary Video 13 (download MP4 )

In vivo two-photon imaging of L5ET neurons in a Thy1-YFP-H mouse. A Thy1-EYFP-H mouse (4-month-old) was imaged with two-photon microscopy. Imaging depths were 80–800 μm. Laser power and photomultiplier tube gain were constant across the depths.

Supplementary Video 14 (download MP4 )

Time-lapse two-photon imaging of mouse cerebral cortex in a live animal cleared with SeeDB-Live. L5ET neurons in S1 in a Thy1-EYFP-H mouse (4-month-old) were imaged with two-photon microscopy during clearing with SeeDB-Live. Focal depth changes when perfusion is switched from ACSF (refractive index, 1.34) to SeeDB-Live/ACSF (refractive index, 1.363). Depth was 590 μm. We imaged multiplez-planes, and the imaging depth was calibrated post hoc to show the same depth.

Supplementary Video 15 (download MP4 )

In vivo two-photon calcium imaging of mitral cells in a Thy1-GCaMP6f mouse. Thy1-GCaMP6f mouse (4-month-old) was imaged with two-photon microscopy. 1% valeraldehyde was delivered during imaging.

Supplementary Video 16 (download MP4 )

Epifluorescence imaging of backpropagating action potentials in mitral cell dendrites in olfactory bulb slices. An olfactory bulb slice (300-μm thick, age P11) was imaged with epifluorescence microscopy at 2 kHz. Voltron2 was introduced to mitral cells by in utero electroporation at E12, labeled with JF₅₄₉. Frames with action potential events are indicated by a white circle in the upper-left corner. ROIs were manually clipped based on two-photon and epifluorescence images.

Supplementary Video 17 (download MP4 )

In vivo epifluorescence voltage imaging of mitral/tufted cell dendrites in the olfactory bulb. Mitral/tufted cells labeled with Voltron2₅₄₉ in an anesthetized mouse (4-month-old) were imaged with epifluorescence microscopy. ROIs were semiautomatically detected using machine learning-based image segmentation (ilastik) of the F₀ image. Data were normalized(−ΔF/F0) from Voltron2₅₄₉ in ROIs.

Supplementary Table 1 (download XLSX )

Preparation of SeeDB-Live and other clearing media.

Supplementary Table 2 (download XLSX )

Composition of SeeDB-Live/ACSF and SeeDB-Live/ACSF-HEPES.

Supplementary Table 3 (download XLSX )

Numerical data. Source data for all the graphs in main and Extended Data figures.

Supplementary Table 4 (download XLSX )

Statistical data. Details for all the statistical analyses in this study.

Supplementary Table 5 (download XLSX )

Comparison with other in vivo clearing methods^{18,20,27,28,78,79,80,81}. The live tissue-clearing agents should be isotonic and minimally invasive to live cells. We compared SeeDB-Live and other clearing agents tested in vivo based on several key factors required for live cell clearing. Transparency of live cells was evaluated based on the transmittance of HeLa cell suspension (4 × 10⁶ cells per ml) at 600 nm. +++, >40% transmittance; ++, >20% transmittance; +, 0–20%; −, not measured.

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article’s Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article’s Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.

Reprints and permissions

About this article

Cite this article

Inagaki, S., Nakagawa-Tamagawa, N., Huynh, N.Z. et al. Isotonic and minimally invasive optical clearing media for live cell imaging ex vivo and in vivo. Nat Methods (2026). https://doi.org/10.1038/s41592-026-03023-y

Download citation

Received: 01 November 2024
Accepted: 03 February 2026
Published: 12 March 2026
Version of record: 12 March 2026
DOI: https://doi.org/10.1038/s41592-026-03023-y
