We are introducing a professional RPi compatible tablet
Update: Power over ethernet (PoE) ready
In opposite to the many DIY builts and available kits, the HackerTab comes fully assembled and ready to run - but you can get a bare-bone option as well.
Instead of just stuffing a hobby-grade Raspberry Pi inside a monitor, we designed a real tablet from scratch which is running on the Raspberry Pi CM3 (Compute Module).
The CM3 is a tiny module containing the same processor as the RPi model 3B+ (four cores), but it´s intended to be used in industrial environments like fuse boxes and electrical cabinets.
The HackerTab is a fully integrated solution. The form factor is very handy and compact, yet offers plenty of space inside for expansions and integration of your own systems.
The removable silicone shell provides drop protection and splash water resistance.
Our goals
We designed a product which is meant to be a carrier for your own system.
You can focus on your goal instead of struggling with integrating a power management, a touchscreen, audio etc.
You can plug in your own (or third party) board into the standard Pi-HAT header and you are ready to go.
There are already many boards available, for example motor control, Hi-Fi audio, LTE connectivity and many many more.
The size of your custom board can be even greater than the size of a Pi-HAT. In fact, you can use the whole area inside the tablet.
And you are free to sell your own products using this device as basis.
Some ideas are:
- Entertainment system in the car
- Arcade game machine
- Portable oscilloscope
- Outdoor SDR / Radar / GPS
- Industrial control
- Interactive terminal
What does "professional" mean?
- Fully assembled device - ready to run
- Body developed by professional industrial designer
- Long-year experience in electronic design
and series production
- Power-down by system command
- Splash-proof
- Outdoor-capable
- Realtime clock (can wake up the tablet)
- Panel- & wall-mounting
- Customized ISO/TS16949 automotive TFT panel
- Using only quality components
- Integrated power system
- Audio IN and OUT (the standard RPi has output only)
- CM3 or CM3 LITE module inside
- Meets RPi HAT specification
- HACKABLE
Device is ready-to-run
No further assembly needed
Price comparison
Let´s compare the price with a DIY-Kit
- Raspberry Pi 3B+ 35€
- Official Touchscreen 70€
- Case 25€
- Powerbank 10€
- Audio IN 15€
- Realtime clock 10€
SUM: 165€
So for only 84€ more you´ll get:
- Handy format, but plenty of space inside
- Rugged case / splash resistant
- Header is free for use (no power or audio shield needed)
- Power monitoring
- USB accessible from inside
- Space for your project instead of stuffed wires
Technical Data
Size: 19cm x 12cm x 3cm
Display: 7", 1024x600 Pixels RGB, touchscreen
CPU: Raspberry CM3 or CM3 LITE
Power: Li-Ion 3.7V / 5200 mAh / Connector Molex 5268-02A
Consumption: 1200mA typical on CM3
Quiescent current: 200µA max.
Charging: micro-USB, 500mA / 3000mA (autodetect)
Audio: 3.5mm jack, line/mic in, line out, internal speaker 1.5W
Interfaces:4x USB internal (header), two of them external as USB-A,
LAN, audio in/out, micro-USB (charge/boot),
Pi-HAT header (full GPIO Bank0), camera, power, speaker,
Updated: Header for PoE module, modules will be compliant with PoE standard and low cost.
Details
Audio OUT via 3.5mm jack - using PWM (stereo)
- well filtered, good quality sound with no crackling or hissing
Audio IN stereo (24bit / 96kHz) via same 3.5mm jack
- selectable gain 0dB (line in) / +15dB (microphone)
- using I2S bus
- each audio channel (L/R) configurable either as input or output
Internal speaker with amplifier
- stereo to mono hardware downmix
Realtime Clock
- RasClock compatible
- time selectable Auto Power OFF - time selectable Auto Power ON
Battery charging via microUSB
- autodetect low/high current charger (similar to a smartphone)
- charging possible during normal operation
- USB boot via microUSB possible (for programming eMMC)
Pushbutton for ON/OFF control
- Push ON / Push OFF
Battery voltage monitor
100 Mbit LAN
4 USB ports, 2 of them as external USB-A (full sized)
- All USB ports accessible through internal 2.54mm pin-headers
Micro-SD slot, to use with CM3 LITE
Pi HAT header (standard) to use existing available HATs
Camera interface
- Compatible with existing RPi cameras
7" color TFT 1024x600 pixels
- capacitive multitouch
- constant current dimmable backlight (no PWM, flicker free)
Vesa mount (interface for wall mounting)
Panel mount capability
Silicone protective shell (removable)
Plenty of space inside
- plug in your own boards
- use it as a carrier for your DIY or commercial product
Plug-In WiFi module will be available on demand
- can be plugged into the internal USB header
- will be included depending on the pledge amount
Hackability
- We will provide descriptions of various test points and modding tips to give you more control over the hardware

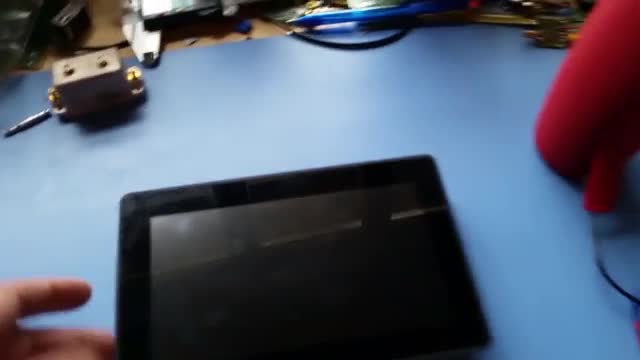

Functional demonstration
(unedited footage showing the core functionality)
