Fix HDMI-CEC weirdness with a Raspberry Pi and a $7 cable

14 min read Original article ↗

For years I treated HDMI-CEC like a house spirit: sometimes helpful, mostly temperamental, never fully understood. My living-room stack is straightforward: Samsung TV on ARC (NOT eARC - story for another day), Denon AVR-X1700H hidden in a closet, Apple TV plus a bunch of consoles connected to the receiver, and a Raspberry Pi 4 already doing Homebridge duty. When it comes to CEC, the Apple TV handles it like a dream, but every console behaves like it missed the last week of CEC school. They wake the TV, switch the input, then leave the Denon asleep so I’m back to toggling audio outputs manually.

My media closet where all the consoles are

I documented the media closet build-out separately, so if you want the full wiring tour (and the before/after photos), start there.

With the media closet, rewiring everything to the TV wasn’t an option and disabling CEC wasn’t viable (Apple TV works and it gets the most use). My first instinct was to lean on traditional automation stacks: HomeKit scenes to chain “TV on” into “receiver on” or wattage triggers via an Eve Energy plug. This kind of worked, but every extra layer added 30 seconds of lag or more. The last stop on that journey was a homebridge-cec-tv-control plugin, but while reading the README I realized I was about to pipe CEC messages through Node, Homebridge, and HomeKit before they hit the receiver. The Pi is wired into the rack already, so skipping those layers and going through /dev/cec0 directly was clearly the faster path.

After an evening of struggling, the Pi now sits quietly on the HDMI bus, watching for consoles to announce themselves and issuing the single command Samsung + Denon should have exchanged on their own.

This post follows the structure of my notes: build a small mental model of CEC, monitor the bus, copy whatever Apple TV does right, wrap it in Python, then ship it as a systemd unit.

Small HDMI-CEC primer

High-Definition Multimedia Interface Consumer Electronics Control, much better known as HDMI-CEC, is a low-bandwidth side channel that rides alongside HDMI video/audio. Everyone on the bus speaks in logical addresses (0x0 for TV, 0x5 for audio systems, 0x4/0x8/0xB1 for playback devices, etc.) and tiny opcodes2 such as 0x82 (Active Source) or 0x72 (Set System Audio Mode). Physical addresses are “lat/long” references inside the topology, so 3.0.0.0 can mean “AVR input source HDMI 3”.

CEC is supposed to help consumers control their electronics, so in a healthy system the flow goes like this: console wakes and declares itself active, the TV notices there’s an ARC partner, somebody sends “please be the audio system”, the receiver wakes up, and audio comes out of the big speakers. For me, that path only occurred when Apple TV was involved. Sadly, when I woke a console, the TV switched inputs but audio stayed on the tinny TV speakers.

To debug that mess I first wrote down how every device identified itself on the bus. Here are the specific CEC roles in my home theater:

  • TV – logical address 0x0
  • Audio system (Denon AVR-X1700H) – logical address 0x5
  • Playback devices – logical addresses 0x4, 0x8, 0xB (Apple TV, PS5, Switch 2 and Xbox all competing for the three playback slots3)
  • Broadcast – logical address 0xF (messages to everyone)

And the key opcodes we ended up caring about:

  • 0x82 – Active Source (“I am now the active input”)
  • 0x84 – Report Physical Address (“this is where I live in the HDMI tree”)
  • 0x70 – System Audio Mode Request
  • 0x72 – Set System Audio Mode (Denon’s “I am now the audio system” broadcast)

Monitoring the CEC bus with cec-client

The Raspberry Pi 4 I have exposes /dev/cec0 interface on its micro-HDMI, and with a $7 micro-HDMI to HDMI cable plugged into HDMI input port on the receiver, it’s possible to monitor CEC traffic from everything connected to the receiver.

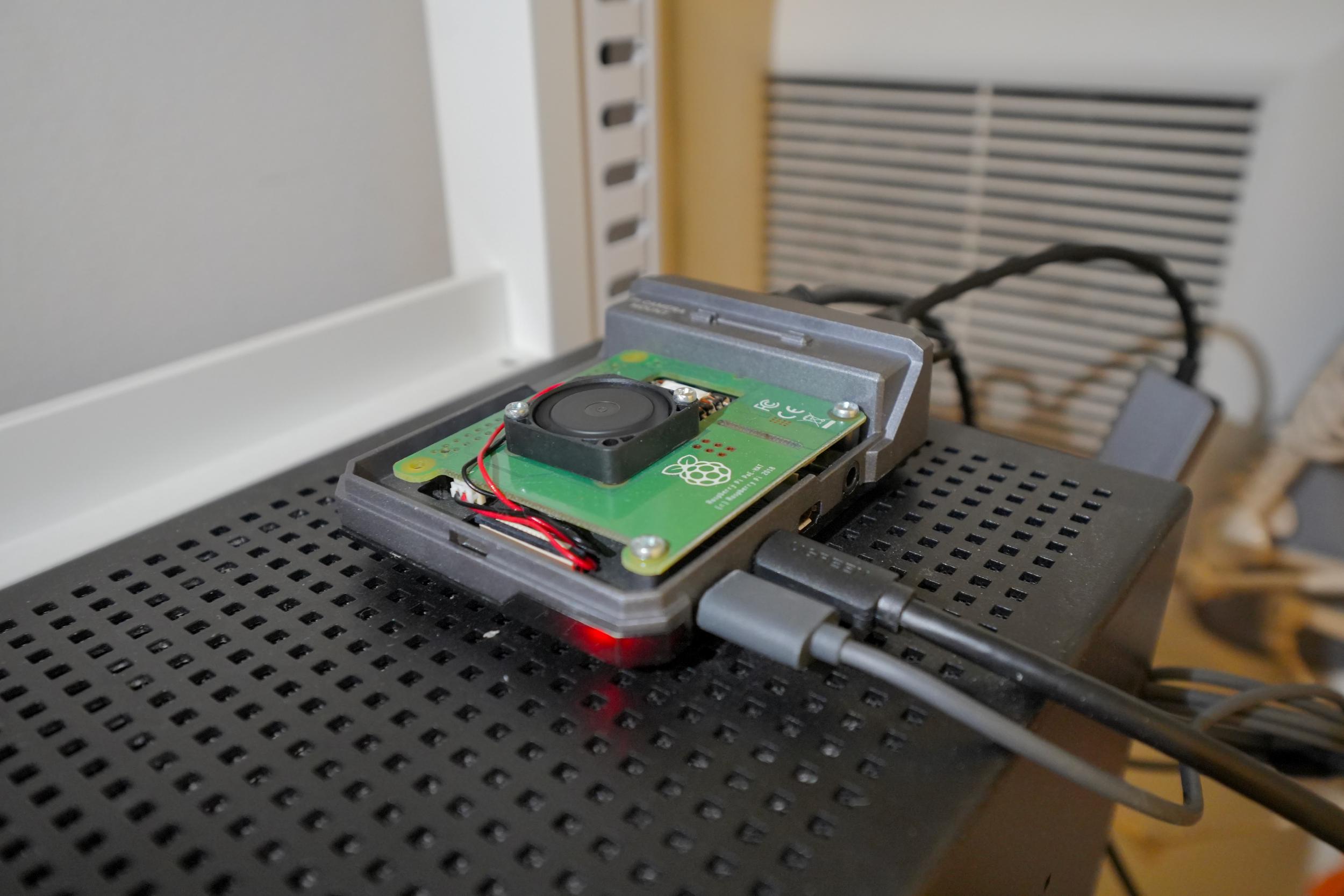

Close-up photo of the Pi plugged into the TV’s ARC HDMI input, HDMI adapters visible

I was initially hesitant because of some Hue Play Sync Box4 trauma: every HDMI splitter or inline gadget I’ve tried in front of the TV caused weird EDID breakage, troubles with HDR negotiation, or outright signal loss. But once I understood the Pi never sits in the middle of the HDMI handshake my concerns went away. By plugging it into an unused HDMI input on the AVR, it behaves like just another participant on the shared CEC bus. No signal regeneration, no spoofed EDIDs, nothing for the rest of the chain to notice.

So the topology looks like this:

---
config:
  flowchart:
    htmlLabels: false
---
flowchart LR
  classDef pi fill:#ffd399,stroke:#f97316,stroke-width:3px,color:#111,font-weight:bold;
  classDef misc fill:#1f2933,stroke:#4b5563,color:#f8fafc;

  subgraph Media Closet
    SW["`**Nintendo Switch 2**
    Playback 1 @ 0x8
    3.1.0.0`"]-- HDMI 1 ---AVR
    ATV["`**Apple TV**
    Playback 2 @ 0x4
    3.2.0.0`"]-- HDMI 2 ---AVR
    PI["`**Raspberry Pi**
    Recorder 1 @ 0x1
    3.3.0.0`"]-- micro HDMI to HDMI 3 ---AVR
    PC["`**PC**
    no CEC`"]-- HDMI 4 ---AVR
    XBOX["`**Xbox Series X**
    Playback 1 @ 0x8
    3.5.0.0`"]-- HDMI 5 ---AVR
    PS5["`**PS5**
    Playback 3 @ 0xB
    3.6.0.0`"]-- HDMI 6 ---AVR
  end

  subgraph Living Room
    TV["`**Samsung S95B TV**
    TV @ 0x0
    0.0.0.0`"]
  end

  AVR["`**Denon AVR-X1700H**
  Audio @ 0x5
  3.0.0.0`"]-- HDMI Out to HDMI 3 (ARC) ---TV

  class AVR,TV,SW,ATV,PC,XBOX,PS5 misc;
  class PI pi;

Now, you can get cec-client from libcec. Install it with

sudo apt update
sudo apt install cec-utils

Then do a quick scan to see which devices respond:

echo "scan" | cec-client -s

Example scan output from my setup below. As you can see, the Xbox and Switch both3 claim logical address 0x81:

CEC bus information
===================
device #0: TV
address:       0.0.0.0
active source: no
vendor:        Samsung
osd string:    TV
CEC version:   1.4
power status:  on
language:      eng


device #1: Recorder 1
address:       3.3.0.0
active source: no
vendor:        Pulse Eight
osd string:    CECTester
CEC version:   1.4
power status:  on
language:      eng


device #4: Playback 1
address:       3.1.0.0
active source: yes
vendor:        Unknown
osd string:    Switch 2
CEC version:   1.3a
power status:  on
language:      ???


device #5: Audio
address:       3.0.0.0
active source: no
vendor:        Denon
osd string:    AVR-X1700H
CEC version:   1.4
power status:  on
language:      ???


device #8: Playback 2
address:       3.2.0.0
active source: no
vendor:        Apple
osd string:    Apple TV
CEC version:   2.0
power status:  standby
language:      ???


device #B: Playback 3
address:       3.6.0.0
active source: no
vendor:        Sony
osd string:    PlayStation 5
CEC version:   1.3a
power status:  standby
language:      ???

If the expected devices show up, use monitor mode with the correct level5 of logging:

This command keeps the Pi quiet (monitor mode) yet gives you every bus transaction.

A line such as TRAFFIC: [...] >> bf:82:36:00 means: logical 0xB (PS5) broadcast Active Source (0x82) with physical address 3.6.0.0. That’s the packet you expect any console to send when it wakes up.

Figuring out the magic handshake

So I put the system in standby, start logging, then wake Apple TV. I got the expected Active Source burst, followed immediately by the Denon broadcasting that it has taken over audio:

>> 8f:82:32:00       # Apple TV (logical 8) -> Broadcast: Active Source
...
>> 8f:a6:06:10:56:10 # Apple TV (logical 8) -> Broadcast: ???
>> 5f:72:01          # Denon (logical 5) -> Broadcast: Set System Audio Mode (on)

Translated:

  1. Apple TV announces itself as the active source.
  2. Apple TV broadcasts some magic bits?
  3. Very soon after, the Denon tells everyone “System Audio Mode is on,” and the TV happily keeps output set to Receiver instead of flipping back to TV speakers.

I did the exact same experiment with PS5, Xbox, Switch 2 and the result was different:

>> bf:82:36:00       # PS5: Active Source
# ...a bunch of reports, but no 5f:72:01

So what was the 8f:a6:06:10:56:10 frame when Apple TV was involved? With debug logs, cec-client showed UNKNOWN (A6). I suspect libCEC labels it unknown because it’s in the vendor-specific range. The following bytes (06:10:56:10) could be Apple’s proprietary payload, like some capability or extended control. It’s possible Samsung and Apple have a private handshake here that ultimately results in the Denon doing the right thing. It’s neat, but I couldn’t rely on it since it’s undocumented and sending it manually from the Raspberry Pi’s logical address had no effect. Impersonating Apple TV over CEC is not realistically viable and likely brittle.

However, with cec-o-matic.com, it was easy to craft a CEC frame for the Raspberry Pi to send a normal system audio mode request:

15:70:00:00 # TV (1) -> Audio (5): System Audio Mode Request

Breaking it down:

  • 15 = source 0x1 (Recorder 1 = Pi) sends to destination 0x5 (Audio System = Denon)
  • 70 = opcode System Audio Mode Request
  • 00:00 = operands (TV’s physical address 0.0.0.0, plus “system audio status” = off/0, which Denon interprets as “please negotiate system audio mode and turn on ARC”)

The second I typed this into cec-client’s interactive shell with tx 15:70:00:00, the Denon turned on and ARC anchored to the receiver even with only a console and TV powered on. I confirmed by checking the TV’s audio output:

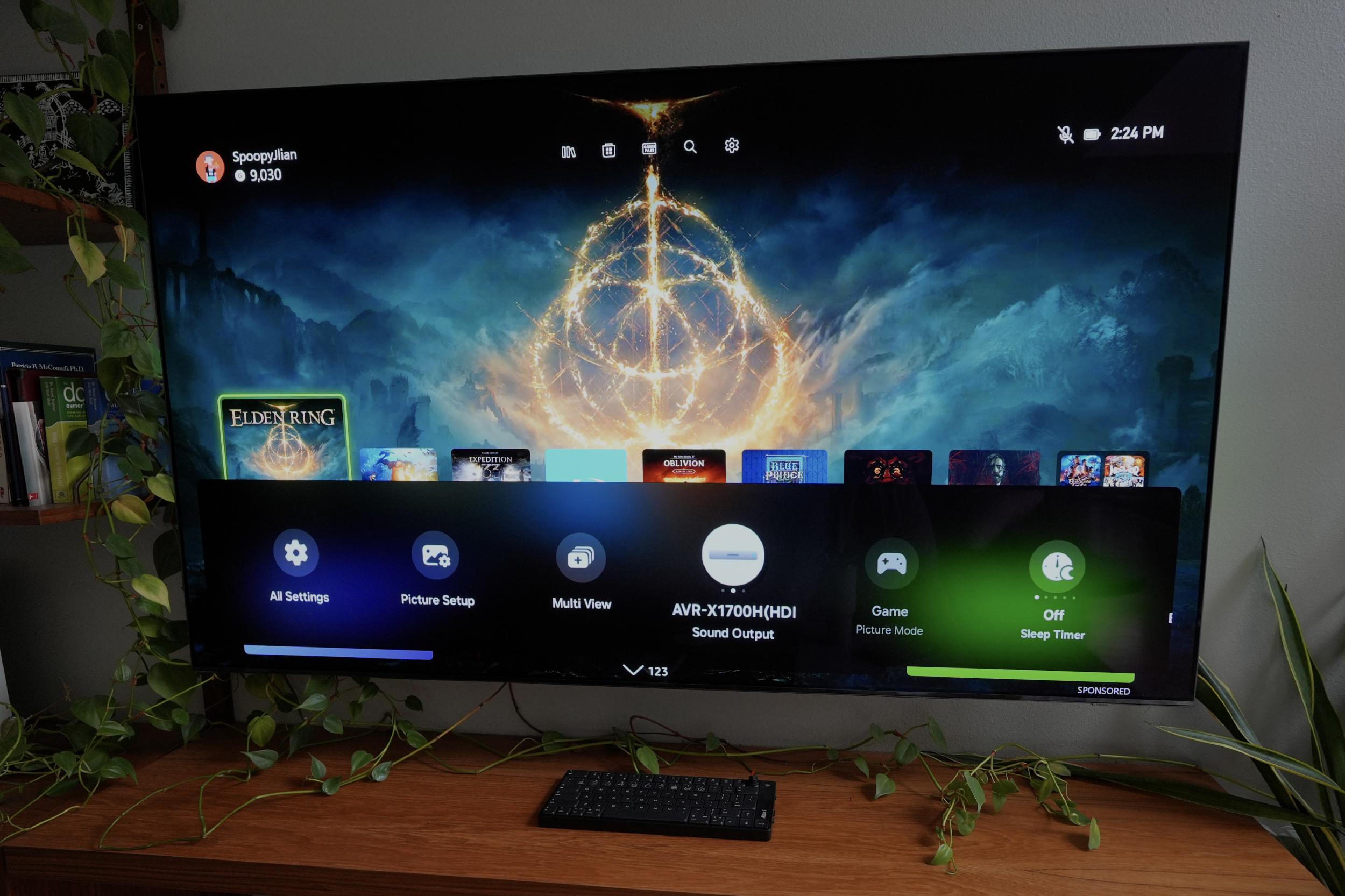

Photo of TV UI confirming receiver output

So the solution started to emerge: whenever a console wakes up and claims Active Source, the Pi should step in and send 15:70:00:00 to the Denon to kickstart audio negotiation.

Don’t spam the bus!

Now that we know the basis of the automation, the most obvious thing to do is to write a bash script that loops cec-client every few seconds and blast on 5. That sort of works, but it’s not ideal:

  • Using a loop means the automation is delayed instead of reacting to actual CEC events.
  • Every iteration spins up a new cec-client, binds to /dev/cec0, sends one command, and tears down.
  • CEC is a shared bus, not a write-only GPIO.

A better pattern is:

  1. Start a single long-lived cec-client process.6
  2. Let it print every TRAFFIC line for you to parse.
  3. Feed it tx ... commands on stdin only when you need to intervene.

The only catch: monitor mode (-m) can’t transmit. So for the automation we switch to:

No -m here. cec-client still prints all the traffic, but now it also accepts commands. Our Python script treats it like a bridge between HDMI land and our own logic: stdout is an event stream, stdin is a control channel.

The Python script

It took some trial and error, but it wasn’t too difficult to write a small Python program that watches for consoles waking up and sends the magic 15:70:00:00 command when needed. I put it all on GitHub:

jlian/cec_auto_audio

The script logic goes:

  • Starts cec-client -d 8 as a subprocess.
  • Parses TRAFFIC lines.
  • Watches for Active Source (0x82) from any Playback logical address (0x4/0x8/0xB).
  • Tracks when the Denon last broadcast Set System Audio Mode (5f:72:01) so we don’t fight Apple TV or the TV’s own logic.
  • Sends tx 15:70:00:00 at most once per console wake if nobody else has done it.

A few notes:

  • The script doesn’t hard-code any device names, vendors, or physical addresses.
  • It treats any Playback logical address (0x4/0x8/0xB) turning into Active Source as a “console wake” event.
  • It stays passive when Apple TV / Samsung / Denon manage to do the right thing themselves (because we observe a real 5f:72:01).
  • It runs as a single long-lived process tied to a single cec-client instance.

To make sure it starts on boot and keeps running, I wrapped it in a simple systemd service. The unit file I used can be found in the GitHub README. I’ve been running it for a few days and feels rock solid.

Generalizing this approach

I hope this post gives you enough of a mental model to adapt this approach to your own CEC pain points. My solution is specific to the Denon + Samsung + consoles scenario, but the same pattern should work for other CEC quirks.

Maybe your issue isn’t consoles not engaging the AVR. Maybe DTS never negotiates, or your TV keeps snapping back to its tiny speakers. The workflow is the same:

  1. Get the Pi onto the an HDMI port. Plug the Pi into the TV or Receiver’s HDMI input using a micro-HDMI–>HDMI cable (or adapter). Put it somewhere it can sit forever.

  2. Baseline the bus. Run:

    echo "scan" | cec-client -s -d 1

    to make sure your Pi can see all the expected devices, what logical/physical addresses they have, and what roles they use.

  3. Record a “good” scenario and a “bad” one. Use:

    to log traffic while you:

    • Trigger a good path (e.g., Apple TV gets 5.1 sound correctly).
    • Trigger a bad path (e.g., DTS falls back to stereo, or ARC drops to TV speakers).

  4. Diff the traces. Look for opcodes that show up in the good trace but are missing in the bad. In my case, the interesting delta was the presence of 5f:72:01 after Apple TV woke, and the absence of anything like it when a console woke alone.

  5. Inject the missing opcode manually. Go to cec-o-matic.com to build the missing frame7, then run:

    to use cec-client in interactive mode, then type tx ... for your suspected magic packet, and see if anything changes. If not, try again with a different frame.

    You likely would want to start with a frame like 1f:... (Pi logical address as Recording 1 0x1 to Broadcast 0xF), or 15... (Pi to Audio System 0x5), depending on what you’re trying to achieve.

  6. Wrap it in code. Once you know the magic packet, wrap it in a tiny program like the one above and let the Pi quietly participate on the bus.

You can picture the good vs bad paths like this:

sequenceDiagram
  participant Src as Source (console/player)
  participant TV as TV (0)
  participant AVR as AVR / Soundbar (5)

  rect rgb(230,255,230)
    note over Src,AVR: Good path
    Src->>TV: Active Source (0x82)
    TV->>AVR: System Audio Mode Request (0x70)
    AVR->>TV: Set System Audio Mode On (0x72)
  end

  rect rgb(255,230,230)
    note over Src,AVR: Bad path
    Src->>TV: Active Source (0x82)
        note over TV,AVR: No audio-mode negotiation
  end

Your job is to spot the missing step and teach the Pi to do it.

Where this leaves my setup

Apple TV keeps doing its thing. PS5, Xbox, or Switch now wake the TV, the Pi nudges the Denon within half a second, and audio stays glued to the receiver. Latency is low enough that it feels native. The Pi sits in the closet pretending to be a slightly overqualified remote.

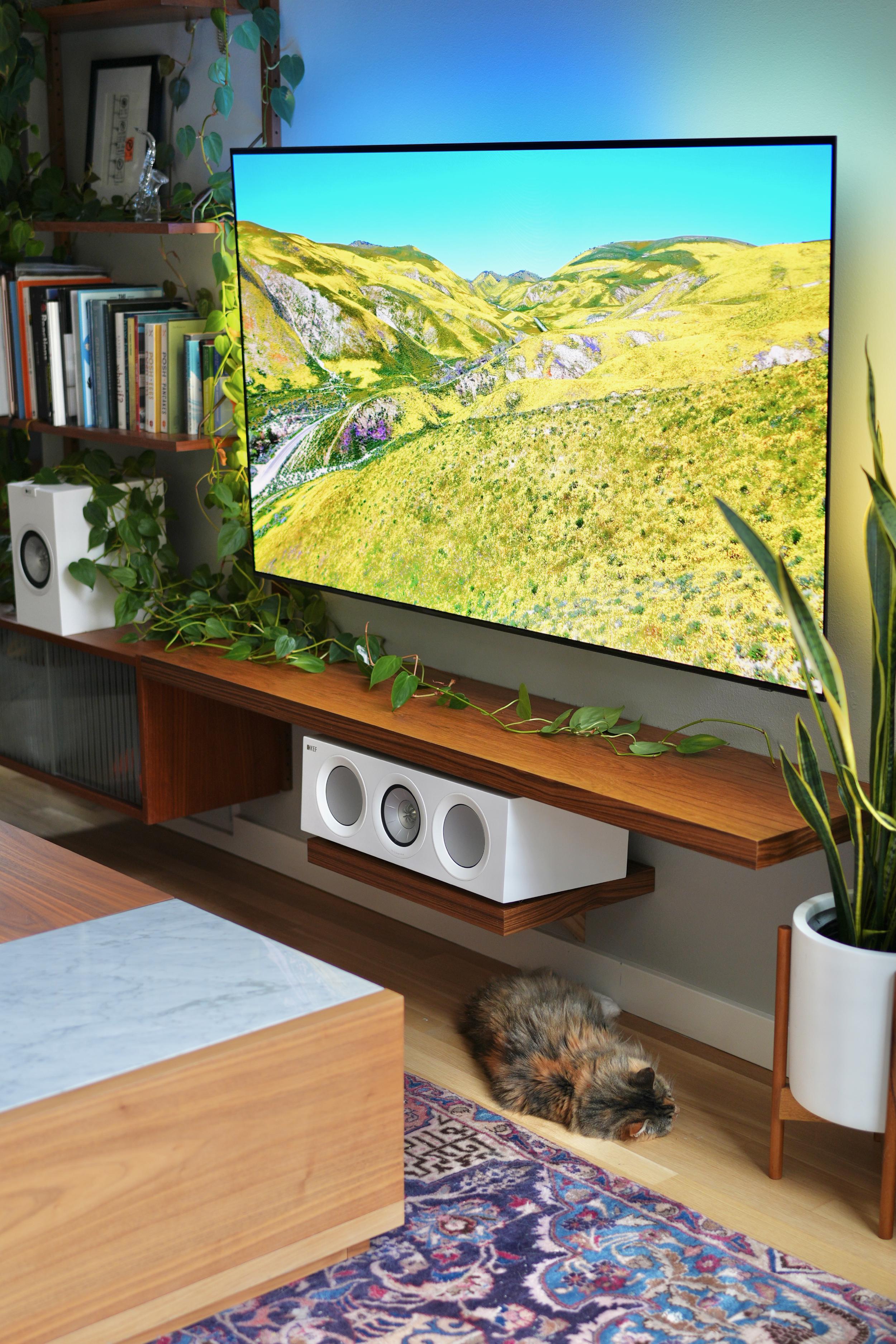

Picture of my TV and cat being comfortable

There are still a couple of rough edges I haven’t tackled yet:

  • When a console goes to sleep, the TV sometimes “helpfully” switches to its antenna input. I don’t even have an antenna plugged in, so the net effect is a confusing “no signal” screen instead of falling back to Apple TV or a known-good input. That’s technically “correct” from the TV’s point of view (its own tuner is always a valid source), but wrong for how this setup is actually used.

  • My sunset TV automation can land on a dead input. I have a HomeKit automation that turns the TV on around sunset. Most of the time that means Apple TV wakes up with a nice aerial screensaver. But if the last input before power-off was a console, the TV wakes to that HDMI port and just shows “no signal”, which confuses other people in the house.

These problems are similar, but require slightly different solutions:

  1. Console standby → TV becomes Active Source. When a console goes to sleep it tends to release the bus and the TV politely promotes its tuner. The helper could watch for that very specific frame pair (console Standby, TV Active Source) and, after a short grace period, switch the input to Apple TV.
  2. Sunset automation → no Active Source. In this case the TV powers on but nobody (not even the TV) claims Active Source, so it sits on the last HDMI port showing “no signal.” The helper needs to detect “TV on, Denon asleep, no Active Source within N ms,” then wake both Apple TV and the receiver and switch inputs.

Or maybe we could unify both by having a state machine that tracks “who was Active Source most recently” and automatically falls back to Apple TV whenever the bus goes quiet or the TV promotes itself. Either way, the Pi’s job is to make sure there’s always a sane outcome.

That would turn the Pi into a more general “HDMI shepherd”: not just keeping ARC pinned to the receiver when something is playing, but also steering the system back to a sane default when nothing is.

There’s probably a small cottage industry of “two-page CEC scripts” waiting to be written. If you adapt this trick for some other HDMI-CEC horror story, send me the packet traces—I’m collecting folklore.
