GitHub - workofart/ml-by-hand: A deep learning library built from scratch with complex neural networks examples built on top for learning purposes.

We are creating a deep learning library from scratch (that evolved from a simple autograd engine). It is designed to demystify the inner workings of building deep learning models by exposing every mathematical detail and stripping down the abstractions shiny ML libraries (e.g. PyTorch/TensorFlow) have. This project tries to provide an opportunity to learn deep learning from first-principles. And use the hand-built library to create and train state-of-art models (such as GPT-2)).

“What I cannot create, I do not understand.” — Richard Feynman

Key Principles

• Learn By Doing: All formulas and calculations are derived in code, so you see exactly how gradients (or derivatives) are computed—no hidden black boxes!
• Learning Over Optimization: Focus on understanding the underlying mathematics and algorithms, rather than optimizing for speed or memory usage (though we can still train GPT models on a single CPU)
• PyTorch-Like API: API interface closely mirrors PyTorch for low adoption overhead
• Minimal Dependencies: User code and examples should go through autograd.backend.xp; that alias binds to numpy by default, mlx on macOS when available, or cupy on CUDA Linux hosts. pytorch is used for gradient correctness checks in unit tests.

Demo/Examples

Explore the examples/ directory for real-world demonstrations of how this engine can power neural network training on various tasks:

📌 Transformers & GPT (Newly added):

• Original Transformers (Code)
• Byte Pair Encoder (BPE) Tokenizer (Code)
• GPT-1 (Code)

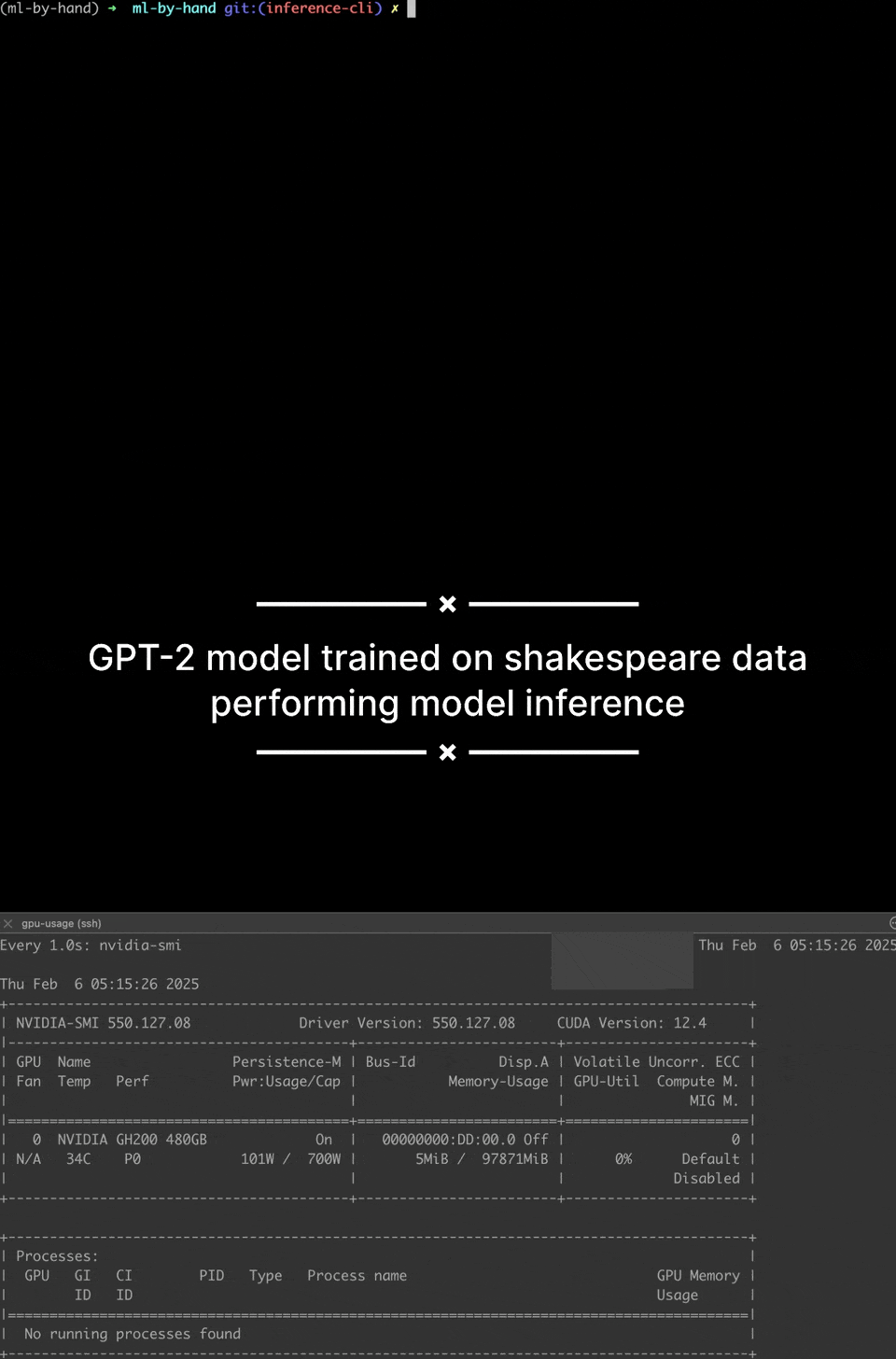

• GPT-2 (Code)

Toy Example

from autograd.tensor import Tensor
from autograd.nn import Linear, Module
from autograd.optim import SGD
from autograd.backend import xp

class SimpleNN(Module):
    def __init__(self, input_dim, output_dim):
        super().__init__()
        # A single linear layer (input_dim -> output_dim).
        # Mathematically: fc(x) = xW^T + b
        # where W is weight and b is bias.
        self.fc = Linear(input_dim, output_dim)

    def forward(self, x):
        # Simply compute xW^T + b without any additional activation.
        return self.fc(x)

# Create a sample input tensor x with shape (1, 3).
# 'requires_grad=True' means we want to track gradients for x.
x = Tensor([[-1.0, 0.0, 2.0]], requires_grad=True)

# We want the output to get close to 1.0 over time.
y_true = 1.0

# Initialize the simple neural network.
# This layer has a weight matrix W of shape (3, 1) and a bias of shape (1,).
model = SimpleNN(input_dim=3, output_dim=1)

# Use SGD with a learning rate of 0.03
optimizer = SGD(model.parameters, lr=0.03)

for epoch in range(20):
    # Reset (zero out) all accumulated gradients before each update.
    optimizer.zero_grad()

    # --- Forward pass ---
    # prediction = xW^T + b
    y_pred = model(x)
    print(f"Epoch {epoch}: {y_pred}")

    # Define a simple mean squared error function
    loss = ((y_pred - y_true) ** 2).mean()

    # --- Backward pass ---
    # Ultimately we need to compute the gradient of the loss with respect to the weights
    # Specifically, if Loss = (pred - 1)^2, then:
    #   dL/d(pred) = 2 * (pred - 1)
    #   d(pred)/dW = d(xW^T + b) / dW = x^T
    # By chain rule, dL/dW = dL/d(pred) * d(pred)/dW = [2 * (pred - 1)] * x^T
    loss.backward()

    # --- Update weights ---
    optimizer.step()

# See the computed gradients for the linear layer’s weight matrix:
weights = model.fc.parameters["weight"].data
bias = model.fc.parameters["bias"].data
gradient = model.fc.parameters["weight"].grad
print("[After Training] Gradients for fc weights:", gradient)
print("[After Training] layer weights:", weights)
print("[After Training] layer bias:", bias)
assert xp.to_scalar(xp.allclose(x.data @ weights + bias, y_true))

Documentation

Check out the modules in this project in the docs website built from the docs/ directory.

Environment Setup

This repo uses uv.lock as the source of truth for dependency installation. Use the bootstrap script for the intended setup flow:

./bootstrap.sh
source .venv/bin/activate

Backend selection happens automatically. In user code, import and use autograd.backend.xp; the alias is then bound to one of these backends:

• mlx is preferred when available on macOS
• cupy is preferred on Linux when a CUDA device is detected and CuPy is installed
• otherwise the repo falls back to numpy

You can also force a backend explicitly:

AUTOGRAD_BACKEND=numpy uv run pytest
AUTOGRAD_BACKEND=mlx uv run pytest
AUTOGRAD_BACKEND=cupy uv run pytest

CuPy Setup

CuPy is optional and only used when a CUDA device is detected.

• bootstrap.sh auto-detects CUDA on Linux and syncs one of the pinned extras: cuda11, cuda12, or cuda13.
• Manual installs are also available through pyproject.toml extras:

uv sync --extra dev --extra cuda12

• Pick exactly one CUDA extra that matches your installed CUDA major version.

Tests

Comprehensive unit tests and integration tests available in test/autograd

CI exercises both backend paths:

• MLX on macos-latest
• NumPy on ubuntu-latest
• CuPy auto-detection is available on CUDA Linux hosts, but is not covered by the current GitHub Actions matrix.

Future Work

• Expanding the autograd engine to power cutting-edge neural architectures
• Further performance tuning while maintaining clarity and educational value
• Interactive tutorials for newcomers to ML and advanced topics alike

Contributing

Contributions are welcome! If you find bugs, want to request features, or add examples, feel free to open an issue or submit a pull request.

License

MIT
