figma-use

CLI for Figma. Control it from the terminal — with commands or JSX.

# Create and style
figma-use create frame --width 400 --height 300 --fill "#FFF" --layout VERTICAL --gap 16
figma-use create icon mdi:home --size 32 --color "#3B82F6"
figma-use set fill 1:23 "$Colors/Primary"

# Or render JSX
echo '<Frame style={{p: 24, bg: "#3B82F6", rounded: 12}}>
  <Text style={{size: 18, color: "#FFF"}}>Hello Figma</Text>
</Frame>' | figma-use render --stdin --x 100 --y 100

Why

Figma's official MCP plugin can read files but can't modify them. This one can.

LLMs know CLI. LLMs know React. This combines both.

CLI commands are compact — easy to read, easy to generate, easy to chain. When a task involves dozens of operations, every saved token matters. MCP and JSON-RPC work too, but they add overhead.

JSX is how LLMs already think about UI. They've seen millions of React components. Describing a Figma layout as <Frame><Text> is natural for them — no special training, no verbose schemas.

Demo

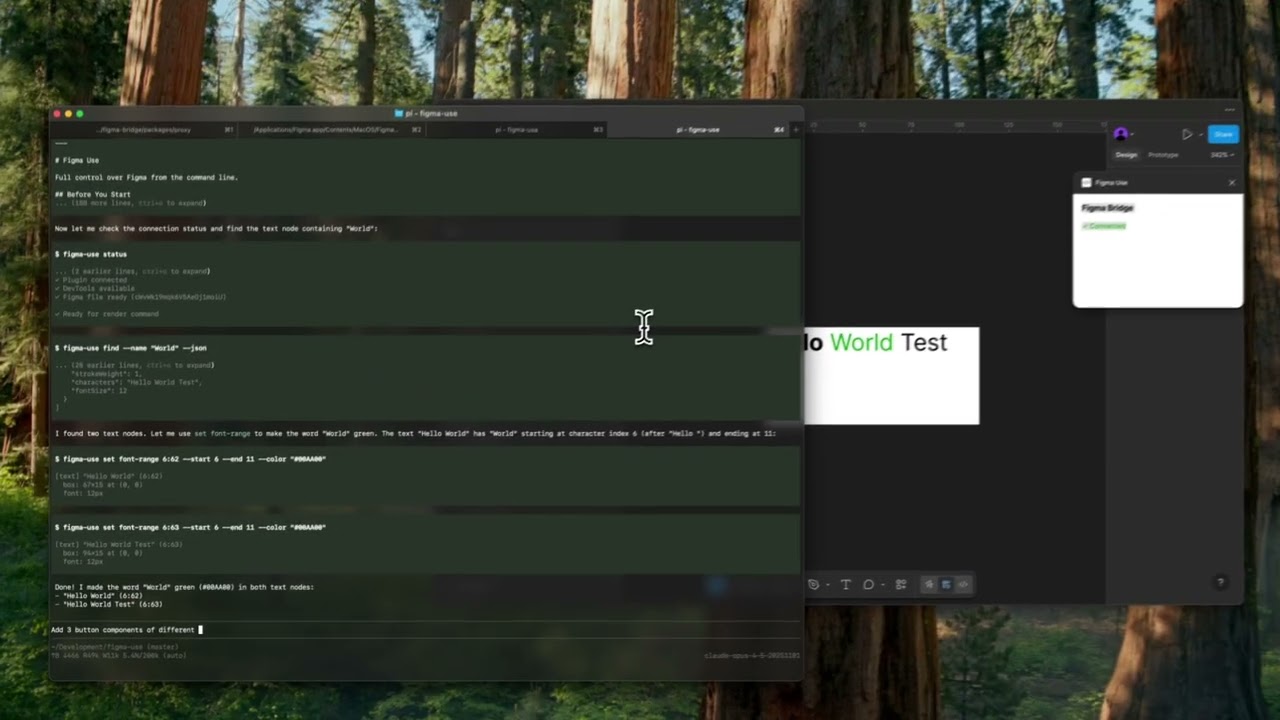

▶️ Button components

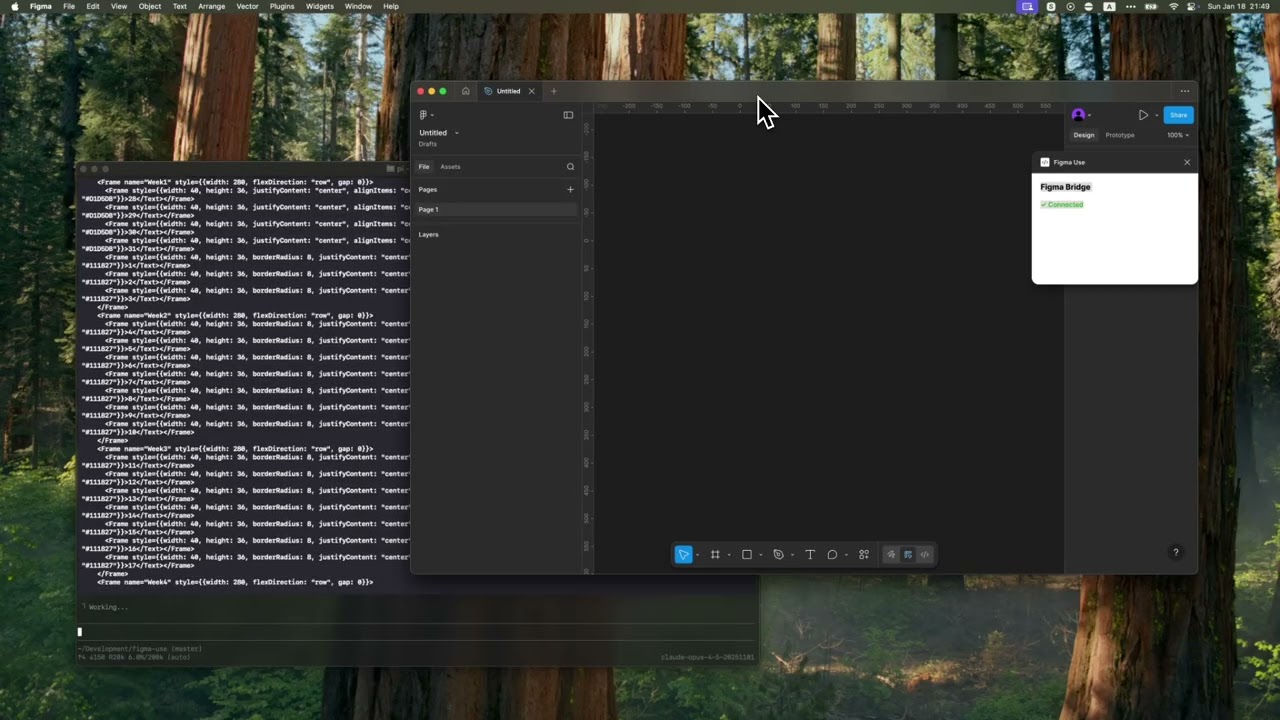

▶️ Tailwind UI calendar

Installation

npm install -g @dannote/figma-use

figma-use plugin install  # Quit Figma first
figma-use proxy           # Start proxy server

Open Figma → Plugins → Development → Figma Use

Two Modes

Imperative — one command at a time:

figma-use create frame --width 400 --height 300 --fill "#FFF" --radius 12 --layout VERTICAL --gap 16

Or declaratively — describe the structure in JSX and render it:

echo '<Frame style={{p: 24, gap: 16, flex: "col", bg: "#FFF", rounded: 12}}>
  <Text style={{size: 24, weight: "bold", color: "#000"}}>Card Title</Text>
  <Text style={{size: 14, color: "#666"}}>Description</Text>
</Frame>' | figma-use render --stdin --x 100 --y 200

The stdin mode accepts pure JSX only — no variables, no logic. For components, variants, and conditions, use .figma.tsx files.

Examples

Icons

Insert any icon from Iconify by name. No downloading, no importing, no cleanup.

figma-use create icon mdi:home
figma-use create icon lucide:star --size 48 --color "#F59E0B"

In JSX:

<Frame style={{ flex: "row", gap: 8 }}>
  <Icon icon="mdi:home" size={24} color="#3B82F6" />
  <Icon icon="lucide:star" size={32} color="#F59E0B" />
</Frame>

Browse 150k+ icons: icon-sets.iconify.design

Components

In a .figma.tsx file you can define components. First call creates the master, the rest create instances:

import { defineComponent, Frame, Text } from '@dannote/figma-use/render'

const Card = defineComponent(
  'Card',
  <Frame style={{ p: 24, bg: '#FFF', rounded: 12 }}>
    <Text style={{ size: 18, color: '#000' }}>Card</Text>
  </Frame>
)

export default () => (
  <Frame style={{ gap: 16, flex: 'row' }}>
    <Card />
    <Card />
    <Card />
  </Frame>
)

Variants

ComponentSet with all combinations:

import { defineComponentSet, Frame, Text } from '@dannote/figma-use/render'

const Button = defineComponentSet(
  'Button',
  {
    variant: ['Primary', 'Secondary'] as const,
    size: ['Small', 'Large'] as const,
  },
  ({ variant, size }) => (
    <Frame
      style={{
        p: size === 'Large' ? 16 : 8,
        bg: variant === 'Primary' ? '#3B82F6' : '#E5E7EB',
        rounded: 8,
      }}
    >
      <Text style={{ color: variant === 'Primary' ? '#FFF' : '#111' }}>
        {variant} {size}
      </Text>
    </Frame>
  )
)

export default () => (
  <Frame style={{ gap: 16, flex: 'col' }}>
    <Button variant="Primary" size="Large" />
    <Button variant="Secondary" size="Small" />
  </Frame>
)

This creates a real ComponentSet in Figma with all 4 variants, not just 4 separate buttons.

Variables as Tokens

Bind colors to Figma variables by name. The hex value is a fallback:

import { defineVars, Frame, Text } from '@dannote/figma-use/render'

const colors = defineVars({
  bg: { name: 'Colors/Gray/50', value: '#F8FAFC' },
  text: { name: 'Colors/Gray/900', value: '#0F172A' },
})

export default () => (
  <Frame style={{ bg: colors.bg }}>
    <Text style={{ color: colors.text }}>Bound to variables</Text>
  </Frame>
)

In CLI, use var:Colors/Primary or $Colors/Primary in any color option.

Diffs

Compare two frames and get a patch:

figma-use diff create --from 123:456 --to 789:012

--- /Card/Header #123:457
+++ /Card/Header #789:013
@@ -1,5 +1,5 @@
 type: FRAME
 size: 200 50
 pos: 0 0
-fill: #FFFFFF
+fill: #F0F0F0
-opacity: 0.8
+opacity: 1

Apply the patch to the original frame. On apply, current state is validated against expected — if they don't match, it fails.

Visual diff highlights changed pixels in red:

figma-use diff visual --from 49:275096 --to 49:280802 --output diff.png

Before	After	Diff

Inspection

Page tree in readable form:

$ figma-use node tree
[0] frame "Card" (1:23)
    400×300 at (0, 0) | fill: #FFFFFF | layout: col gap=16
  [0] text "Title" (1:24)
      "Hello World" | 24px Inter Bold

Export any node or screenshot with one command.

Vectors

Import SVG or work with paths directly — read, modify, translate, scale, flip:

figma-use path get <id>
figma-use path set <id> "M 0 0 L 100 100 Z"
figma-use path scale <id> --factor 1.5
figma-use path flip <id> --axis x

Render via Multiplayer Protocol

The render command uses Figma's internal multiplayer protocol, not just Plugin API. It's faster, but the protocol is internal and may change. Good for generation and prototyping.

Full Command Reference

See REFERENCE.md for the complete list of 100+ commands.

For AI Agents

Includes SKILL.md — a reference for Claude Code, Cursor, and other agents.

mkdir -p ~/.claude/skills/figma-use
curl -o ~/.claude/skills/figma-use/SKILL.md \
  https://raw.githubusercontent.com/dannote/figma-use/master/SKILL.md

MCP Server

The proxy exposes an MCP endpoint at http://localhost:38451/mcp with 90+ tools. Run figma-use mcp for config.

See MCP.md for full documentation.

How It Works

┌─────────────┐     ┌─────────────┐     ┌─────────────┐
│   Terminal  │────▶│  figma-use  │────▶│   Plugin    │
│             │ CLI │    proxy    │ WS  │             │
└─────────────┘     └──────┬──────┘     └─────────────┘
                           │
                    MCP ───┤ WebSocket (multiplayer)
                           ▼
                    ┌─────────────┐
                    │   Figma     │
                    └─────────────┘

License

MIT
