You can hide data within digital signatures by using something called a subliminal channel. The resulting signature will be valid and indistinguishable from a signature that does not contain subliminal data.

This project is a demonstration of using the subliminal channel in EdDSA signatures to secretly exchange data during a TLS 1.3 handshake. Unlike other methods of hiding data within a TLS handshake, it doesn't require altering any messages or values in a way that could be detected. All of the information is contained inside the signature of the CertificateVerify message.

It works by patching the WolfSSL library to override nonce generation in the Ed25519 algorithm, and capturing the CertificateVerify messages exchanged during the TLS handshake. The subliminal channel is used for a simple C2 protocol that executes commands on the client and sends the response back to the server.

This project was built on x86-64 linux with gcc, using WolfSSL 5.8.4.

For a full overview of this project and the details behind its implementation, see the write-up on my website here.

Build Instructions

  1. git clone https://github.com/cattl3ya/tls-subliminal-channel.git
  2. Get WolfSSL 5.8.4: curl -LO https://github.com/wolfSSL/wolfssl/archive/refs/tags/v5.8.4-stable.zip and unzip v5.8.4-stable.zip
  3. Copy the files from ./tls-subliminal-channel/wolfssl-5.8.4/ to ./wolfssl-5.8.4-stable/ to overwrite ed25519.c, ed25519.h, tls13.c, and libwolfssl_sources.h: cp -rv ./tls-subliminal-channel/wolfssl-5.8.4/* ./wolfssl-5.8.4-stable
  4. Build WolfSSL: cd ./wolfssl-5.8.4-stable, ./autogen.sh, ./configure --disable-shared --enable-opensslall --enable-ed25519 --enable-certgen --enable-opensslextra --enable-savecert --enable-keylog-export and build with make. DO NOT INSTALL the compiled library, just leave it alone and it will be statically linked when you build the client and server.
  5. cd ../tls-subliminal-channel
  6. Run make to compile the client and server
  7. Run make certs to generate the certificates
  8. If you want to be able to decrypt the traffic, set export SSLKEYLOGFILE=./ssl_key_log.txt in your terminal
  9. Using tmux or another terminal window, start the server first with ./https_server, and then start the client with ./https_client

Usage

Server

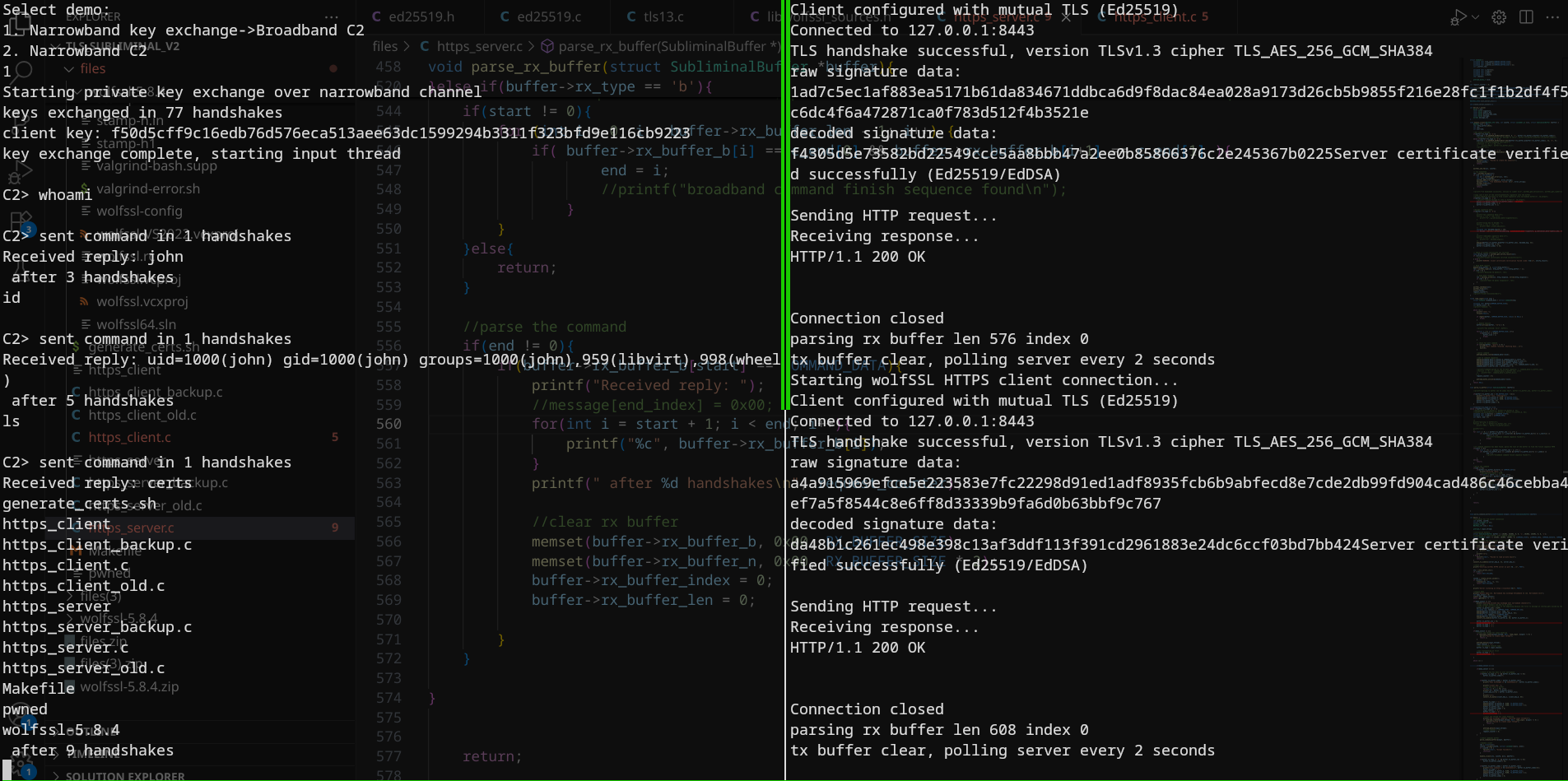

Running ./https_server will start the server on localhost:8443. You'll be prompted to pick which subliminal channel you want to use: narrowband or broadband. After choosing, commands are read from stdin, sent to the client, and the response printed to stdout. Ctrl-C quits.

Client

Running ./https_client will start the client. After choosing which subliminal channel to use, the client will start sending requests to the server. Commands received from the server are executed with popen(). The client will constantly send requests and print output to stdout. The program will stop on a failed connection or you can use Ctrl-C to quit.

License and Contact

This project contains code from the WolfSSL library, licensed under GPL-3.0. My code and modifications are released under the same license.

Contact information at https://www.johnmathot.com
