PostGIS Routing Examples
Experiments for Routing using PostGIS.

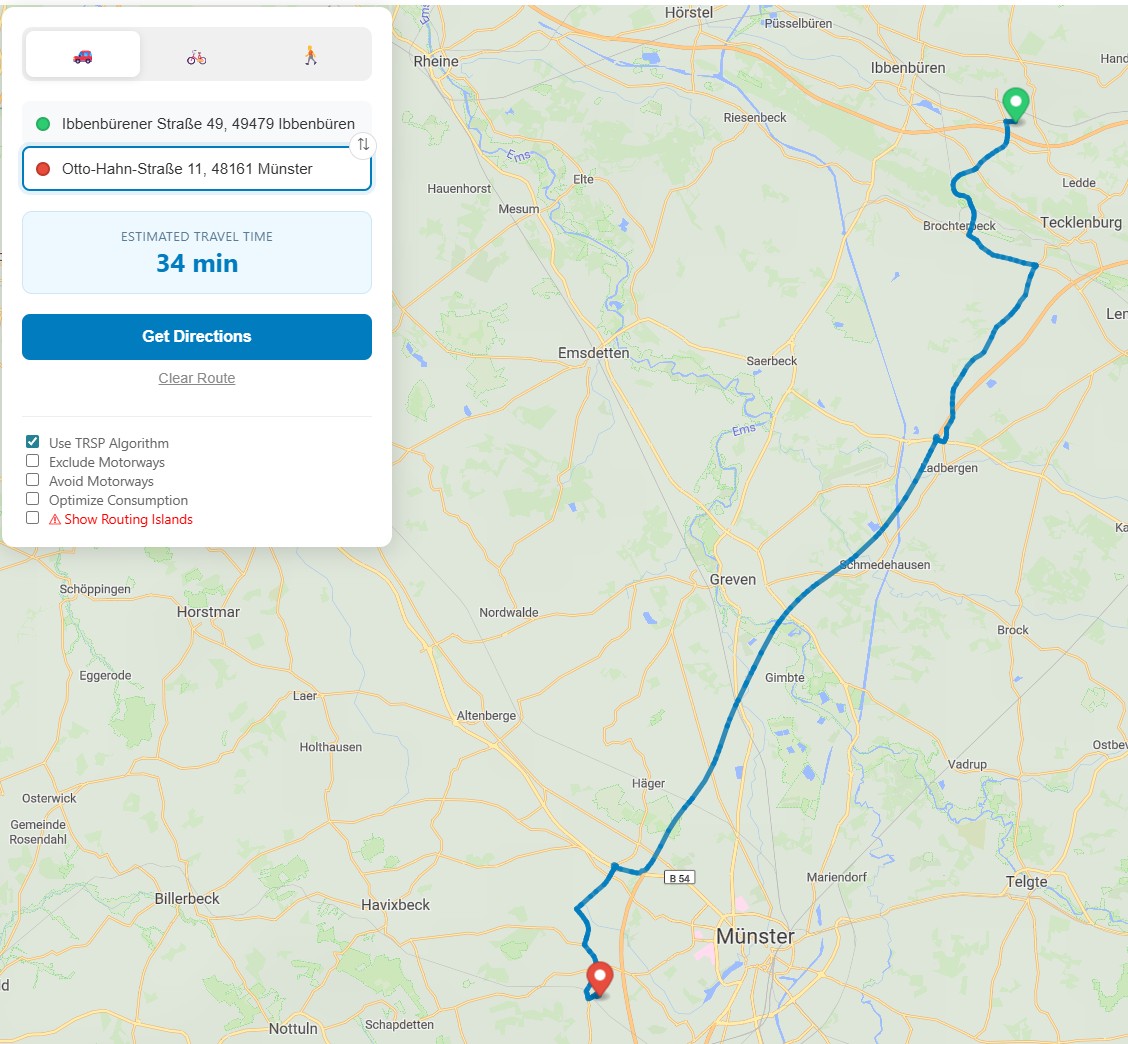

Screenshot: Routing
Running the Application
Certificates
Create and Trust the Developer Certificates using dotnet:
dotnet dev-certs https --clean
dotnet dev-certs https -ep ${HOME}/.aspnet/https/aspnetapp.pfx -p SuperStrongPassword --trust
Data
I am using the Natural Earth Relief using the following raster tiles:
For the OSM Data I am using geofabrik:
And you can use these Vector Tiles of Münster (Germany):
Configuration
In the .env file adjust the PBF path:
PBF_LOCAL_FOLDER=C:\Users\philipp\Downloads PBF_FILENAME=muenster-regbez-260102.osm.pbf
In the .config/api/appsettings.json define the tilemaps to be used:
{
"Application": {
"Tilesets": {
"openmaptiles": {
"Filename": "/pgrouting-tiles/osm-2020-02-10-v3.11_nordrhein-westfalen_muenster-regbez.mbtiles",
"ContentType": "application/vnd.mapbox-vector-tile"
},
"natural_earth_2_shaded_relief.raster": {
"Filename": "/pgrouting-tiles/natural_earth_2_shaded_relief.raster.mbtiles",
"ContentType": "image/png"
}
}
}
}In the .config/client/assets/appsettings.json define the API Url and the Style to use:
{
"apiUrl": "https://localhost:5000",
"mapOptions": {
"mapStyleUrl": "https://localhost:5000/style/osm_liberty/osm_liberty.json",
"mapInitialPoint": {
"lng": 7.628202,
"lat": 51.961563
},
"mapInitialZoom": 10
}
}In the .config/client/assets/style/osm_liberty/osm_liberty.json you'll need to setup the sources to match the API:
{
"sources": {
"ne_2_hr_lc_sr": {
"tiles": [
"https://localhost:5000/tiles/natural_earth_2_shaded_relief.raster/{z}/{x}/{y}"
],
"type": "raster",
"tileSize": 256,
"maxzoom": 6
},
"openmaptiles": {
"type": "vector",
"tiles": [
"https://localhost:5000/tiles/openmaptiles/{z}/{x}/{y}"
],
"minzoom": 0,
"maxzoom": 14
}
}
}Running the Application
Then you can start the application with:
docker-compose --profile dev up
You can then go to https://localhost:5001 and open the map.

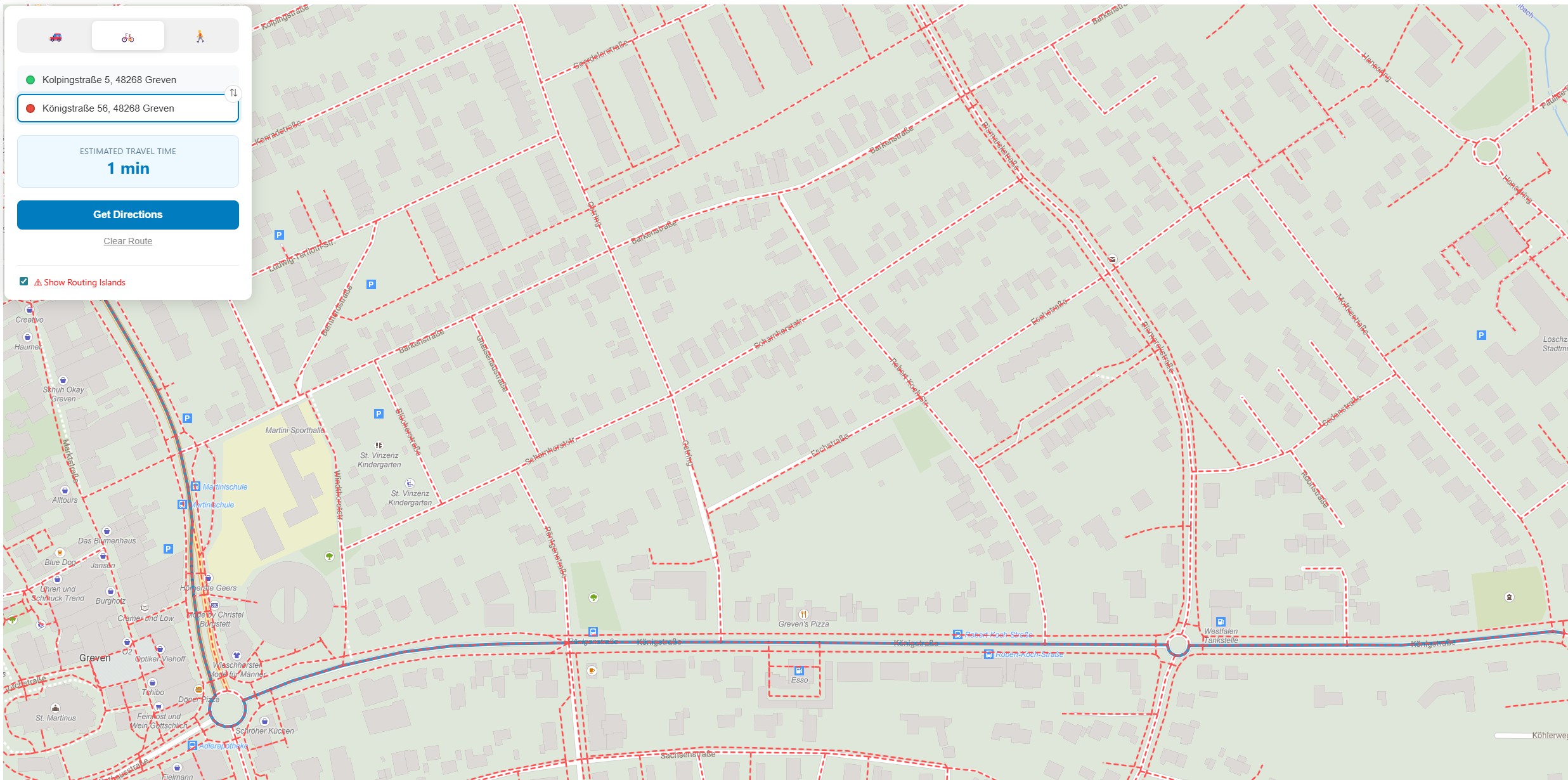

Screenshot: Network Analysis (Routing Islands)
