GitHub - atc1441/MiBand10-BES2700iMP-BEST1503-Hacking: Overview of the the Research and Custom Firmware for the MiBand 9 and 10 and its BES2700iMP / BEST1503 SoC and Doom

A working, buildable firmware SDK for the Xiaomi Mi Band 10 application SoC, with a full custom display + touch bring-up and a port of DOOM running on the device.

This repository documents what the chip is, where the SDK came from, and how the missing pieces were recovered so that custom firmware can be built, flashed and actually run on the watch.

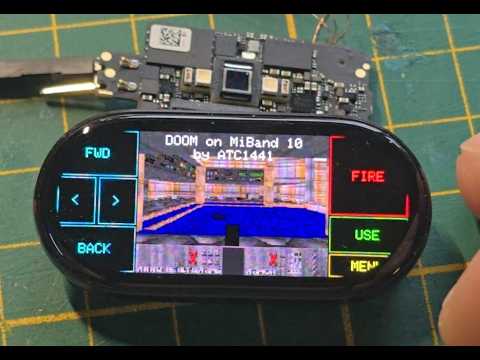

This repo is made together with these explanation videos:(click on it)

TL;DR

• The Mi Band 10 main SoC is the BES2700iMP, known internally at BES as BEST1503.
• No SDK was ever published for the BEST1503. The closest public code is a leaked SDK for the audio-oriented BES2700IHC / BEST1306.
• Starting from that BEST1306 SDK, the BEST1503-specific differences (memory map, clocks, the display controller and the touch controller) were recovered by reverse-engineering the stock Mi Band firmware, and added here.
• Flashing the watch - and the device pinout - was the single hardest part. It was solved using a separate leak of a BES flashing tool that happened to ship the SecondStage bootloader blobs for every BEST variant.
• On top of the working firmware, GBADoom was ported. It boots, runs at ~36 FPS in full 16-bit colour (RGB565) over a hardware Quad-SPI display path, and is controlled through the touchscreen.

The SDK folder is named MiBand10_SDK_BES2700IMP_BEST1503_DOOM.

Mi Band 9 / Mi Band 10: both bands use the same BES2700iMP / BEST1503 SoC and are in general very similar, so this work is expected to apply to both. Everything here, however, was only developed and tested on the Mi Band 10.

1. The chip and the naming maze

BES (Bestechnic) sells the same silicon under several names, which makes finding documentation and source confusing:

The BEST1503 and BEST1306 are close relatives - same ARM Cortex-M33 core family, similar peripherals and a near-identical ROM layout - but they are not drop-in compatible. The two diverge exactly where it matters for a watch:

• Memory map - the BEST1503 has more on-chip SRAM and a different bank layout.
• Clocks / PMU - different display and PSRAM clock trees.
• Display controller - the BEST1503 drives an AMOLED panel (the BEST1306 has no display path wired up).
• Touch controller - the watch uses a capacitive touch IC the audio SDK knows nothing about.

Because the BEST1503 is a wearable part, BES never released a public SDK for it.

2. Where the SDK came from

There is no BEST1503 SDK in the wild. Two leaks made this project possible:

1. The BEST1306 / BES2700IHC SDK source leak https://github.com/sprlightning/audio_prj_collections This is an audio-product SDK (TWS earbuds). It contains the full BES build system, the RTOS, the BT host, the HAL and the boot flow - everything except the parts that are specific to a watch. It is the foundation this repository is built on.

2. A BES flashing tool, leaked inside another project https://github.com/Derek-Vencer/tws_earbuds This repository shipped the host-side flashing flow and, crucially, the SecondStage bootloader .bin blobs for every BEST variant. That is what ultimately allowed writing code to the Mi Band 10.

Everything BEST1503-specific in this tree (the best1503 HAL variant, the display glue, the touch glue, the corrected memory map) was produced by reverse- engineering the stock Mi Band firmware and cross-checking it against the BEST1306 code, then filling in the gaps.

3. What the SDK does

This is a complete embedded firmware SDK based on the BES kbuild system:

• Core - ARM Cortex-M33 startup, the RTX5 RTOS, the BES memory pools and heap, the fault handlers and the boot/trace plumbing.
• HAL - clocks (CMU), timers, GPIO/IOMUX, flash controller, UART, I2C/SPI, PMU and the chip-specific best1503 HAL layer.
• Boot flow - platform/main/main.cpp brings the chip up, then (in this build) hands control to the on-device hardware self-test, which is where the display, touch and DOOM bring-up live.
• Linker scripts - scripts/link/best1000_1306.lds.S, driven by the per-chip address map in platform/hal/best1503/plat_addr_map_best1503.h.
• Target configuration - config/best1503/ selects features, board pins and build options.

The BES2700IHC SDK is an audio SDK; for this watch build the entire audio subsystem is left out (the Mi Band has no audio hardware), which both simplifies the firmware and frees a large amount of flash for the DOOM WAD (see §7 Memory & size).

4. What was recovered by reverse-engineering the stock firmware

The stock Mi Band runs a Vela/NuttX-based image. By analysing it, the following BEST1503-only pieces were reconstructed and wired into the SDK:

Memory map

The BEST1306 headers describe only 512 KB of SRAM (4 × 128 KB banks). The BEST1503 actually has 1.4 MB (0x160000) of contiguous on-chip SRAM - this was confirmed against a RAM dump of the running chip and is now reflected in plat_addr_map_best1503.h (RAM3_SIZE / RAM_TOTAL_SIZE). The flash is 4 MB (the SDK default of 2 MB was corrected in config/best1503/target.mk).

Display - RM690B0/C0 AMOLED

The panel is a Raydium RM690B0/C0 AMOLED (≈212 × 520 visible). It is driven through the BES LCDC SMPN path as a 4-lane hardware Quad-SPI command stream (platform/main/disp_hwquad.c, raw MMIO, no SDK calls):

• Clock tree - the display power island and clock multipliers are brought up exactly as the stock firmware does. The stripped best1503 boot omits the clock-tree module enables the LCDC's DMA master needs, so they are restored by hand; the display clock is the 96 MHz OSC×4 tap.
• Init - the panel RDID is read back (0xDA/0xDB/0xDC) and used to auto-select the matching variant (init table + CASET X-offset), falling back to a default panel; a full init sequence (manufacturer page, COLMOD, MADCTL, CASET/RASET, sleep-out, display-on, brightness) is then replayed over the single-line command engine.
• Pixels - frames are streamed by the LCDC GEN_FRAME generator as 16 bpp RGB565 (two bytes per pixel) over all four data lanes, with the hardware auto-head emitting the 0x32 / 0x2C quad-write opcode. The write window is set on the command engine first because the generator only emits the 0x2C RAMWR itself.
• Framing - CS is driven manually around each transfer and held low until the TXC (transmit-complete) gate so the panel commits the RAMWR; the serializer is flushed and the SMPN re-armed every frame.
• Ping-pong double buffer - the transfer runs in hardware (GRA-DMA + serializer), so disp_hwquad_start() kicks a frame and returns; the CPU renders the other buffer while one is in flight, and disp_hwquad_wait() blocks on TXC before the swap.

The whole display path was traced register-by-register out of the stock firmware (vela_ota.bin / vela_ap.bin, the best1503 image - not the best1306 SDK) and re-implemented from scratch. The bring-up started on a 1-lane RGB332 FIFO path and was later upgraded to the full Quad-SPI RGB565 mode.

Touch - Hynitron CST92xx

The capacitive touch controller is a Hynitron CST92xx at I²C address 0x5A, bit-banged on GPIO pins 6/7 with an interrupt line on pin 27. The touch report format (event byte, 12-bit packed X/Y, frame marker, ACK-to-refresh) was reverse-engineered and is read directly by the firmware.

The original BES hal_gpio rejects pins ≥ 38; the BEST1503 has many more GPIOs, so register-level GPIO/IOMUX helpers are used instead.

5. DOOM

A port of GBADoom (the doomhack GBA port lineage) lives in apps/doom/. It is gated behind the DOOM=1 build switch so the normal firmware build is unaffected.

What was done to make it run on the BEST1503:

• Self-contained engine - the engine sources were made independent of their original board SDK; a small glue layer (bes_glue.c, bes_compat.h, lcd.c) bridges DOOM to the BES HAL.
• Display - DOOM renders an 8 bpp palettised frame; lcd.c converts the active palette to the panel's RGB565 (full 16-bit colour) and writes it over the Quad-SPI path, running at ~36 FPS. The watch is held in landscape, so the 120 × 160 DOOM image is rotated 90° and scaled to 282 × 212 to fill the panel height, centred along the long axis with a control strip painted once at each end (arrow keys / function keys).
• Input - the touchscreen is mapped to DOOM: tap zones around the game image for movement/turn, the centre for fire, and on-screen buttons for use/menu.
• Timing - DOOM's 35 Hz tick is derived from the BES system timer; a once-per-second frame counter prints DOOM FPS: N straight to the trace UART (polled, since once DOOM owns the CPU the SDK's buffered trace never flushes).
• Memory - the two 212 × 520 RGB565 ping-pong buffers (220 KB each) sit at the bottom of SRAM, and DOOM gets its own dedicated 248 KB arena above them; the linker keeps the system stack/pool below the framebuffers when DOOM=1. The 256 KB GBA reciprocal lookup table was dropped in favour of the Cortex-M33 hardware divider, saving flash.
• The IWAD is embedded directly in flash and read in place (XIP).

6. Building

Requirements (Windows): MSYS2 make 4.4.1 and the arm-none-eabi GCC toolchain (10.3.x) on PATH. A GNUmakefile wrapper drives the SDK build.

# normal watch firmware (no DOOM)
make clean all  T=best1503 CHIP=best1503 DEBUG=1 MAGIC_NUM=1 LIBC_ROM=0 HW_SELFTEST=1

# firmware with DOOM (audio subsystem dropped to make room)
make clean all  T=best1503 CHIP=best1503 DEBUG=1 MAGIC_NUM=1 LIBC_ROM=0 HW_SELFTEST=1 DOOM=1

A bare make builds incrementally and flashes; clean is only run when you ask for it (a from-scratch build is slow). The output image is out/best1503/best1503.bin.

Key build switches (config/best1503/target.mk):

7. Memory & size

The DOOM build drops the entire audio stack (codecs, audio processing, media player, the audio apps and services) because the watch has no audio hardware. Combined with replacing the reciprocal table, this frees roughly 0.7 MB of flash - taking a build that overflowed the 4 MB part back down to ~89 % usage, leaving room for a full IWAD.

8. Flashing

Flashing is done over UART using a Python flasher (flasher/) and the SecondStage bootloader blob recovered from the leaked flasher tool. The single hardest part of this whole project was finding the flasher protocol and the Mi Band test pads / pinout - without the SecondStage .bin from Derek-Vencer/tws_earbuds there was no way in.

make flash PORT=COM9        # flash out/best1503/best1503.bin to a serial port

auto_test.py automates a power-cycle + flash + serial-log capture (it uses a Nordic PPK2 for power control); adjust the COM ports and baud at the top of the script to match your wiring. The debug/trace UART runs at 921600 baud.

⚠️ Flashing replaces the stock firmware. Make a full backup of the device flash first, and only do this if you understand the recovery path. This is unofficial, has no warranty, and can brick your device.

9. DOOM controls (touch)

The control zones are drawn on screen around the game image:

• Tap above / below / left / right of the image - move forward / back, turn left / right (hold to keep moving).
• Tap the centre (the game view) - fire.
• Top-left button - START (open / close menu, escape).
• Top-right button - USE (open doors, confirm menu, start a new game).

To start a game: tap START, then USE to select New Game and the skill.

10. Repository layout

MiBand10_SDK_BES2700IMP_BEST1503_DOOM/
├── platform/        ARM startup, HAL, the best1503 chip layer, main + bring-up
│   └── hal/best1503/plat_addr_map_best1503.h   corrected memory map
├── config/best1503/ target configuration, board pins, feature switches
├── scripts/link/    linker scripts (best1000_1306.lds.S + tail_section)
├── apps/            application modules
│   └── doom/        the GBADoom port + BES glue + embedded IWAD
├── services/        system services (BT host, storage, …)
├── bthost/          Bluetooth host stack
├── rtos/            RTX5 RTOS
├── flasher/         host-side UART flasher + SecondStage bootloader
├── lib/ utils/ thirdparty/  support libraries
├── GNUmakefile      build + flash wrapper
└── Makefile         the SDK build (driven by the wrapper)

11. Videos

Preview	Video
	Mi Band 8 DOOM port - an earlier DOOM port running on the Mi Band 8.
	Mi Band 9 teardown - teardown of the Mi Band 9, recorded while it was still in the "no hacking" state.
	Mi Band 10 teardown - teardown of the Mi Band 10, also recorded under the previous "no hacking" status, which this project now makes obsolete.

12. Sources & credits

• BEST1306 / BES2700IHC SDK leak - https://github.com/sprlightning/audio_prj_collections
• BES flasher tool + SecondStage bootloader blobs - https://github.com/Derek-Vencer/tws_earbuds
• GBADoom - the doomhack GBA DOOM port lineage.
• DOOM - id Software, released under the GPL.

The BEST1503-specific HAL, the display/touch bring-up, the corrected memory map, the flashing flow for the Mi Band, and the DOOM port were all developed here by reverse-engineering the stock firmware and adapting the leaked BEST1306 SDK.

13. Disclaimer

This is an independent, unofficial project. It is not affiliated with, endorsed by or supported by Xiaomi or Bestechnic. All trademarks belong to their respective owners. The leaked SDK and tools referenced above are linked for documentation only. Flashing custom firmware can permanently damage your device - proceed entirely at your own risk.
